Megger Time Domain Reflectometer, USB Interface, 2 ns Pulse Width, Lithium-ion Battery 1005-021

Free Delivery in India | Lowest Global Shipping Charges

Megger Time Domain Reflectometer, USB Interface, 2 ns Pulse Width, Lithium-ion Battery 1005-021

Name: Megger Time Domain Reflectometer, USB Interface, 2 ns Pulse Width, Lithium-ion Battery 1005-021
Brand: Megger
SKU: 268102
Price: 8127.11 USD
Availability: InStock



Category Time Domain Reflectometers Brand Megger Condition New

Specifications

Country of Origin	United Kingdom
Resolution	1 %
Accuracy	±1 %
Display Type	LCD
Brand	Megger
Battery Life	12h
Battery type	Lithium-ion
Height	55mm
Length	290mm
Model	1005-021
Gross Weight	1.7kg
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-15°C
Interfaces	USB connection to PC allowing upload and download of traces
Interface Type	USB
Standards/Approvals	BS EN 613261, EMC
Maximum Pulse Width	2 ns
Velocity Factor/Propagation Velocity	0.99
Bicotest T625 TDR Cable Fault Locator, 20000m, RS232C InterfaceBrand	Bicotest

Key Features

Dual channel and dual trace to locate faults on paired metallic cables.
Provides an accuracy of ±1 percent and a resolution of 1 percent.
Features USB interface for PC connectivity and trace upload/download.
Equipped with Lithium-ion battery offering 12 hours typical life.
Supports multiple output impedances with auto impedance matching.
Built-in power blocking filter enables use on power circuits up to 600 V CAT IV.
Backlit color LCD display with 800x480 resolution for easy reading.
Designed to operate between -15°C and 50°C.

Product Description

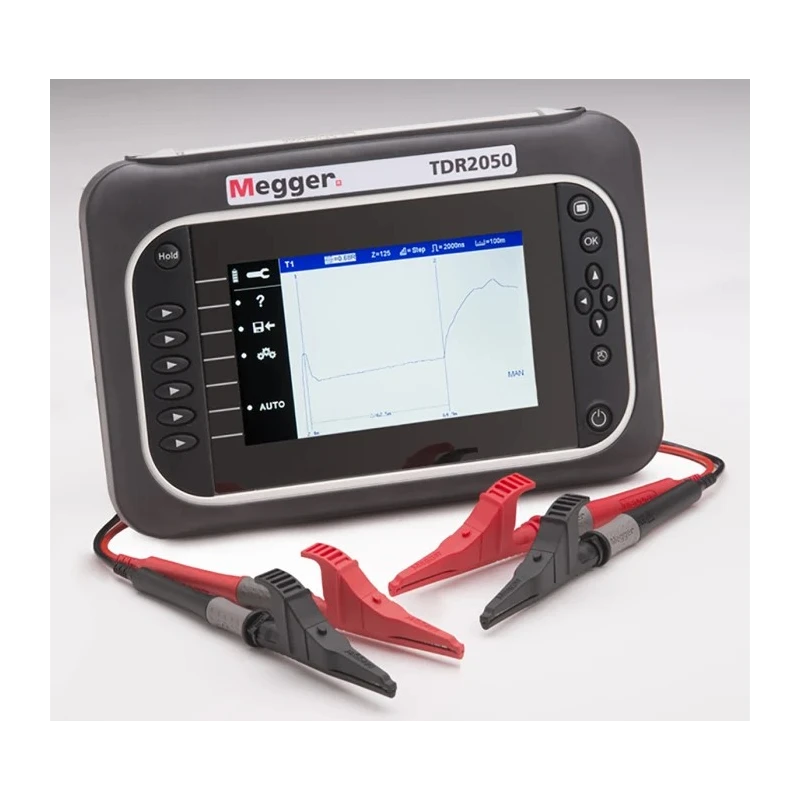

Megger 1005-021 Time Domain Reflectometer USB Interface is a precision instrument designed for fault location on paired metallic cables with a maximum pulse width of 2 ns, delivering an accuracy of ±1% and a resolution of 1%.

This advanced dual channel, dual trace TDR uses step and pulse selections and distance dependent gain along with trace tagging to provide detailed cable diagnostics. It supports various output impedances including 25, 50, 75, 100, 125, and 140 ohms with automatic impedance matching to adapt to different cable types.

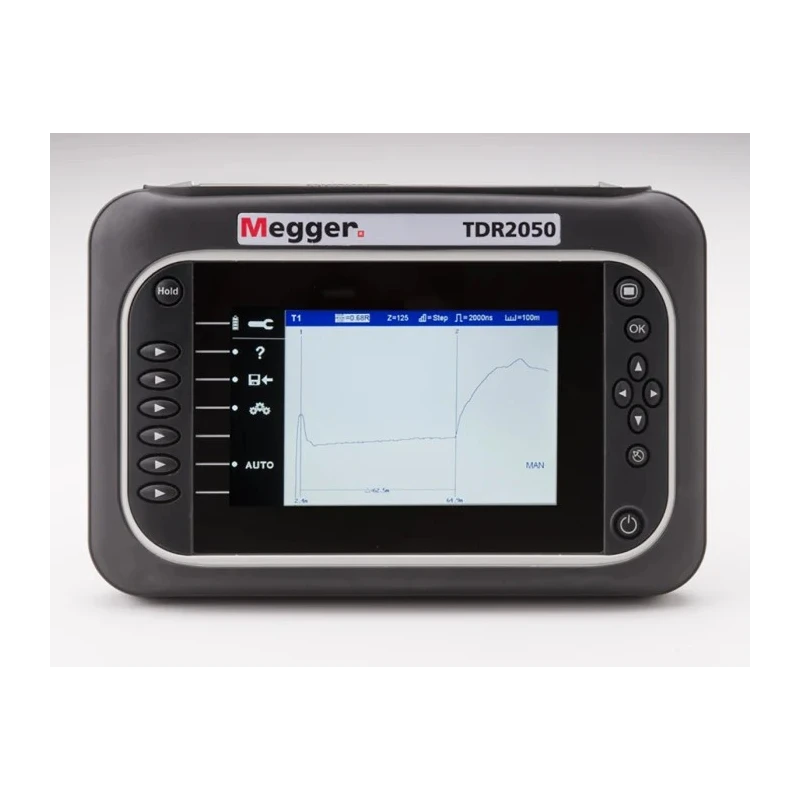

The device features a backlit graphics color LCD with 800 by 480-pixel resolution for clear visual feedback, as well as an USB interface allowing seamless trace upload and download to a PC.

Designed for field durability, the TDR2050 is suitable for use on power circuits up to 600 V CAT IV and includes a power blocking filter for added operational safety.

It operates effectively in extreme conditions with a battery life of approximately 12 hours supported by a Lithium-ion rechargeable battery, and operational temperatures ranging from -15°C to 50°C.

The supplied package contains the TDR2050 unit, a download kit, fused test lead set, carry case, user guide CD, and AC-DC charger, facilitating comprehensive use in industrial, telecommunications, electrical testing, and network maintenance applications.

Dual channel and dual trace functionality for fault location on paired metallic cables. High accuracy and resolution aiding precise diagnostics. USB interface allows trace upload/download for advanced analysis. Multiple output impedances with auto impedance matching.

Backlit graphics LCD ensures clear visualization of data. Suitable for power circuits with power blocking filter. Lithium-ion battery offers extended operating time. Wide operational temperature range supports diverse work environments.

Comprehensive accessory kit included ensuring user readiness.

Ideal for industrial, telecommunications, electrical, and network test and measurement applications. Explore related professional measuring instruments on EnvMart for advanced testing solutions.
