In Situ Vane Shear Tests 2000 kg
Specifications
| Country of Origin | India |
|---|---|
| Material | MS |
| Type | Torque applicator assembly Capacity 2000kg/cm2 with split proving ring & dial gauge 0.002 x 5mm complete with stand. |
| Applications | Industrial |
| ower | P420W |
Key Features
- High performance
Product Description

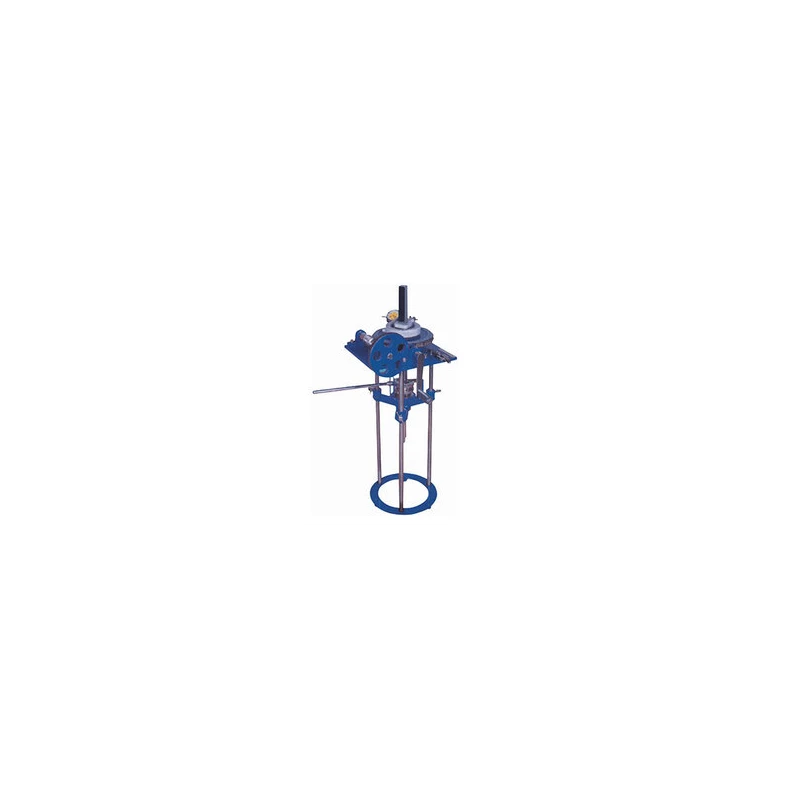

In Situ Vane Shear Tests Specification: The apparatus is designed for conducting in situ vane shear test from bottom of a bore hole in saturated cohesive deposits for determining their in place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base, a gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank, the torque ring is a split ring & deforms as torque is applied & the deformation is indicated by a dial gauge. A calibration chart to convert dial gauge readings to torque force in kgs/cm2 is supplied. A pointer is provided.
Contains:Vane ( with vane rod ) 37.5mm dia x 75mm high1 no. Vane ( with vane rod ) 50.0mm dia x 100mm high1 no. Torque rod ( square cross section) 0.6mts long1 no. Rods quick couplind type 1 mtr. long1 no. Rods quick coupling type 1 mtr. long1 no. Dummy rod corresponding to 37.5mm dia vane1 no. Dummy rod corresponding to 50.0mm dia vane1 no.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The torque applicator assembly has a capacity of 2000 kg/cm².
The equipment is constructed from mild steel (MS).
The kit includes two types of vanes: one with a diameter of 37.5 mm and height of 75 mm, and another with a diameter of 50.0 mm and height of 100 mm.
This model requires a power supply of 420W.
Torque is indicated by a dial gauge that measures the deformation of a split torque ring as torque is applied.
The calibration chart is used to convert dial gauge readings to torque force in kg/cm².
The equipment is manufactured in India.
It is designed for industrial applications, specifically for conducting in situ vane shear tests in saturated cohesive deposits.
The kit includes two quick coupling rods, each 1 meter long.
The kit contains a torque applicator assembly, two vanes, a torque rod, and dummy rods corresponding to each vane size.
Yes, the torque applicator assembly comes complete with a stand.
