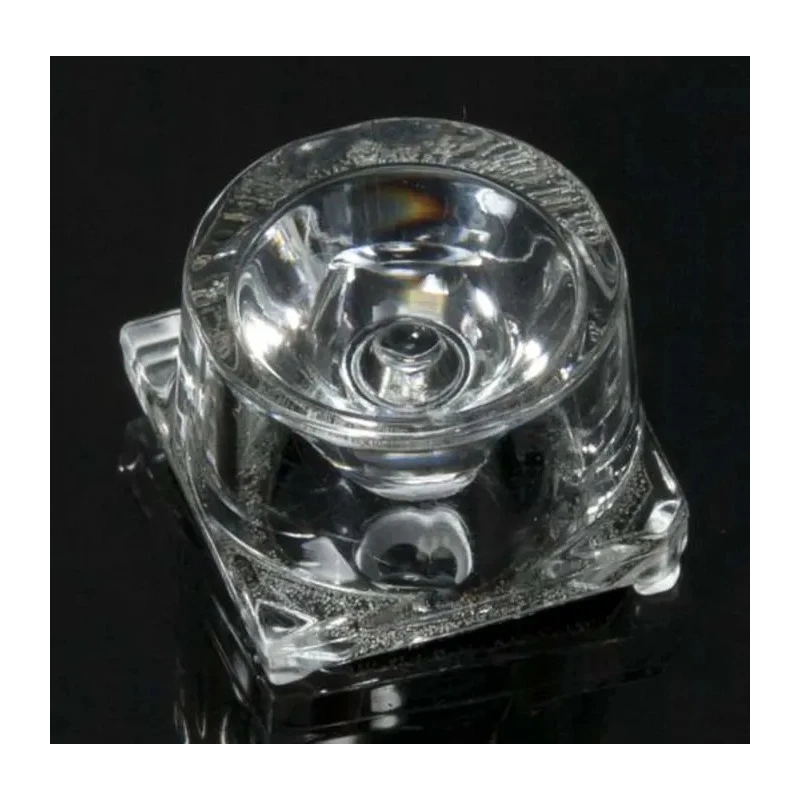

Ledil Veronica Series 1-Way LED Lens Square Beam 14 to 21 ° Viewing Angle Polymethyl Methacrylate CA14601_VERONICA-SQ-MINI-RS

Ledil CA14601_VERONICA-SQ-MINI-RS LED Lens from the Veronica Series is a 1-Way optical component designed to produce a controlled square beam with a viewing angle ranging between 14 to 21 degrees. Manufactured using high-quality polymethyl methacrylate (PMMA), this lens combines optical clarity with exceptional resistance to UV radiation and temperature variations.

Its compact dimensions of 13.9 mm length and width, coupled with a height of 8.86 mm, allow for sleek integration into LED lighting assemblies. The lens features a pin fixing method along with adhesive tape, facilitating straightforward and secure mounting on LED modules.

Engineered to operate with popular LED types including Cree XP-E2, OSRAM OSLON SSL 150 and 80, Lumileds LUXEON series, Samsung LH351Z, and others, this lens is versatile for numerous lighting applications. It serves as an optical element, structural holder, and sealing surface, suitable for both indoor and outdoor environments with up to IPx8 protection ratings.

The Veronica lenses are part of a wider LEDil product family designed to ensure uniform light distribution and to optimize beam shaping for single LED sources. This specific model, the SQ-MINI-RS, offers a smaller footprint for compact installations without compromising beam quality.

Constructed of optical grade polymethyl methacrylate (PMMA) material. Designed specifically for use with single LEDs such as Cree XP-E2 and OSRAM OSLON SSL series. Compact square lens style with dimensions 13.9 mm by 13.9 mm.

Optimized for indoor and outdoor applications with IP ratings up to IPx8. Simple installation using pin fixing and adhesive tape for a smaller footprint. Provides uniform and precise light beam shaping. High UV and temperature resistance ensuring durability.

Suitable for a variety of LED packages and beam emission patterns.

This lens is designed for use in industrial, commercial, and architectural lighting systems where precise beam control is critical. It supports LED lighting component manufacturing, electronic component assembly, and optoelectronics applications. For further exploration of LED Lenses and related components, browse the EnvMart catalog.
