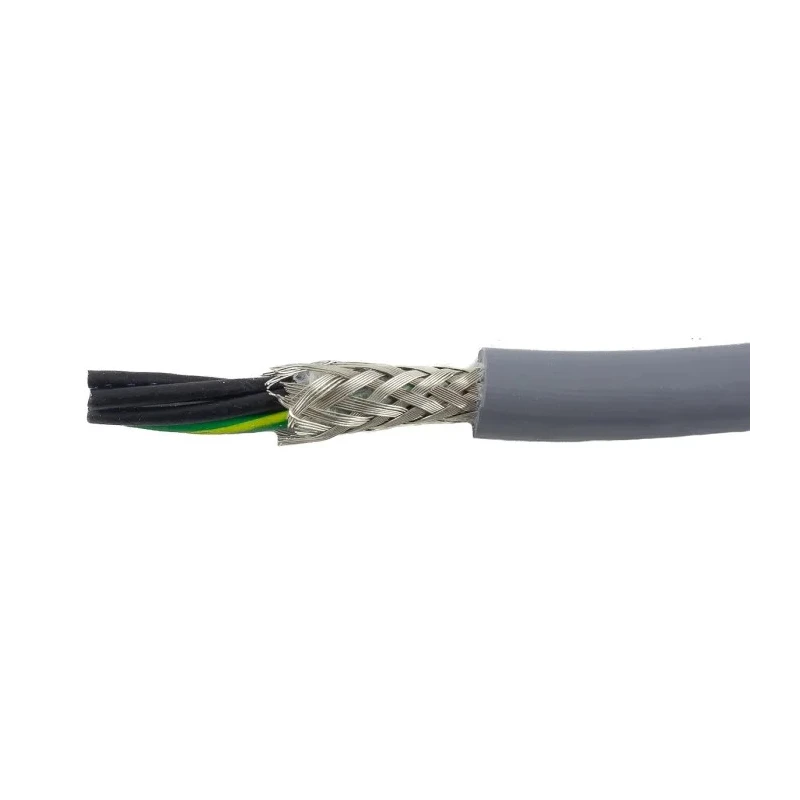

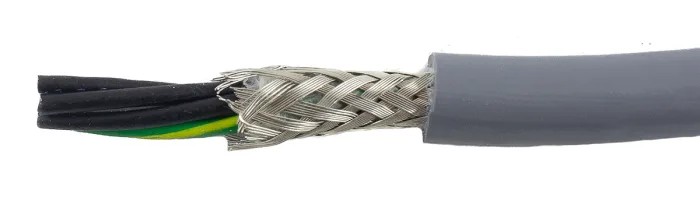

Alpha Wire Ecogen Ecoflex PUR Control Cable, 5 Cores, 0.78mm² 18 AWG, Screened, 30 m, Grey Modified 80135 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 80135 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecoflex PUR |
| Outside diameter | 6.78mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 5 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 41 |
| Core Strands | 41 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 0.78mm² |
Key Features
- The polyurethane jacket offers excellent abrasion, UV, and oil resistance.
- The cable operates in extreme temperatures from -50°C to 90°C.
- The screened design includes a tinned copper braid with 85% coverage for signal integrity.
- This halogen-free cable is lighter and thinner than comparable PVC cables.
- Suitable for machinery, robotics, automotive, and industrial applications.
- The cable conforms to CE, CSA, and UL standards.
- Its mPPE insulation delivers exceptional dielectric properties and reduced wall thickness.
Product Description
Alpha Wire 80135 SL005 Ecogen Ecoflex PUR Control Cable is designed for demanding industrial and automation applications, offering superior mechanical and environmental protection. This screened cable has 5 cores with finely stranded tinned copper conductors of 0.78mm² cross-sectional area, corresponding to 18 AWG, making it ideal for control and signal transmission.
The cable features a tough grey modified polyphenylene ether (mPPE) jacket combined with a polyurethane (PUR) outer sheath, which provides excellent resistance to abrasion, oils, ultraviolet light, and harsh environmental conditions. The halogen-free composition ensures low smoke and zero halogen emission in the event of fire, increasing workplace safety.
Capable of operating in temperatures from -50°C to 90°C, this cable tolerates extreme conditions in industrial machinery, robotics, automotive factories, medical equipment, mining, construction machinery, and agricultural equipment. Its tin-plated copper braid shielding offers 85% coverage, reducing electromagnetic interference and enhancing signal quality.

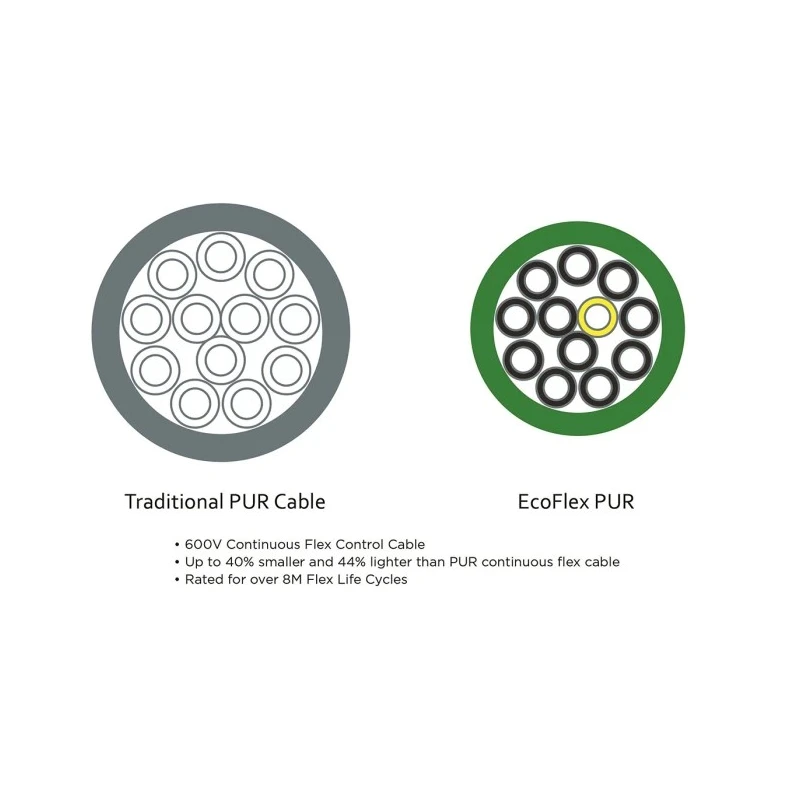

The modified polyphenylene ether insulation allows the cable to be smaller and lighter than equivalent PVC offerings while maintaining excellent dielectric properties. With 41 strands of 0.16mm diameter fine copper wire per core, it delivers flexibility and reliable performance.
The cable contains no halogens, making it environmentally friendly and 100% recyclable. The construction meets CE, CSA, and UL standards, ensuring compliance and quality assurance. Its grey color and black numbering system simplify installation and identification.
Designed specifically for control and automation use cases including assembly lines, robotic cells, and machine tools.
This 30-meter screened control cable supports a voltage rating up to 600V and combines modern materials and engineering to deliver reliable electrical performance for critical industrial and laboratory environments.
Explore more premium Control Cable options in the Wires & Cables section of EnvMart for diverse application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 90°C.
This model has a voltage rating of 600V.
The cable features 5 cores.
It has a jacket made of modified polyphenylene ether (mPPE) and features tinned copper wire conductors.
The cable length is 30 meters.
The American Wire Gauge rating of this cable is 18 AWG.
This model is screened with a tinned copper braid providing 85% coverage for signal integrity.
It conforms to CE, CSA, and UL standards.
The minimum operating temperature is -50°C.
This halogen-free cable is lighter and thinner than comparable PVC cables.
It is suitable for machinery, robotics, automotive, and industrial applications.
The outside diameter of this cable is 6.78 mm.
