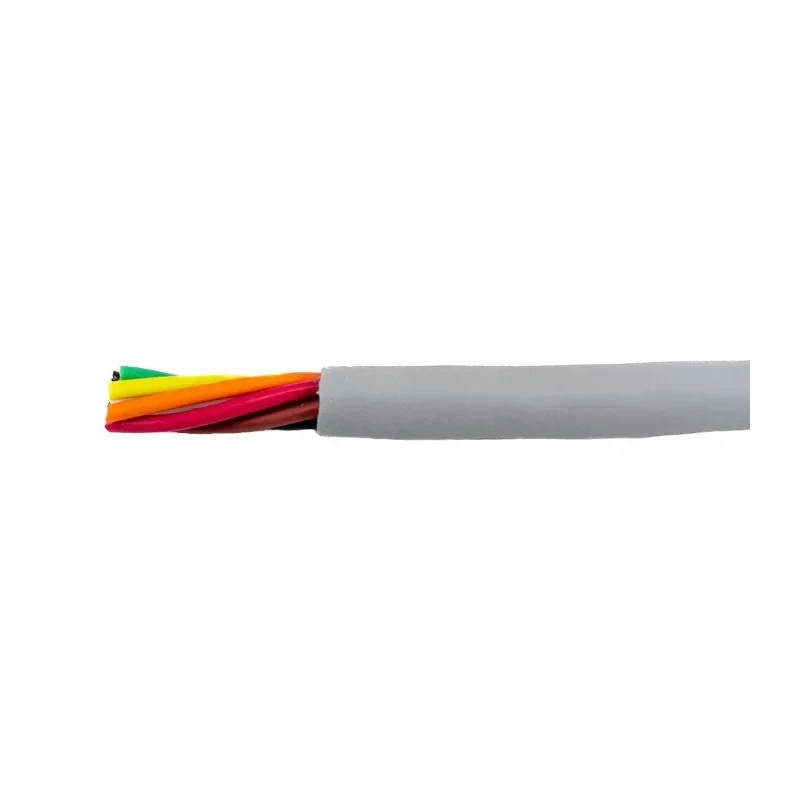

Alpha Wire Ecogen Ecocable Mini Control Cable 6 Cores 0.24mm² 24 AWG 300V Unscreened 30m Grey Modified 78026 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78026 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.86mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.152 inch (3.86 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CE, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.24mm² |
| Conductors | 6, Black, Brown, Red, Orange, Yellow, Green |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- The cable contains six tinned copper stranded conductors with black, brown, red, orange, yellow, and green insulation.
- It features a halogen-free modified polyphenylene ether (mPPE) jacket and insulation for enhanced environmental safety.
- The cable operates reliably in a temperature range from -40°C up to 80°C.
- The 24 AWG conductors are finely stranded, consisting of 19 strands each 0.127 mm in diameter for flexibility and durability.
- The nominal cable diameter is approximately 3.86 mm with a jacket thickness of about 0.38 mm.
- The EcoCable Mini cable is fully recyclable and exhibits low outgassing properties, making it environmentally friendly.
- This product complies with UL, CE, and CSA standards, providing reliable industrial-grade quality.
- It is suitable for a wide range of industrial, telecommunication, automation, and electronic circuit applications.
Product Description
Alpha Wire 78026 SL005 Ecogen Ecocable Mini control cable is a high-quality, 6-core, 0.24 mm² (24 AWG) unscreened cable rated for 300 volts, featuring a grey modified polyphenylene ether (mPPE) jacket and insulation. This 30-meter cable is designed to provide excellent performance in demanding industrial and electronic applications that require flexibility, durability, and environmental compliance.
The conductors are made from stranded tinned copper wire, each core insulated in distinct colors: black, brown, red, orange, yellow, and green. The stranded construction consists of 19 strands of 0.127 mm diameter, providing superior flexibility. The cable has a nominal diameter of 3.86 mm with a jacket thickness of 0.38 mm and insulation thickness of 0.18 mm, optimized for minimal bulk and maximum durability.
Constructed with zero halogen materials and complying with UL, CE, and CSA standards, this cable ensures safe operation even in areas where fire safety is critical. The mPPE jacket material contributes to low specific gravity and outgassing, making the cable lightweight and environmentally friendly. Operating temperature ranges from -40°C to 80°C, allowing reliable performance in extreme environments.
This EcoCable Mini series cable is fully recyclable and ideal for diverse applications such as communication circuits, automation systems, radio transmitters, and industrial machinery where NFPA 79 compliance is desired to safeguard operators and equipment from electrical hazards.
The cable features six tinned copper conductors for excellent conductivity and corrosion resistance. The grey mPPE jacket provides chemical and flame resistance along with mechanical protection. Its unshielded design facilitates use in applications where electromagnetic interference is minimal or controlled.
The cable's flexibility and thinner profile assist in installation in tight spaces and complex wiring harnesses. The product meets stringent international certifications including UL AWM 21460 and CSA I A/B FT1. Suitable for industrial automation, electronic equipment wiring, and control panel installations.
This Alpha Wire product is an ideal choice for professionals requiring a reliable, eco-friendly, and safety-certified Control Cable. Browse the Electronics & Electricals category at EnvMart for compatible cables and accessories from Alpha Wire and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 300 volts, making it suitable for various industrial applications.
It can operate reliably at temperatures up to 80°C, allowing it to function in demanding environments.
This control cable features six cores, each with distinct color insulation for easy identification.
The conductors are made from stranded tinned copper wire, which provides excellent conductivity and corrosion resistance.
The nominal diameter of the cable is approximately 3.86 mm, facilitating installation in tight spaces.
This model is unscreened, making it suitable for applications where electromagnetic interference is minimal or controlled.
The jacket is made from modified polyphenylene ether (mPPE), which is halogen-free, while the insulation thickness is 0.18 mm.
The jacket thickness of this cable is approximately 0.38 mm, contributing to its flexibility and durability.
This product complies with UL, CE, and CSA standards, ensuring it meets international safety and performance criteria.
The cable can operate at temperatures as low as -40°C, allowing for reliable performance in extreme conditions.
The flexibility is achieved through its stranded construction, which consists of 19 strands of 0.127 mm diameter per conductor.
It is suitable for a wide range of applications, including industrial automation, electronic equipment wiring, and control panel installations.
