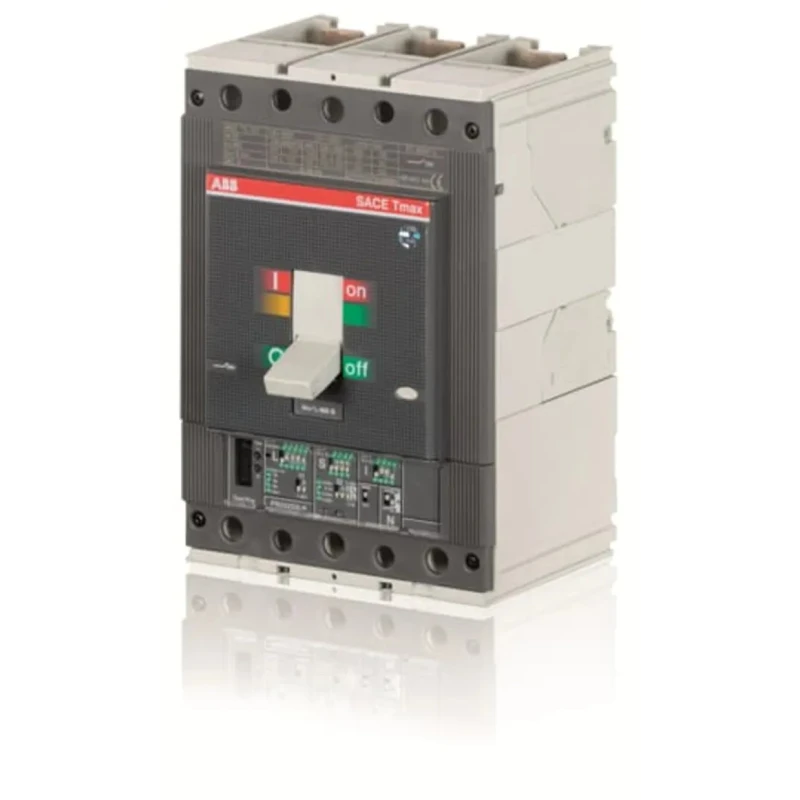

ABB Tmax Molded Case Circuit Breaker 3-Pole 400A Breaking Capacity 70 kA Fixed Mount 1SDA054323R1 T5N400 FF PR222-LSIG 400A
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax |
| Brand | ABB |
| Height | 205mm |
| Model | 1SDA054323R1 T5N400 FF PR222-LSIG 400A |
| Depth | 103.5mm |
| Width | 140mm |
| Mount Type | Fixed |
| Current Rating | 400A |
| Series | 1SDA05 |
| Terminal type | Fixed |
| Breaking Capacity | 70kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, IEC, RoHS |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Solid State |
| Reset Actuator Type | Lever |
| Rated Operational Voltage | 690 V AC |
| Rated current (In) | main circuit 400 A In |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated insulation voltage (Ui) | 1000 V |
Key Features
- This molded case circuit breaker has a solid state tripping mechanism for fast and precise protection.
- It features front fixed terminals enhancing ease of installation and maintenance.
- The product measures 140mm in width, 205mm in height, and 103.5mm in depth.
- Rated impulse withstand voltage is 8 kV, ensuring robustness against surges.
- The insulation voltage rating of 1000 V supports high operational durability.
- Designed for industrial electrical applications requiring 3-pole protection and 400A current rating.
- Manufactured in Italy with compliance to CE, IEC, and RoHS standards.
Product Description
ABB 1SDA054323R1 T5N400 FF PR222-LSIG 400A Molded Case Circuit Breaker is a 3-pole fixed mount device with a current rating of 400 A and designed for a rated operational voltage of 690 V AC. It comes equipped with a lever type reset actuator and a solid state tripping mechanism ensuring reliable trip performance and operational safety.
This model, part of the Tmax range and series 1SDA05, has front fixed terminals allowing straightforward electrical connections. The breaker dimensions are 140mm width, 205mm height, and 103.5mm depth, suitable for various industrial switchgear configurations.
Its breaking capacity of 70 kA ensures it can safely interrupt high fault currents, meeting rigorous requirements of industrial, manufacturing, electrical distribution, and automation applications. Rated impulse withstand voltage is 8 kV while the rated insulation voltage stands at 1000 V, highlighting its capability to operate reliably under stressful conditions.
Manufactured in Italy, this circuit breaker complies with international standards including CE, IEC, and RoHS ensuring quality and environmental safety compliance.
The solid state tripping mechanism with PR222DS/P-LSIG release type enables precise trip settings and enhanced protection for downstream circuits. Its fixed mount type design makes it ideal for integration within fixed electrical panels and switchboards in industrial and commercial settings.
This Molded Case Circuit Breaker offers high breaking capacity and current rating for enhanced electrical protection. Fixed front terminals facilitate secure and stable connections. Compliance with CE, IEC, and RoHS standards ensures industrial reliability and environmental adherence.
Compact dimensions enable flexible installation in various electrical setups. Designed for demanding industrial, manufacturing, and automation applications. Explore EnvMart’s comprehensive range of circuit breakers for industrial and commercial electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this molded case circuit breaker is 70 kA, allowing it to safely interrupt high fault currents.
This model has a current rating of 400 A, making it suitable for various industrial electrical applications.
The dimensions of this circuit breaker are 140 mm in width, 205 mm in height, and 103.5 mm in depth.
It features a solid state tripping mechanism, ensuring fast and precise protection.
The rated operational voltage for this molded case circuit breaker is 690 V AC.
This model complies with CE, IEC, and RoHS standards, ensuring quality and environmental safety.
It is equipped with fixed front terminals, which enhance ease of installation and maintenance.
The rated insulation voltage of this unit is 1000 V, supporting high operational durability.
This circuit breaker has 3 poles, designed for 3-pole protection in electrical systems.
The reset actuator type for this molded case circuit breaker is a lever type, facilitating easy resetting.
This model is manufactured in Italy, ensuring adherence to high manufacturing standards.
It is designed for demanding industrial, manufacturing, and automation applications requiring reliable electrical protection.
