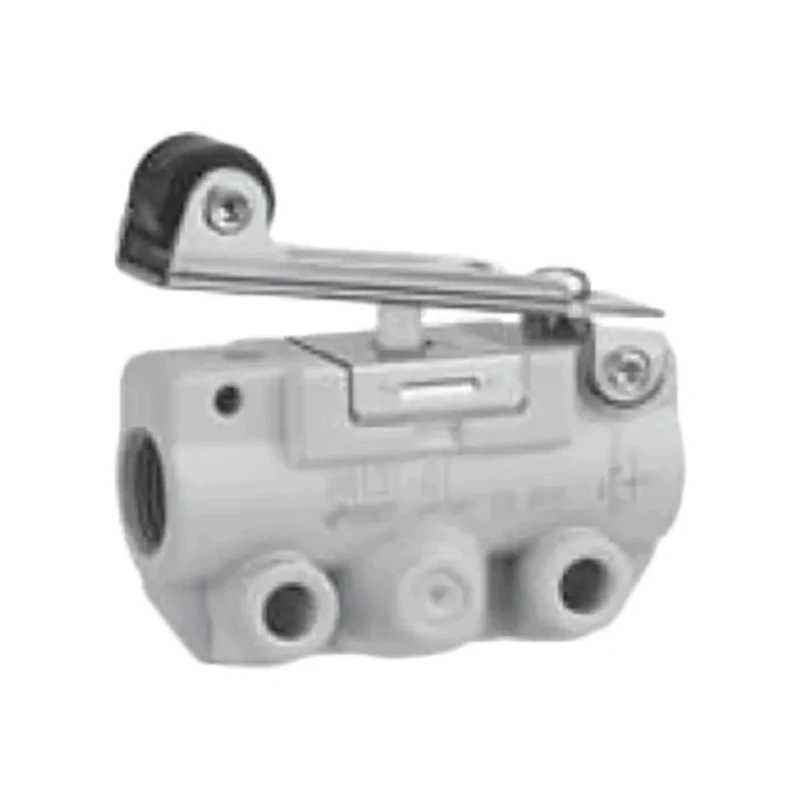

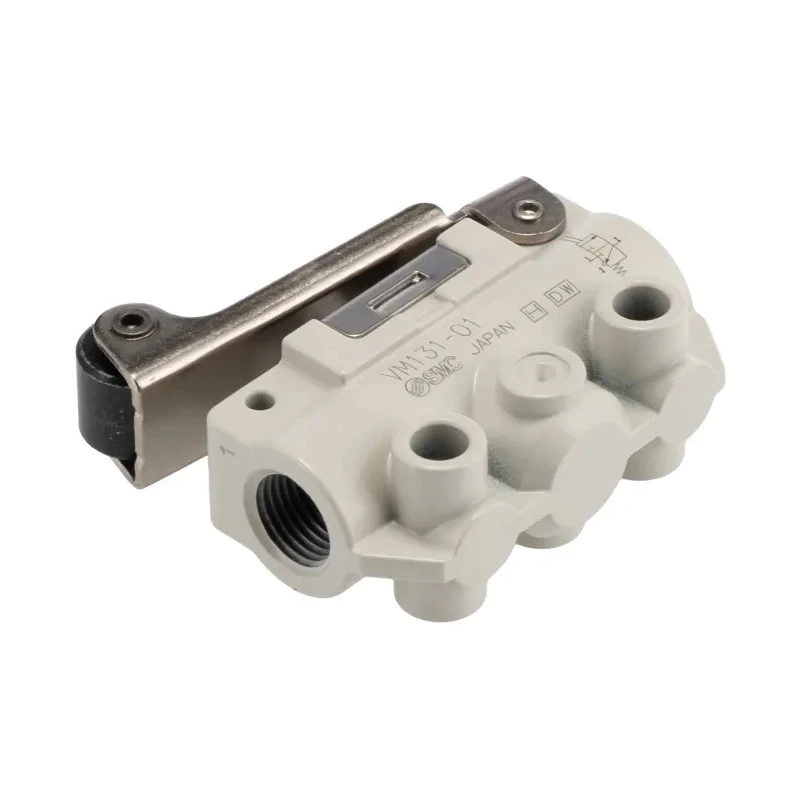

SMC Roller Lever Mechanical Valve 3/2 Way, Zinc Die Cast Alloy Body, Rc and NPT R 1/8 Port Size, 1 Mpa Pressure VM100

SMC VM131-01-01SA Roller Lever Mechanical Valve is part of the VM100 series, designed for precise pneumatic system control. This 3/2 way mechanical valve features a robust Zinc Die Cast Alloy body that offers high rigidity and dimensional stability while remaining lightweight. The valve includes Rc and NPT R 1/8 threaded side ports, making it compatible with both imperial and BSPP-style fittings without the need for adaptors.

Ideal for industrial automation and machinery applications, it supports a maximum operating pressure of 1 Mpa and a flow rate of 144L/min, facilitating efficient actuator cycling. The valve operates reliably within a temperature range of -5°C to +60°C, suitable for typical factory environments.

The roller lever actuator, constructed from hard steel, enables simple mechanical triggering and is equipped with a mechanical spring return to ensure consistent valve reset after each actuation. The actuator can be fitted with control buttons in multiple colours including green, red, yellow, and black to provide visual identification of control points.

This valve is particularly suitable for small pneumatic cylinders, actuators, machine tool air control panels, pick-and-place automation fixtures, and safety interlocks requiring mechanical actuation. Its compact size (44mm length, 42.6mm height, 17mm width) makes it ideal for use in valve manifolds and compact pneumatic assemblies.

The Zinc Die Cast Alloy body ensures durability by resisting mechanical stress in demanding industrial applications while maintaining light weight for easy installation. Its side port configuration simplifies integration into pneumatic circuits.

Operates as a 3/2 Way valve for directional control in pneumatic systems. Zinc Die Cast Alloy body delivers strength and stability with lightweight construction. Side ports with Rc and NPT standard threads at R 1/8 size for broad compatibility.

Maximum operating pressure of 1 Mpa and flow rate of 144L/min for efficient system performance. Temperature operating range from -5°C to +60°C for versatile environmental adaptability. Compact dimensions fit easily into various pneumatic assemblies and manifolds.

Hard steel roller lever actuator with mechanical spring return for reliable valve operation. Multi-coloured control buttons for clear visual signalling of control points. Applications include pneumatic actuator control, safety interlocks, and industrial automation.

SMC is a trusted brand widely recognized for its high-quality pneumatic components. This VM100 Series valve is a dependable choice for industrial valves and automation systems. Explore more SMC pneumatic control valves and related products in the Industrial Supplies category at EnvMart.
