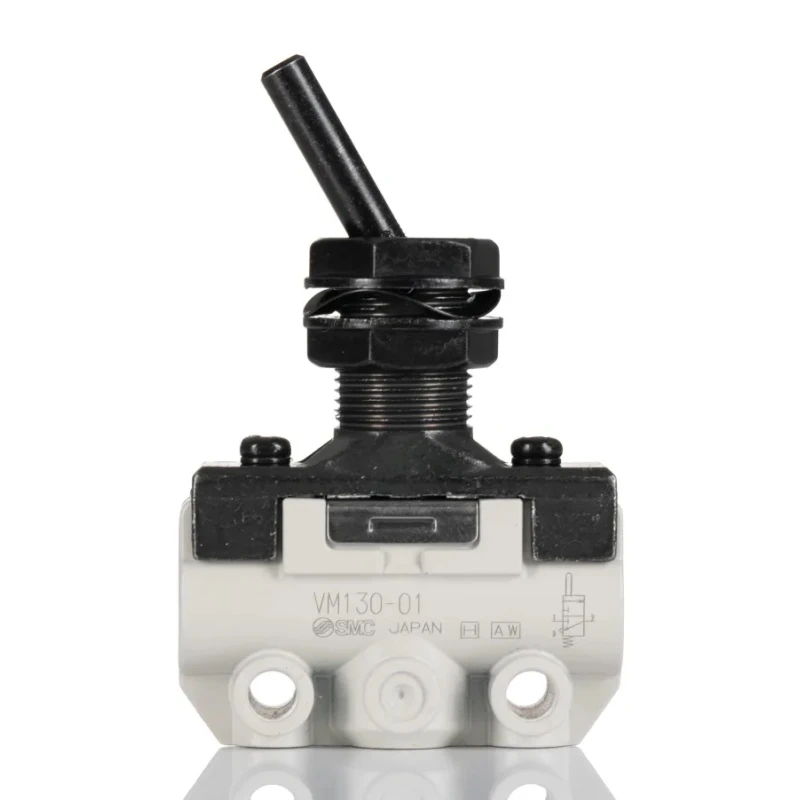

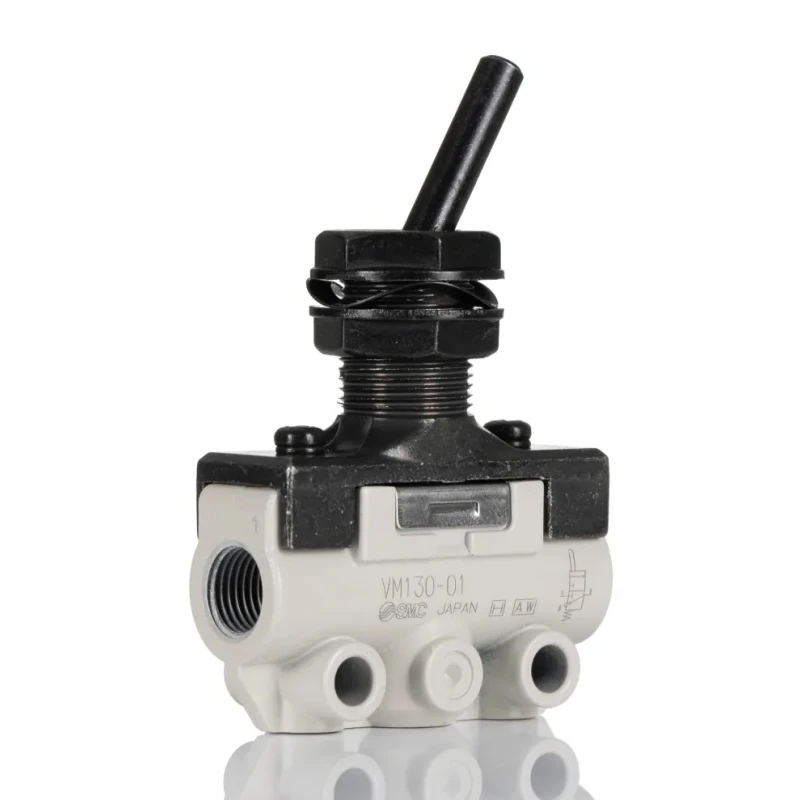

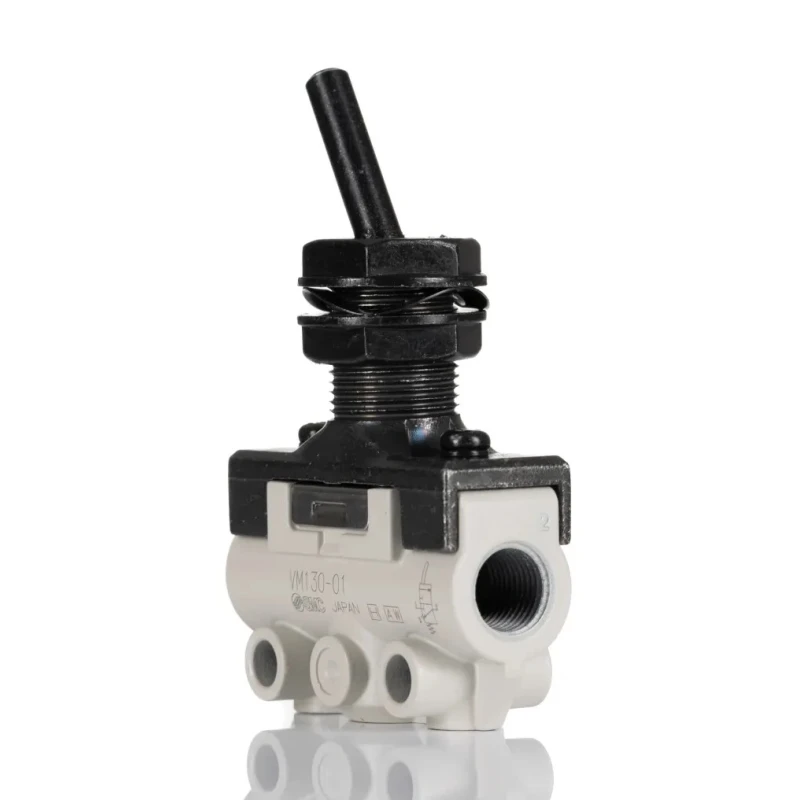

SMC Toggle Lever Pneumatic Manual Control Valve , NPT Rc R 1/8, 1 Mpa Pressure, Zinc Die Cast Alloy Body, VM100 VM130-01-08A

Free Delivery in India | Lowest Global Shipping Charges

SMC Toggle Lever Pneumatic Manual Control Valve , NPT Rc R 1/8, 1 Mpa Pressure, Zinc Die Cast Alloy Body, VM100 VM130-01-08A



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Zinc Die Cast Alloy
Maximum Operating Pressure	1 Mpa
Height	67.7mm
Length	44mm
Model	VM130-01-08A
Width	17mm
Series	VM100
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/8
Number of Positions	2
Port Size	R 1/8
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Toggle Lever
Connection Thread Standard	NPT, Rc
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Red, Green, Black, Yellow
SMC Toggle Lever Mechanical Valve VM400 Series, Rc Rc 1/8, III BBrand	SMC

Key Features

The toggle lever control mechanism enables easy manual operation.
It features a 3-port configuration with R 1/8 NPT and Rc connection threads.
The valve supports a maximum operating pressure of 1 Mpa and flow rate of 1088 L/min.
Constructed from zinc die cast alloy, it offers durability and corrosion resistance.
Operational temperature ranges between -5°C and +60°C for versatile environmental use.
Equipped with a mechanical spring return for efficient valve operation.
Valve function acts as a pneumatic relay, allowing effective switching.
Suitable for automation and pneumatic systems requiring manual actuation.

Product Description

The SMC VM130-01-08A pneumatic manual control valve is part of the VM100 series engineered to deliver precise control of air and inert gases within industrial environments. It utilizes a toggle lever mechanism, providing straightforward manual actuation essential in automation and pneumatic systems requiring reliable directional control.

Designed with a robust zinc die cast alloy body, this valve withstands operational pressures up to 1 Mpa and supports a high flow rate of 1088 L/min. Its 3-port configuration and R 1/8 connection threads (NPT, Rc standard) ensure compatibility with standard pneumatic installations.

The valve maintains stable performance over a temperature range of -5°C to +60°C, and includes a mechanical spring return system for rapid reversion to the default position, thus enhancing operational efficiency.

Its compact size, with dimensions measuring 67.7 mm in height, 44 mm in length, and 17 mm in width, allows flexible mounting in constrained spaces. The valve functions effectively as a pneumatic relay facilitating quick directional changes, making it suitable for various industrial automation tasks and control applications involving air or inert gases.

The toggle lever enables manual valve actuation with tactile feedback. Three ports enable diverse pneumatic flow paths. High durability with zinc die cast alloy construction. Suitable for environments with variable temperatures from -5°C to +60°C.

Efficient mechanical spring return for quick valve position reset. Compact form factor ideal for limited space installations. Supports air and inert gas applications in pneumatic systems. Reliably controls flow up to 1088 L/min at 1 Mpa.

This valve is primarily used in industrial automation, pneumatic control assemblies, and mechanical systems requiring manual directional control. It serves applications in manufacturing, fluid power controls, and general pneumatic system regulation, providing robust and user-friendly operation.
