SMC Push Pull Mechanical Valve Series, NPT Rc R 1/8 Thread Size, 3/2 Way Function, 1 Mpa Pressure, Zinc Die Cast Alloy VM100

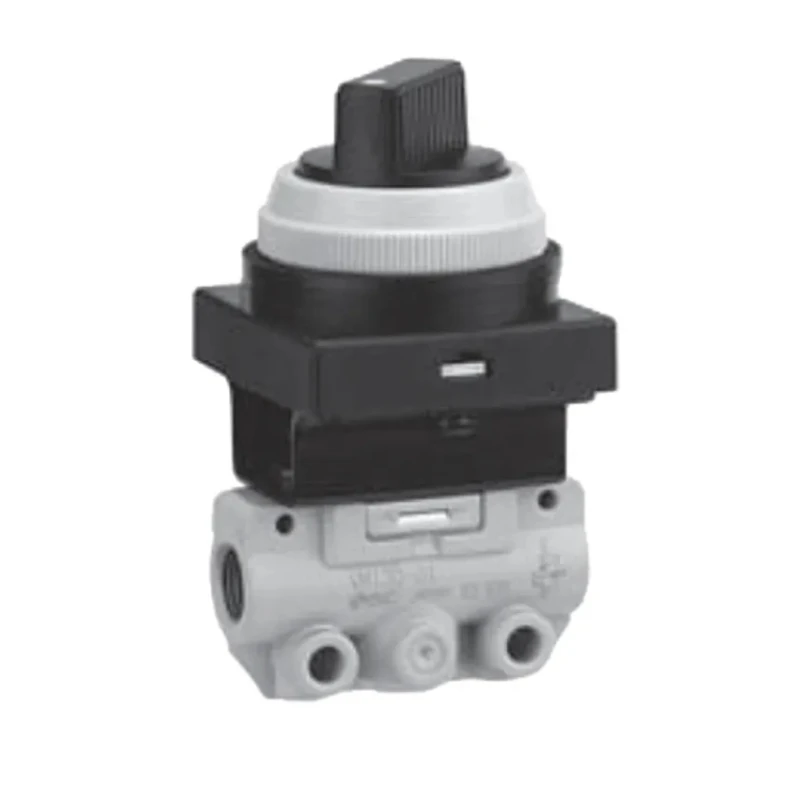

SMC VM130-01-34GA Push Pull Mechanical Valve VM100 Series is a 3-port, 2-position mechanical valve designed for pneumatic and inert gas control applications. With R 1/8 thread size and compatibility with NPT and Rc connections, it is engineered for mechanical, fluid power, and pneumatic systems requiring manual directional control.

The valve body is constructed from zinc die cast alloy, providing excellent corrosion resistance and durability for industrial environments. It operates efficiently under maximum pressure of 1 Mpa and flow rates up to 144 L/min, with a broad temperature range from -5°C to +60°C, suitable for varied ambient conditions.

The control mechanism combines a push-pull green button with a twist-selector manual actuator and detent feature, enabling precise and reliable operation. The valve’s spool is mechanically returned to its default exhaust position by a spring, ensuring downstream lines depressurize when not actuated, enhancing safety in pneumatic circuits.

Applications include machine tool air pilot control, pneumatic clamping and fixture circuits, automated packaging valve stations, and test benches requiring manual exhaust control. Its compact side-port installation design fits well in tight assemblies and maintenance replacements, emphasizing flexibility and ease of integration.

Maximum flow of 144 L/min delivers effective actuation response. Rated for pressures up to 1 Mpa supporting high pressure pneumatic systems. Operating temperature range of -5°C to +60°C for diverse industrial environments.

Zinc die cast alloy body ensures corrosion resistance and mechanical strength. Compatible with NPT and Rc R 1/8 thread standards for versatile connection options. Manual push-pull green control button with twist-selector actuator for intuitive use.

Mechanical spring return for spool reset provides reliable valve positioning. Manufactured in Japan, assuring quality and consistency.

This mechanical valve is well suited to industrial, manufacturing, and laboratory pneumatic applications where manual mechanical actuation is required. It is part of SMC’s VM100 Series, known for compact sizing and robust control capabilities within fluid power and pneumatic tooling environments.

For users browsing pneumatic valve solutions at EnvMart, this SMC push pull mechanical valve offers a dependable option in the VM100 series lineup, delivering quality, precise control, and compatibility with common pneumatic fittings.
