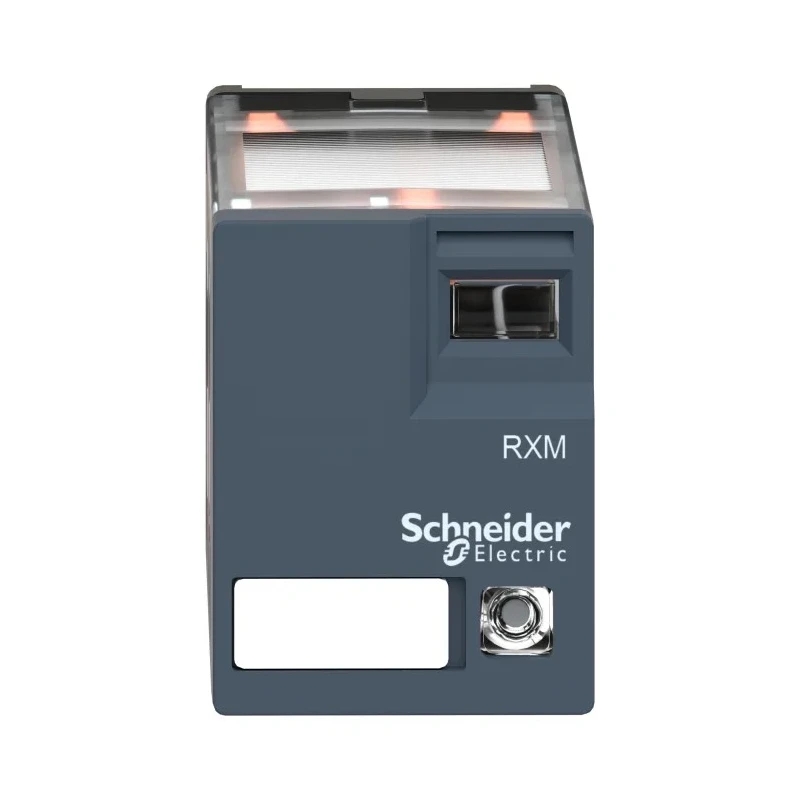

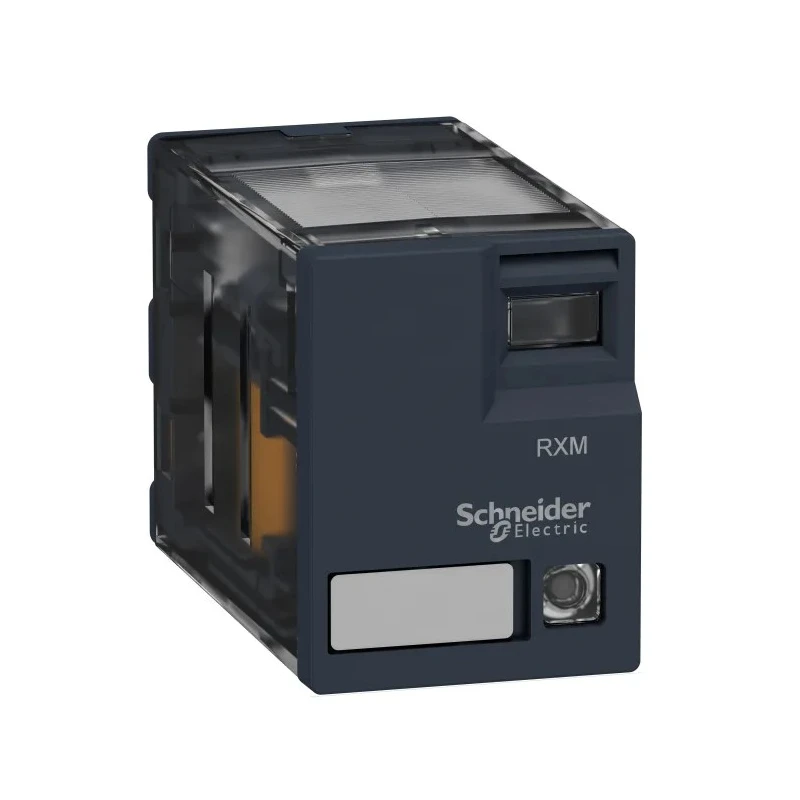

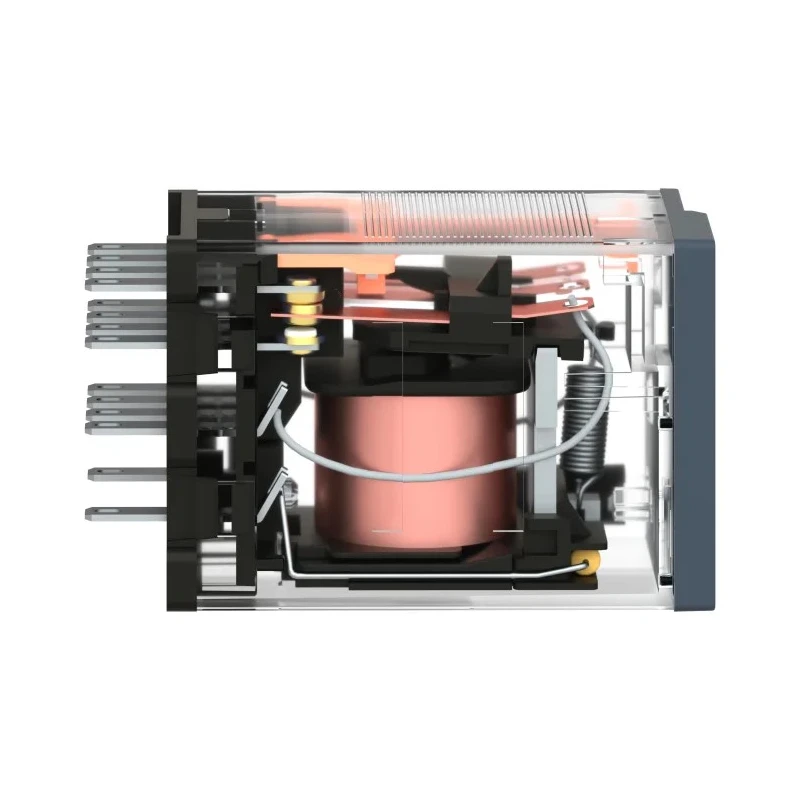

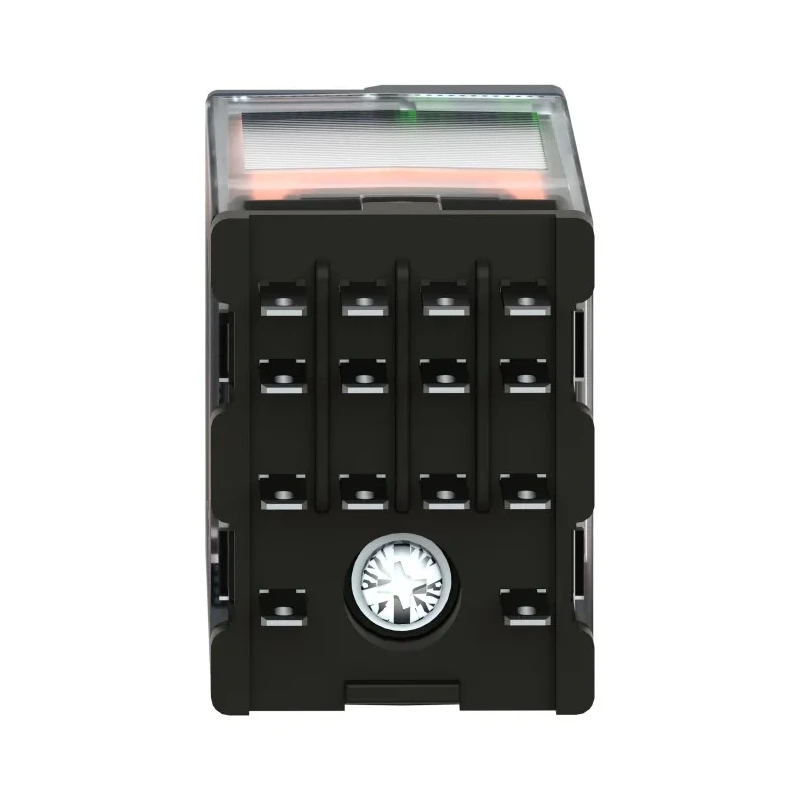

Schneider Electric Power Relay 24V dc Coil 8A Switching Current 4PDT RXM4AB3BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM4AB3BD |
| Width | 40mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- Compact miniature relay from the Harmony Relay RXM series with plug-in terminal type.
- Capable of switching up to 28V DC and 250V AC voltages.
- Operates reliably between -40°C and 55°C operating temperature range.
- Coil resistance of 650 Ohms with coil power rating of 900mW.
- Constructed with durable silver alloy contact material for enhanced conductivity.
- Includes mechanical indicator and test button for easy status verification.
- Designed for easy installation and programming in industrial electrical enclosures.
- Made in China and approved to CSA and CE standards.
Product Description
Schneider Electric RXM4AB3BD Power Relay is a compact, high-performance miniature relay from the Harmony Relay RXM series featuring a 24V DC coil and 8A switching current with a 4PDT contact configuration. This plug-in relay offers reliable switching capabilities for both DC and AC circuits, supporting switching voltages of up to 28V DC and 250V AC, making it suitable for a wide range of control and automation applications.
This relay is designed to operate effectively in demanding industrial environments with an operating temperature range from -40°C to 55°C. The coil has a resistance of 650 Ohms and consumes 900mW power, ensuring energy-efficient operation. The contact material is made of silver alloy, providing excellent conductivity and long service life.
Its compact dimensions of 21mm length, 40mm width, and 27mm height allow it to fit in tight control panels and electrical enclosures. The relay is equipped with a mechanical status indicator and a test button to easily verify the operational status, aiding in troubleshooting and maintenance.
This non-latching relay type operates by switching positions from normally closed to normally open with coil activation, making it ideal for push-button applications such as keyboards and micro-controller inputs in industrial automation, building controls, and HVAC systems.
Compact design for integration into industrial electrical enclosures. Robust coil and contact construction for reliable switching performance. Ease of installation with plug-in terminal type. Mechanical indicator and test button enhances monitoring and diagnostics.
Wide operating temperature range suitable for harsh environments. Compliance with CSA and CE standards ensures high quality and safety.
Schneider Electric RXM4AB3BD Power Relay is ideal for industrial control, automation systems, manufacturing processes, and HVAC equipment requiring dependable electromechanical relay switching. It supports installations requiring durability, compact size, and clear status indication, facilitating efficient system integration and maintenance.
Explore more high-quality Power Relays and automation components from Schneider Electric on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current of 8A, allowing it to effectively manage various electrical loads.
The RXM4AB3BD operates with a coil voltage of 24V DC, making it suitable for various control applications.
It features a 4PDT (4 Pole Double Throw) contact configuration, providing versatile switching options.
The relay operates effectively within a temperature range of -40°C to 55°C, suitable for harsh environments.
The coil resistance is 650 Ohms, which contributes to its energy-efficient operation.
It has compact dimensions of 21mm in length, 40mm in width, and 27mm in height, facilitating installation in tight spaces.
This model can switch voltages of up to 28V DC and 250V AC, making it versatile for different applications.
The contacts are made of silver alloy, which enhances conductivity and contributes to the relay's performance.
Yes, it includes a mechanical indicator and a test button for easy status verification, aiding in troubleshooting.
The RXM4AB3BD is approved to CSA and CE standards, ensuring its quality and safety for industrial use.
It features a plug-in terminal type, which simplifies installation and connection in electrical enclosures.
This power relay is suitable for control and automation applications, including HVAC systems and industrial control processes.
