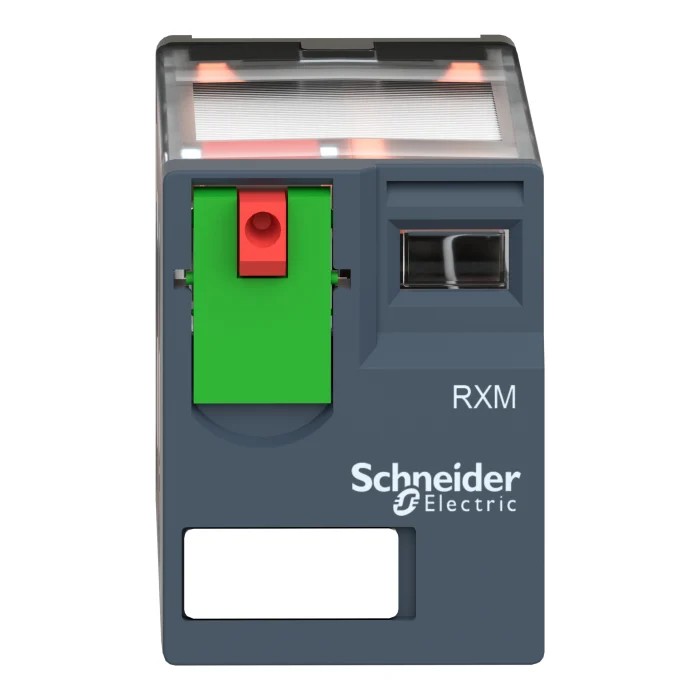

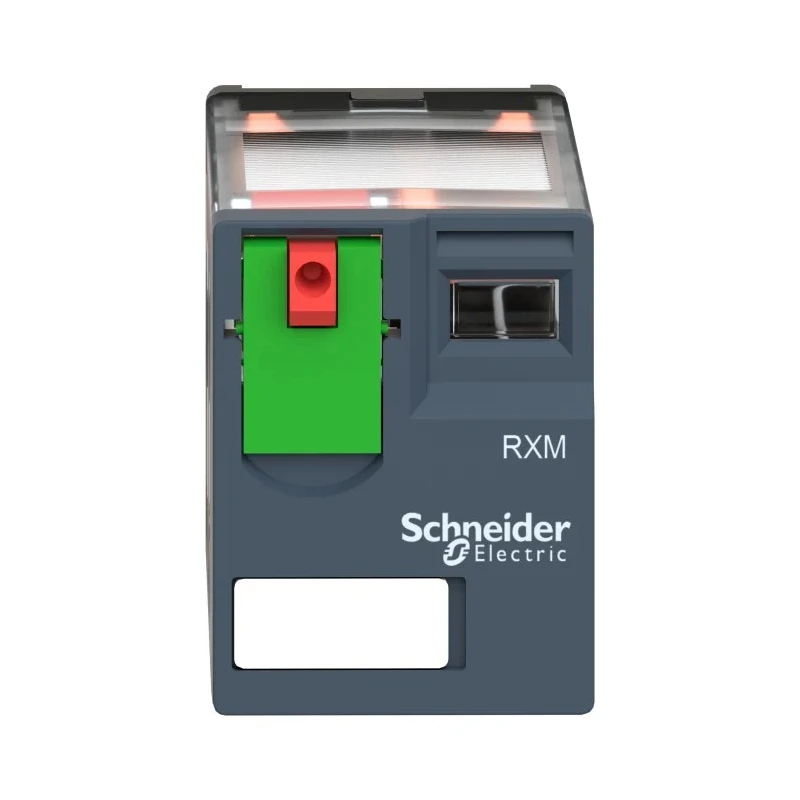

Schneider Electric Power Relay 48V AC Coil 10A Switching Current 3PDT Harmony RXM RXM3AB1E7

Schneider Electric RXM3AB1E7 Power Relay is a high-performance miniature plug-in relay designed for advanced industrial and automation control systems. Featuring a coil voltage of 48V AC and triple pole double throw (3PDT) contact configuration, it supports a switching current of 10A, making it suitable for heavy duty switching tasks.

The compact Harmony RXM relay series offers space-saving solutions with reliable electrical performance. With dimensions of 21mm length, 47.7mm width, and 27mm height, this relay is ideal for use in applications with limited enclosure space.

The relay coil consumes only 1.2W of power with a coil resistance of 710Ω, ensuring energy efficiency. It operates safely within a temperature range of -40°C to 55°C, making it suitable for harsh industrial environments.

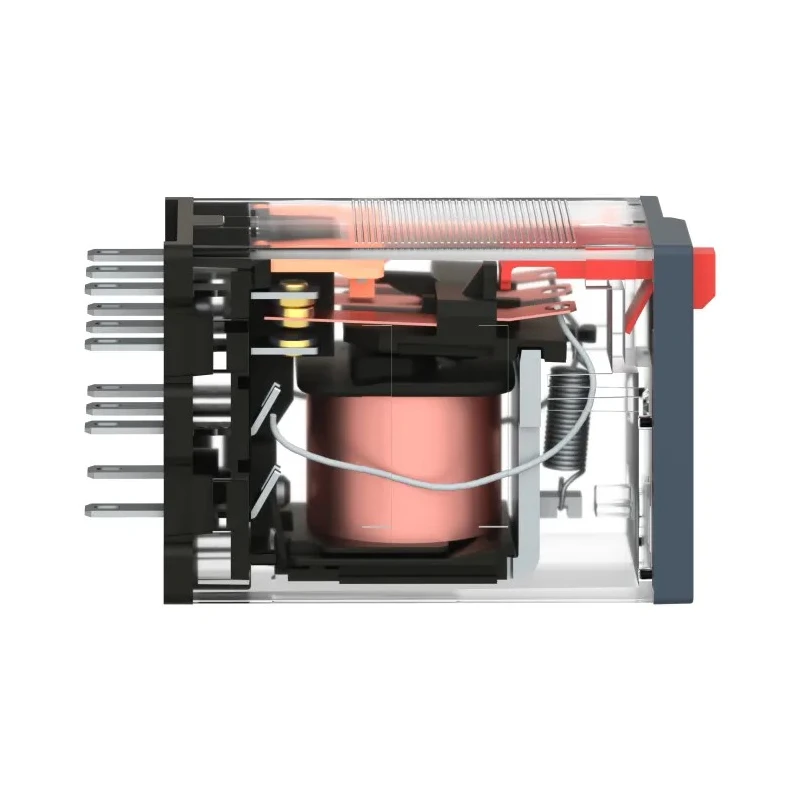

Equipped with silver alloy contacts, the relay ensures low contact resistance and long service life. The plug-in terminal type allows for easy mounting and replacement without disrupting wiring setups. Additionally, the transparent IP40 rated cover allows operators to visually inspect contact status for maintenance and troubleshooting.

Conforming to international standards CSA and CE, this relay guarantees safety and reliability in diverse applications including industrial automation, building equipment, HVAC systems, and electrical panels. The product is a green premium item meeting RoHS and REACH directives, emphasizing environmental responsibility.

RXM3AB1E7 is part of the Harmony RXM miniature relay series, supporting multiple contact configurations and high switching powers, enhancing the flexibility of automation circuits and programmable logic controller (PLC) systems.

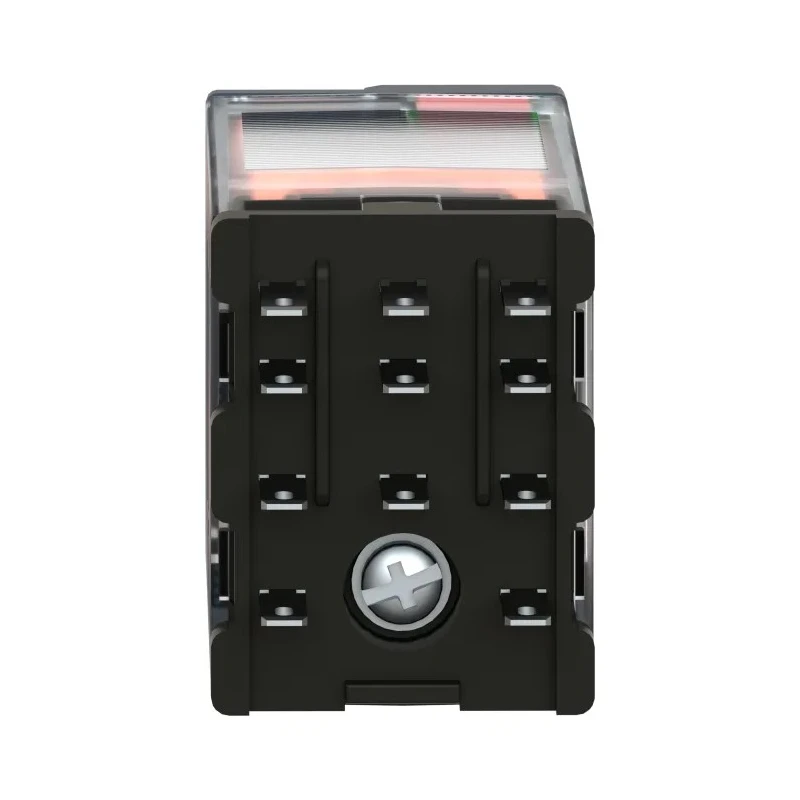

Each relay is manufactured in China following stringent quality controls. The product is sold individually and is compatible with RXZE sockets (sold separately) for reliable plug-in installation. Additional accessories like plastic or metal clamps for vibration protection, protection modules, and marking legends are available to complement the relay usage.

Industrial applications include machine manufacturing, electrical control panels, industrial automation systems, HVAC control, and commercial electrical installations demanding robust and compact relay solutions.

Explore Schneider Electric products and Power Relays at EnvMart for top-quality industrial electrical components. Designed for industrial and automation applications requiring reliable switching performance. Features triple pole double throw (3PDT) contacts suitable for complex control circuits.

Compact dimensions with 21mm length, 47.7mm width, and 27mm height. Coil resistance of 710Ω and coil power consumption of 1.2W ensure energy-efficient operation. Operates reliably between -40°C to 55°C ambient temperature range.

Constructed with silver alloy contacts for excellent conductivity and durability. Standard plug-in terminal type for easy integration and replacement. Complies with CSA and CE safety standards for international applications.

Transparent IP40 rated cover for visual contact status inspection. Manufactured in China with high-quality materials and robust design.
