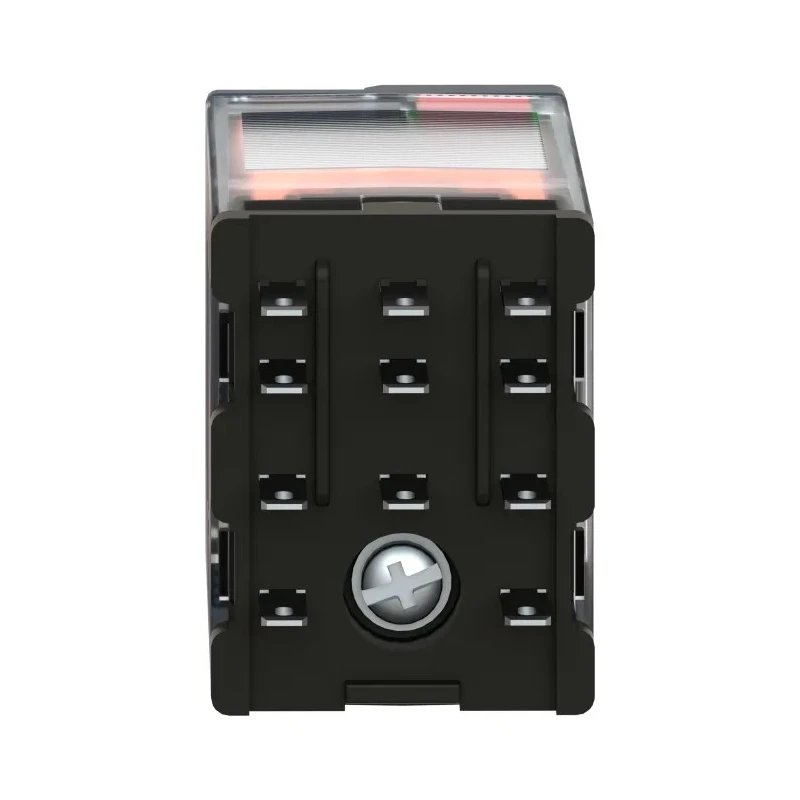

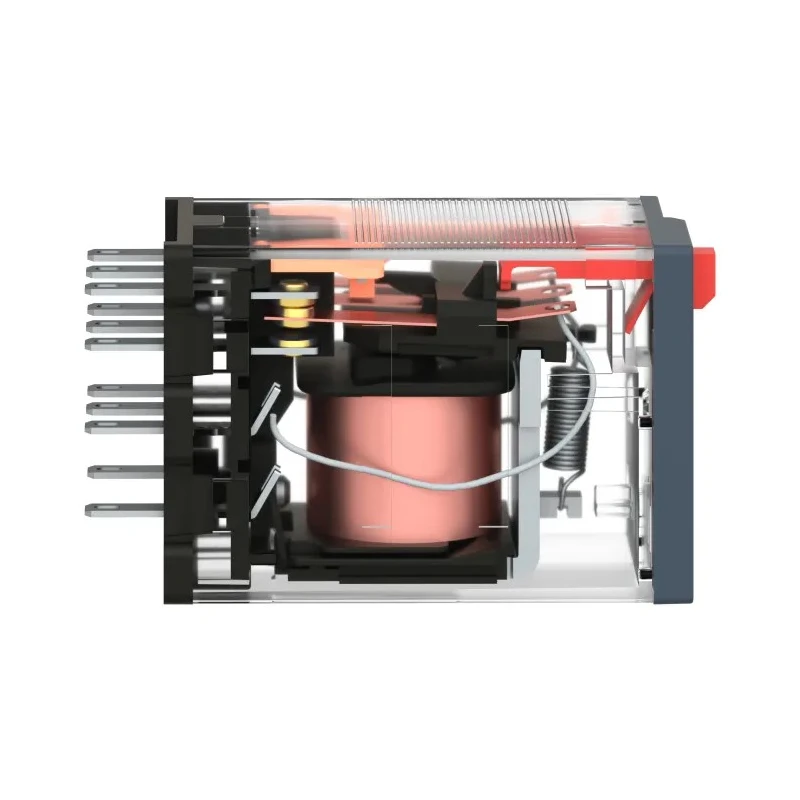

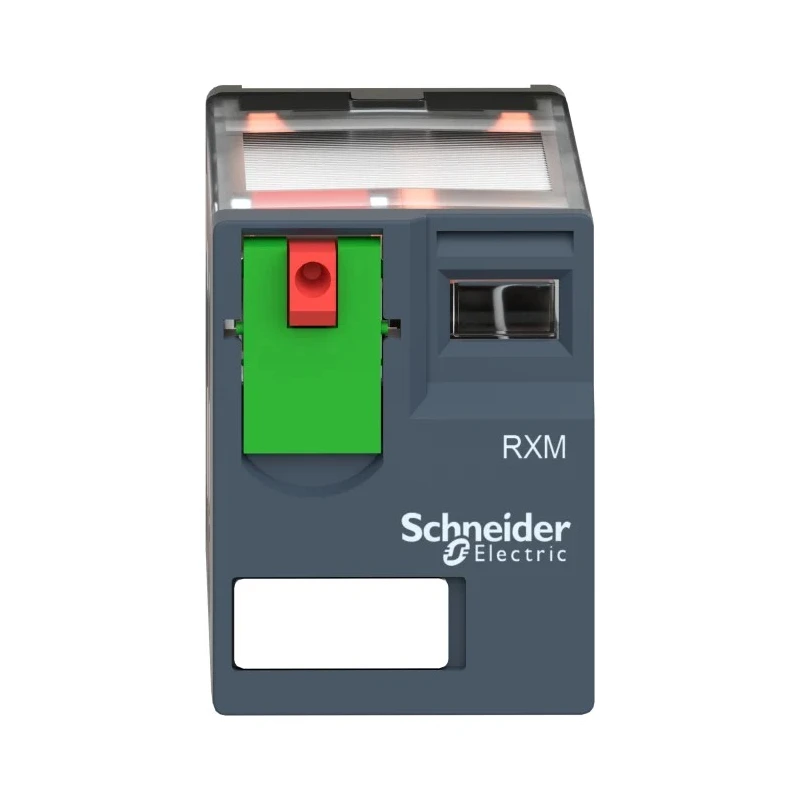

Schneider Electric Power Relay, 24V AC Coil, 10A Switching Current, 3PDT RXM3AB1B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM3AB1B7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- The relay coil operates at 24 volts AC for reliable activation.
- It supports a switching current rating of 10 amperes.
- The 3PDT contact configuration allows for multiple circuit switching.
- Coil resistance is rated at 180 ohms.
- Suitable for industrial and HVAC applications requiring precise relay control.
- Coil power consumption is 1.2 watts ensuring efficient operation.
- Operating temperature range spans from -40°C to 55°C for versatile use.
- High-quality silver alloy contact material ensures durability and conductivity.
Product Description
Schneider Electric RXM3AB1B7 Power Relay is a miniature relay from the Harmony RXM series designed for industrial, machine, building equipment, and HVAC applications. It features a 24V AC coil and delivers a switching current of 10A with a 3PDT contact configuration enabling multiple circuits to be switched simultaneously.
This plug-in type relay measures 21mm in length, 47.7mm in width, and 27mm in height, making it compact and suitable for electrical enclosures. The coil resistance of 180Ω and coil power consumption of 1.2W contribute to energy-efficient performance. It can operate reliably within a temperature range of -40°C to 55°C, making it fit for a variety of environmental conditions.
The relay contacts are constructed from silver alloy, ensuring excellent conductivity and longevity. It supports switching voltages up to 250V AC and 28V DC, with a switching power capacity of 2.5 kVA. The plug-in terminal type simplifies installation and replacement in control panels.
Certified with CE and CSA standards, this miniature relay is designed for durability and precise control in automation setups. The product originates from China. The relay coil operates at 24 volts AC for reliable activation.
It supports a switching current rating of 10 amperes. The 3PDT contact configuration allows for multiple circuit switching. Compact dimensions: 21mm length, 47.7mm width, and 27mm height. Coil resistance is rated at 180 ohms.
Suitable for industrial and HVAC applications requiring precise relay control. Coil power consumption is 1.2 watts ensuring efficient operation. Operating temperature range spans from -40°C to 55°C for versatile use. High-quality silver alloy contact material ensures durability and conductivity.
Terminal type is plug-in for easy installation and maintenance.
This Schneider Electric power relay is ideal for electrical automation, industrial control systems, and HVAC equipment requiring reliable signal switching. It integrates easily into circuits needing compact, robust relay solutions. Explore more Schneider Electric products and Power Relay options at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V AC.
This model supports a maximum switching current of 10 amperes.
The RXM3AB1B7 features a 3PDT contact configuration, allowing for multiple circuits to be switched simultaneously.
The relay measures 21mm in length, 47.7mm in width, and 27mm in height.
The coil resistance is rated at 180 ohms.
It can operate reliably within a temperature range of -40°C to 55°C.
This relay uses a plug-in terminal type for easy installation and maintenance.
The contacts are constructed from high-quality silver alloy, ensuring excellent conductivity and longevity.
It supports switching voltages up to 250V AC and 28V DC.
The coil power consumption is 1.2 watts, contributing to its energy-efficient performance.
This model is certified with CE and CSA standards.
It is suitable for industrial, machine, building equipment, and HVAC applications requiring precise relay control.
