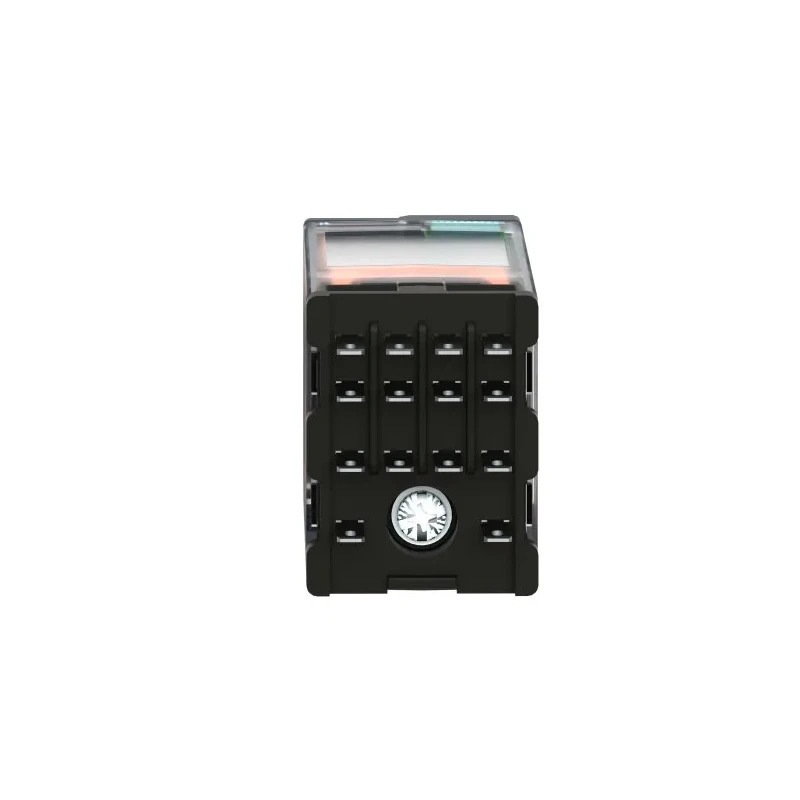

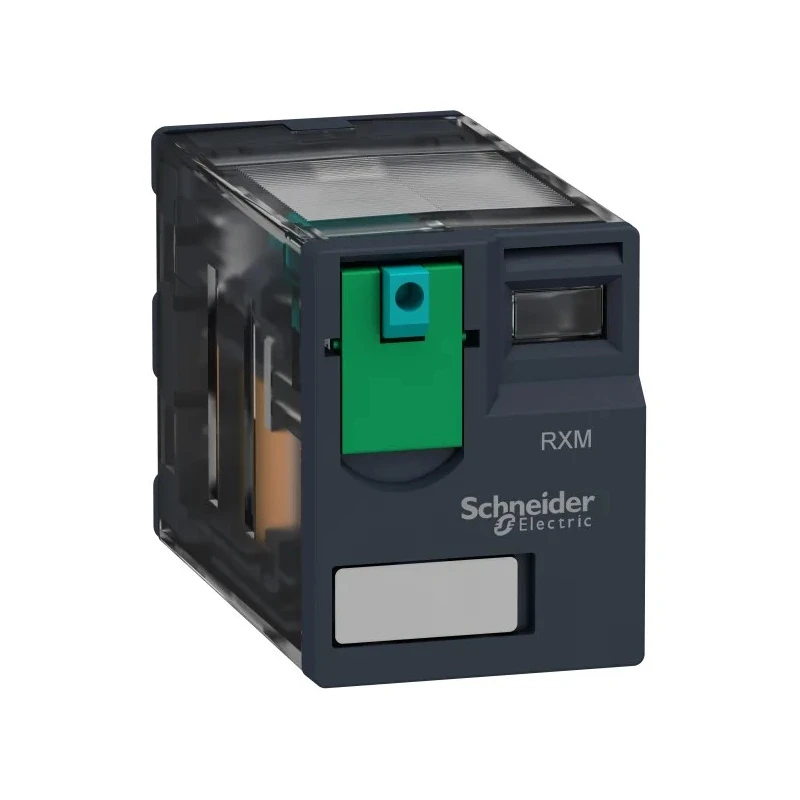

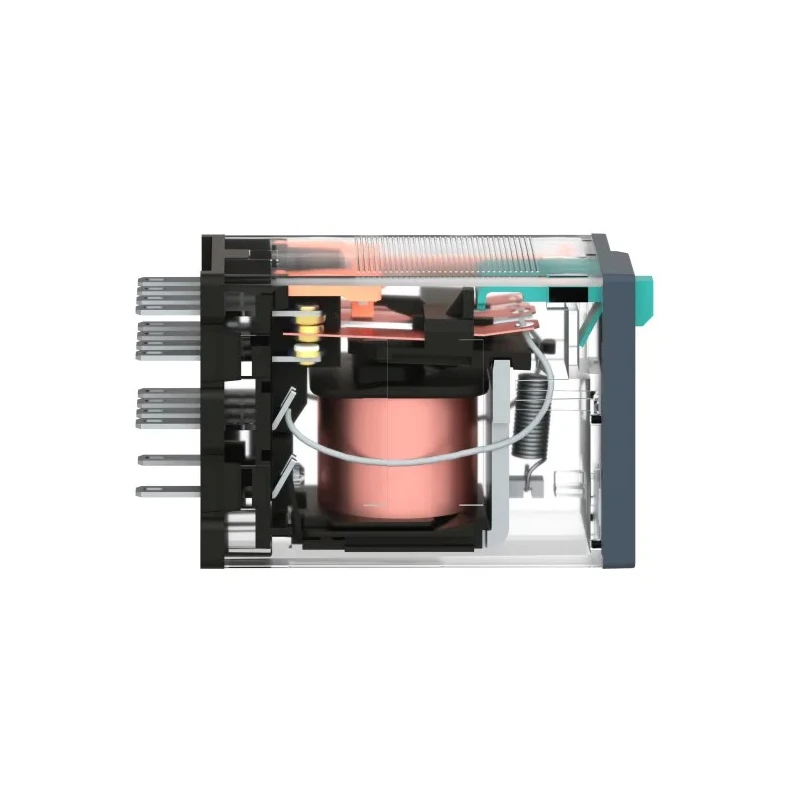

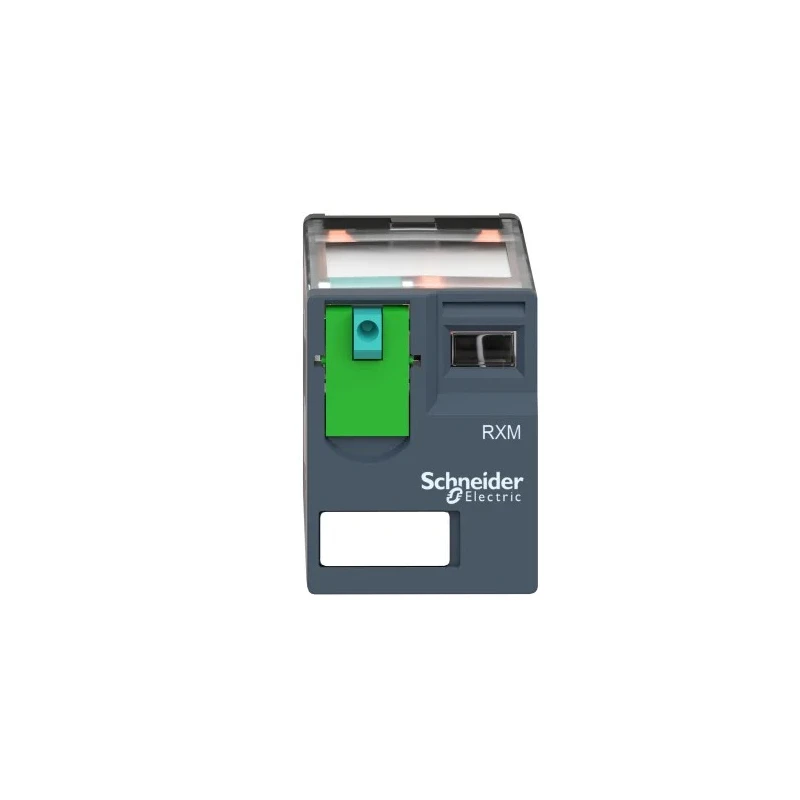

Schneider Electric Power Relay 24V dc Coil 8A Switching Current 4PDT RXM4AB1BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM4AB1BD |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- Plug-in terminal type enables quick installation on DIN rails.
- Operates reliably between -40°C and +55°C temperature range.
- Compact dimensions of 21mm length, 27mm height, and 47.7mm width facilitate space-saving setups.
- Silver alloy contacts ensure excellent conductivity and corrosion resistance.
- Test button and mechanical status indicator facilitate fault identification.
- Lifespan rated for 100,000 operating cycles for durable performance.
- Suitable for industrial machinery, telecommunications, medical devices, and HVAC equipment.
- Complies with CE and CSA standards ensuring product safety and quality.
Product Description
Schneider Electric RXM4AB1BD is a high-quality power relay from the Harmony Relay RXM series, designed for reliable switching in demanding electrical and industrial applications. This relay features a 24V DC coil voltage and an 8A switching current with a 4PDT (4 poles double-throw) contact configuration, providing flexibility and robust performance.
The relay is built with silver alloy contacts to deliver efficient electrical conductivity and resistance to corrosion, ensuring stable connections over long service periods. It supports switching voltages up to 28V DC and 250V AC, suitable for a wide range of power control scenarios.
Its compact form factor, measuring 21 mm in length, 27 mm in height, and 47.7 mm in width, allows for efficient mounting on DIN rails using compatible RXZE2 series bases. The plug-in terminal type simplifies installation and maintenance.
Engineered for industrial environments, the relay operates reliably over a broad temperature range from -40°C to +55°C. An IP40 ingress protection rating shields the device from solid objects larger than 1mm, contributing to its durability.
Key features include a test button and mechanical-status indicator for quick fault detection and a lifespan rated for 100,000 cycles, marking it suitable for continuous use in critical systems. It adheres to CE and CSA standards, assuring compliance with international safety and quality benchmarks.
Plug-in design for quick DIN rail installation. Broad operating temperature range from -40°C to +55°C. Silver alloy contacts for enhanced conductivity and corrosion resistance. Lifetime of 100,000 cycles for sustained durability.
Mechanical status indicator and test button for easy diagnostics. Switching capacities of 8A at 28V DC and 6A at 250V AC. IP40 rated enclosure protects against objects larger than 1 mm. Applications include industrial machinery, medical devices, telecommunications, and HVAC equipment.
Schneider Electric Power Relays like the RXM4AB1BD are essential components in automation and control systems that demand reliable switching performance. Browse EnvMart for more Schneider Electric relays and electrical components that meet industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current of 8A.
The coil voltage for this relay is 24V DC.
It measures 21 mm in length, 27 mm in height, and 47.7 mm in width.
The relay features a 4PDT (4 poles double-throw) contact configuration.
It operates reliably between -40°C and +55°C.
The contacts are made of silver alloy, providing excellent conductivity and corrosion resistance.
This model uses a plug-in terminal type for easy installation.
The relay is rated for a lifespan of 100,000 operating cycles.
It complies with CE and CSA standards, ensuring safety and quality.
It supports switching voltages up to 28V DC and 250V AC.
It is suitable for industrial machinery, telecommunications, medical devices, and HVAC equipment.
This relay is designed for mounting on DIN rails using compatible RXZE2 series bases.
