High performance Sound Level Meter Class 1

Name: High performance Sound Level Meter Class 1
Brand: ONO sokki
SKU: AADYE
Price: 4077.11 USD
Availability: InStock



SKU AADYE Category Sound Level Meters Brand ONO sokki

Specifications

Power Supply	Size AA battery (alkaline battery cell or Ni-MH secondary vattery) x 4 pieces USB bus power (operating input voltage range 4.75 to 5.25 VDC) AC adapter (PB-7090\| power consumption approx. 7 VA when using 100 VAC)
Operation Mode	Standard SLM-single\| Dual\| Quad\| Filter 1/1\| RTA1/1 Option Filter 1/3 (LA-0702)\| RTA 1/3 (LA-0702)\| FFT (LA-0703)\| LSIM (LA-0707)\| SQE stationary sound (LA-0708A)
Weight	Approx. 540 g (including batteries)
Microphone	MI-1271
Level Range	20 to 130 dB (wide)/60 to 130 dB/50 to 120 dB/ 40 to 110 dB/30 to 100 dB/20 to 90 dB/10 to 80 dB
Outer dimensions	Approx. 90(W)279(H)42(D)
Operating (storage) temperature range	-10 to 50 C (-20 to 60 C)
Operating (storage) humidity range	20 % to 90 %RH (10 % to 90 %RH ) with no condensation
Measurement time	e.g. If you want to measure a fixed 10-minute period every hour\| and wish to measure this for 24 hours\| M.T 10 minutes\| P.T 1 hour\| and T.T 24 hours
Measurement items	Lp\| Leq\| LE\| Lmax\| Lmin Lpeak\| LN (L5\| L10\| L50\| L90\| L95\| Lhigh\| Llow\| Lave\| and two more of any LN data)
Sampling interval	15.6 s (Lp\| Leq\| LE\| Lmax\| Lmin\| Lpeak)\| 100 ms (LN)
Measurement frequency range	10 Hz to 20 kHz 1 Hz to 20 kHz1
External power operation function	The main unit is activated automatically when the power is supplied from an AC adapter. (This function is not available by battery cells.) Switch on/off can be done with the switch in the battery box (standard function)
Battery life (continuous use) 5	Alkaline battery cell LR6 pprox. 12 hours Ni-MH secondary battery approx. 12 hours
Measurement level range (IEC JIS)	A 24 to 138 dB C 32 to 138 dB Z 38 to 138 dB Z 50 to 138 dB 1 G 35 to 138 dB 1 or more1
Start mode	Manual start\| timer start\| count down start\| level start
Display device	4.3-inch LCD with color backlight (touch panel type)
Windscreen correction function	Function to correct the influence of windscreen (f70)/ All-weather type windscreen (LA-0207A) LA-770 ll-weather type windscreen cannot be used with

Key Features

4.3 inch (size for a smart phone), color display
At one-touch operation
Listening function
Intuitive operation by a touch panel
Home button leads you to the home screen.
Language selection Selectable display language from English and Japanese
Capturing function Capture image information by pressing power key and home key simultaneously.

Product Description

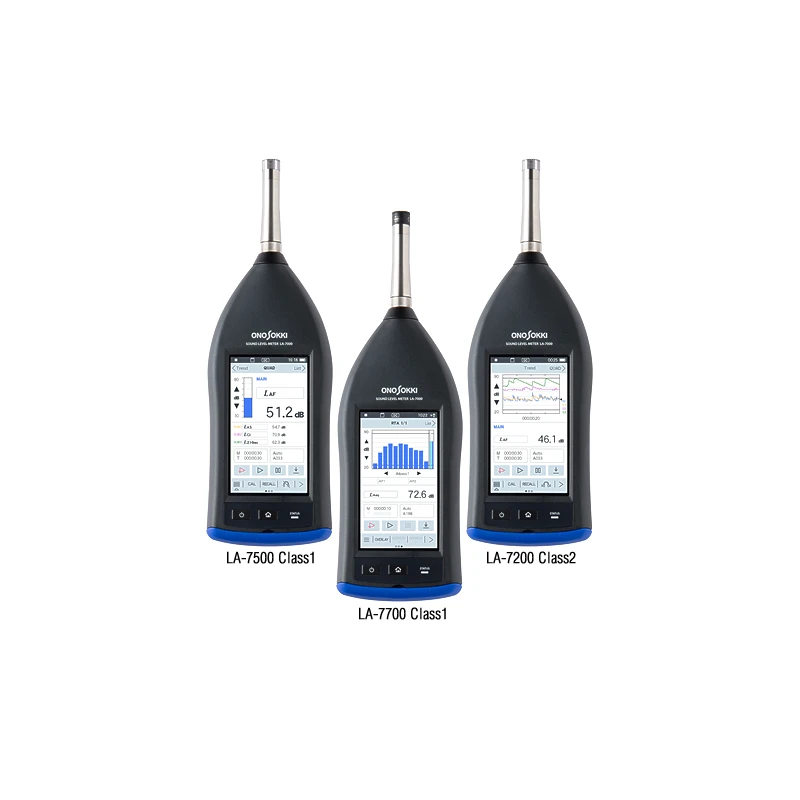

High performance Sound Level Meter - Class 1 The LA-7000 series is newly designed sound level meter which operation procedure has been greatly improved. The large color LCD and touch panel enable easy and intuitive operation. LA-7000 series allows measuring while listening to sound in addition to the original features of a sound level meter such as measurement and calculation.By listening to the sound instantly at the measuring place, you can confirm condition of a target, perform sound source probing, and check that the sound is unfailingly being recorded. The LA-7000 series sound level meter is a great help for reliable measurement at measurement place where no mistakes can be allowed. By adding various options, the LA-7000 series is able to be upgraded to a sound analyzer (frequency analysis) and a sound recorder*, performing more than just a sound level meter.The measurement performance is substantially improved only using LA-7000 series which does multiple duties, such as sound measurement, sound recording, frequency analysis, and sound probing of abnormal sound.By using LA-7000 series together with various analyses software, waveform analysis, sound quality evaluation, fluctuation sound analysis,and simulation of sound frequency can also be performed.
