Integrating Sound Level Meter Class 2

Name: Integrating Sound Level Meter Class 2
Brand: ONO sokki
SKU: AADXS
Price: 2038.53 USD
Availability: InStock



SKU AADXS Category Sound Level Meters Brand ONO sokki Condition New

Specifications

Power Requirement	Size AA battery 2 pcs. (manganese (6R) or alkaline (LR6) or oxyride (ZR6)) or PB-7090 AC adapter (option))
Weight	Approx. 360 g (including batteries)
Linearity range	100 dB (Wide range)\| 80 dB (Normal range)
Microphone	1/2-inch backelectret-type
Level Range	20 to 90 dB\| 30 to 90 dB\| 40 to 100 dB\| 50 to 110 dB\| 60 to 120 dB (Normal range)\| 70 to 130 dB\| 40 to 120 dB (Wide range)
Applicable standard	IEC 61672- 013 Class 2
Outer dimensions	Approx. 78(W) 263(H) 47(D) mm
Operating (storage) temperature range	-10 to 50 C (-20 to 60 C)
Preamplifier	MI-3111 Preamplifier for mocrophone
Operating (storage) humidity range	25 to 90 %RH (10 to 90 %RH) with no condensations
Measurable frequency range	10 Hz to 8 kHz(IEC\| JIS)
Measurement level range	6 to 135 dB(IEC\| JIS) 1 to 135 dB(IEC\| JIS) 6 to 135 dB(IEC\| JIS)
Battery life (continuous using)	Approx. 8 hours (LR6 alkaline battery in use / 23 C/ backlight off / not RS-232CUSB in use)
Time Weighting	FAST\| SLOW
Measurement time	Manual\| arbitrary setup (199 h 59 m 59 s max.)
Measurement items	Lp\| Leq \| LE\| Lmax\| Lmin\| Lpeak\| LN(Lhigh\| L5\| L10\| L50\| L90\| L95\| Llow\| Lave)
Sampling interval	31.25 s (other than LN ) 100 ms(LN)
Intrinsic noise	0 dB or less 5 dB or less 0 dB or less
Internal calibration signal (REFOUT)	1 kHz sine wave (For upper limit level rang 6 dB(normal range)\| -16 dB(wide range))
Display update time	Display by numeric 1 s\| bar indicator 0.1 s\| trend screen 0.2 s
Manual memory function	Total calculated values 100 addresses
Measurement condition memory function	Condition memories (9 kinds)
Resume function	Settings activated at power ON can be selected from follows\| settings used at previous power OFF\| factory setting\| and any condition memory number which is set from menu.
Backup function	The backup of data stored in clock and memory can be performed by built-in secondary power source. Time for full charged approx. 24 hours Backup period more than 3 months (when stored at temperature of 23 C)

Key Features

Simultaneous measurements of seven sound items including equivalent continuous sound level (Leq) and displays of measurement results to be selected.

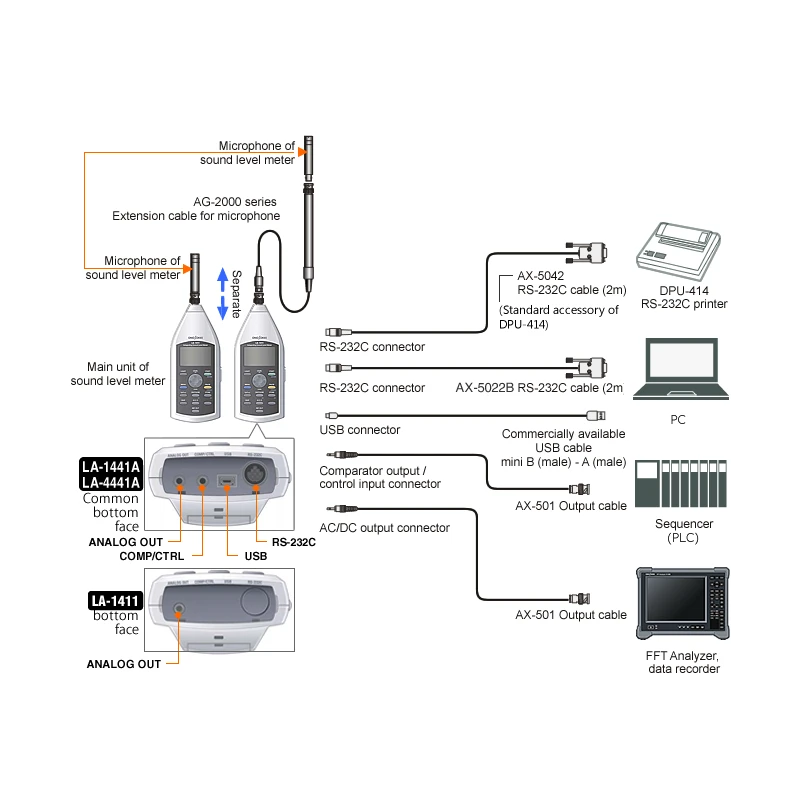

Microphone can be separated from the main unit of sound level meter by connecting several exclusive coaxial cable(s).

Product Description

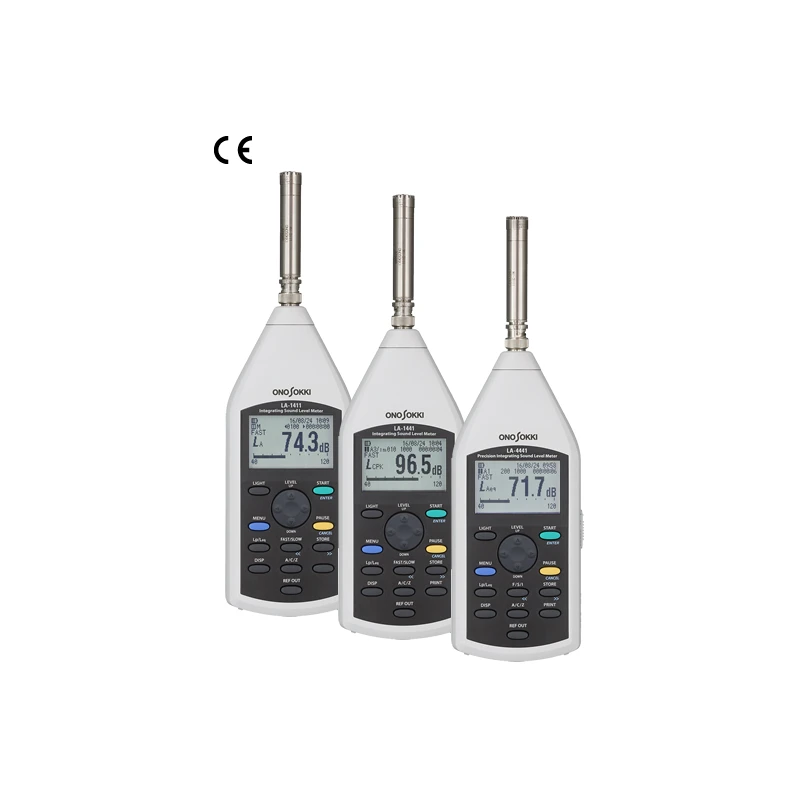

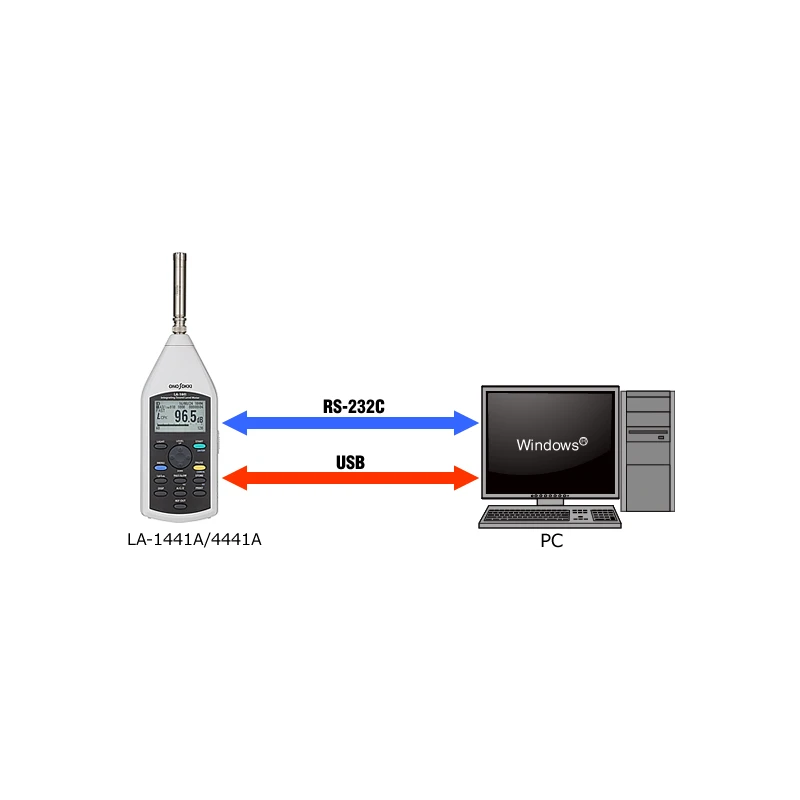

Integrating Sound Level Meter - Class 2 Three models of sound level meter LA-1411/1441A(Class 2) and LA-4441A (Class 1) are applicable to IEC 61672-1:2013, JIS C 1509- 1:2017. The all models can perform simultaneous measurement of seven sound parameters including equivalent continuous sound level without adjusting the level range corresponding to the sound fluctuation and display the selected parameters.The microphone is able to be used away from the main unit of sound level meter by using exclusive coaxial cable(s). Featuring curve-shaped body with minimum affects from sound reflection, easy-to-read and intuitive operating menu etc., our new sound level meters have greatly improved more than ever easier as ergonomically designed interface.Moreover, LA-1441A/4441A sound level meters can transfer the measurement result to a PC with simple and quick operation via RS-232C or USB interface. The sound level meter can be controlled remotely from PC using software (user preparation).LA-1441A-Sound level meter (Class 2) for measuring the working environment and environmental noise

Simple and easy data processing

Display:LCD with LED backlight semitransparent (124 x 64-dot) Measurement value display by numeric and bar indicators List display and trend graph display for various kinds of calculated values Displays of date| time| measurement time| and conditions of various kinds of instruments

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The sound level meter has several measurement ranges: 20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB (Normal range), 70 to 130 dB, and 40 to 120 dB (Wide range).

It can measure frequencies from 10 Hz to 8 kHz, compliant with IEC and JIS standards.

This model can be powered by two AA batteries (manganese, alkaline, or oxyride) or an optional PB-7090 AC adapter.

The weight of this sound level meter is approximately 360 g, including the batteries.

The operating temperature range is -10 to 50 °C, while the storage temperature range is -20 to 60 °C. The humidity range is 25 to 90 %RH for operation and 10 to 90 %RH for storage, without condensation.

It features an LCD with LED backlight, displaying measurement values numerically and via bar indicators, along with trend graphs for various calculated values.

It can measure several parameters including Lp, Leq, LE, Lmax, Lmin, Lpeak, and various levels such as Lhigh, L5, L10, L50, L90, L95, Llow, and Lave.

Yes, the microphone can be separated from the main unit by connecting it with exclusive coaxial cables.

The battery life is approximately 8 hours when using an LR6 alkaline battery at 23 °C, with the backlight off and without RS-232C/USB in use.

It is applicable to IEC 61672-1:2013 and JIS C 1509-1:2017, classified as Class 2.

The display update time is 1 second for numeric values, 0.1 seconds for bar indicators, and 0.2 seconds for trend screens.

Yes, it includes a manual memory function for storing up to 100 calculated values and a condition memory function with 9 kinds of settings.
