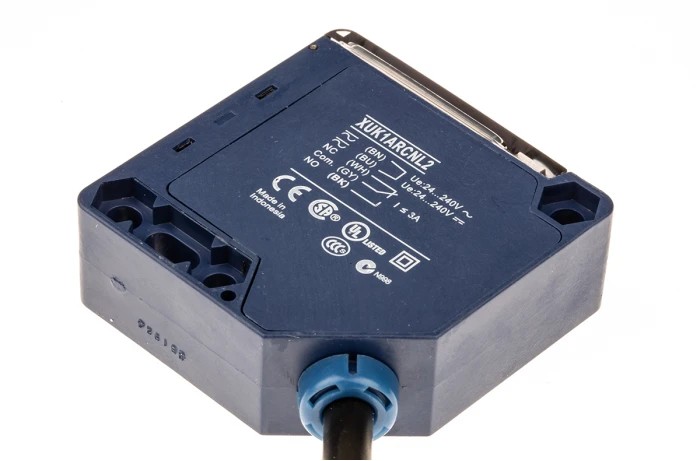

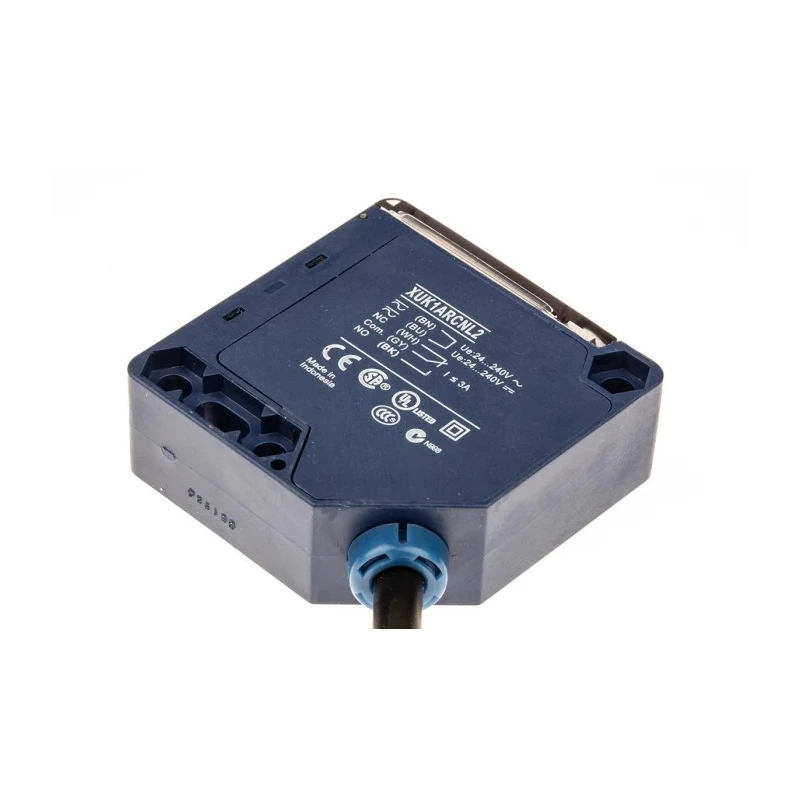

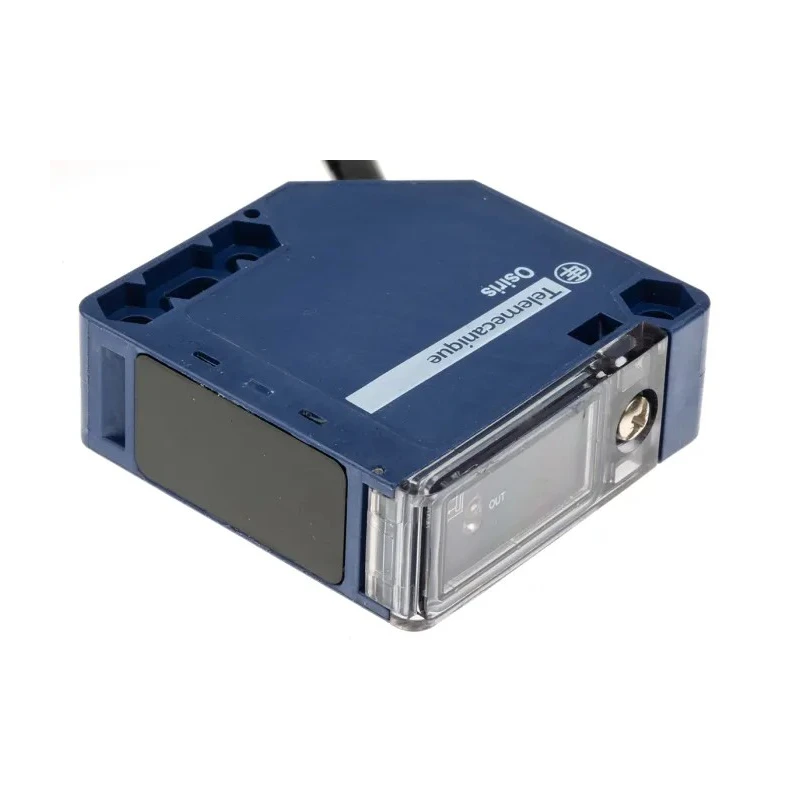

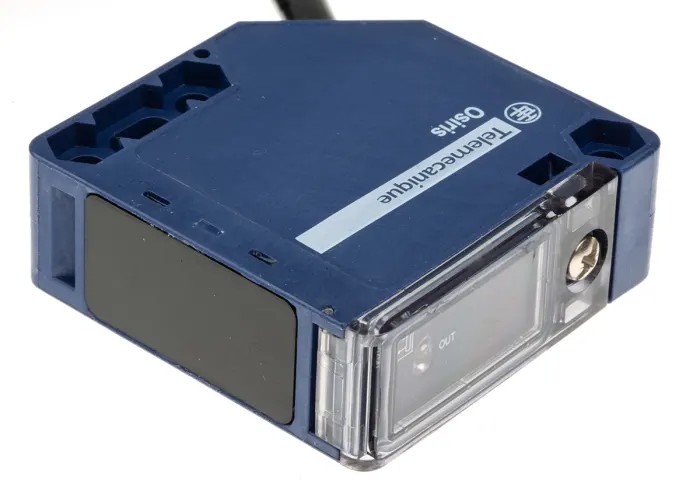

Telemecanique Sensors Retroreflective Photoelectric Sensor Compact Sensor 10 m Detection Range Relay Output XUK1ARCNL2H60

Telemecanique Sensors XUK1ARCNL2H60 is a retroreflective photoelectric sensor designed for industrial automation and control applications. The compact sensor with a detection range of 10 meters is suitable for use in manufacturing, material handling, and security systems.

This sensor features a relay output type and is built with a durable polybutylene terephthalate housing material, offering resistance to oils and chemicals. Its IP65 rating ensures effective protection against dust and water ingress, making it compatible with challenging and harsh industrial environments.

The sensor accepts a wide supply voltage range up to 240V AC/DC and supports a maximum current of 3 amperes, providing reliable switching power for various industrial control tasks.

With a panel mount type and a compact size of 50 mm by 50 mm, it is easy to install discreetly in equipment. Operating temperature ranges from -25°C to 55°C, ensuring stable performance under diverse temperature conditions.

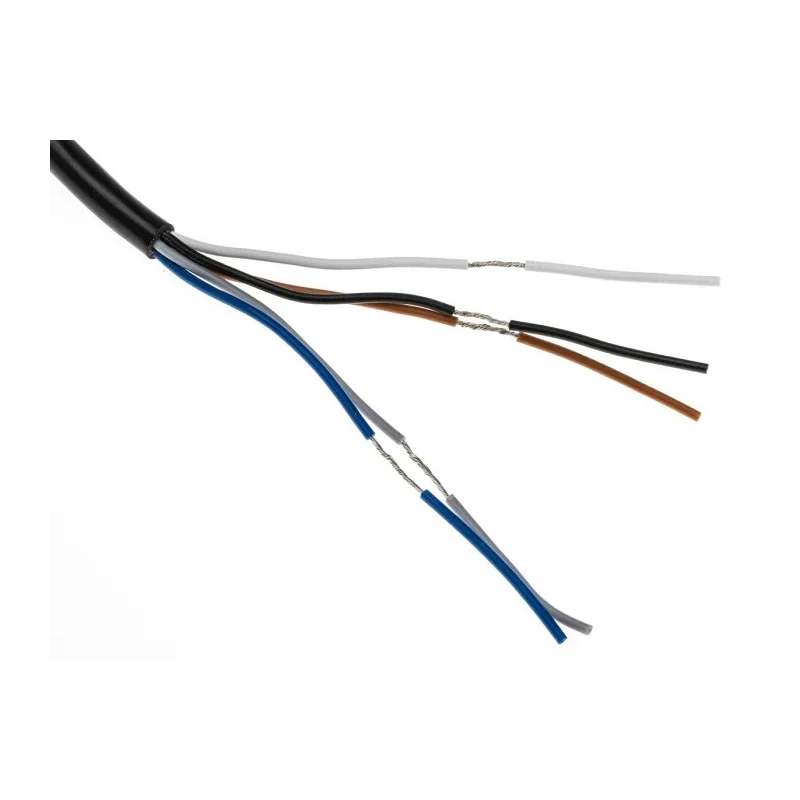

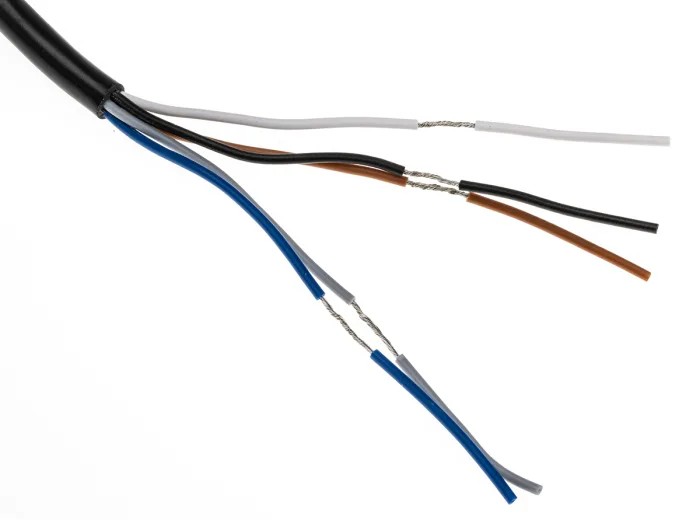

The sensor includes a 2-meter cable for easy integration and wiring. A 25 millisecond response time means the sensor reacts promptly to detected changes, ideal for fast-paced automation applications.

This model belongs to the OsiSense XU series and is certified with CE, CSA, UL, and conforms to multiple IEC standards including IEC 60068-2-27, IEC 60068-2-6, and IEC 60529. It is RoHS compliant, ensuring environmentally safe manufacturing standards.

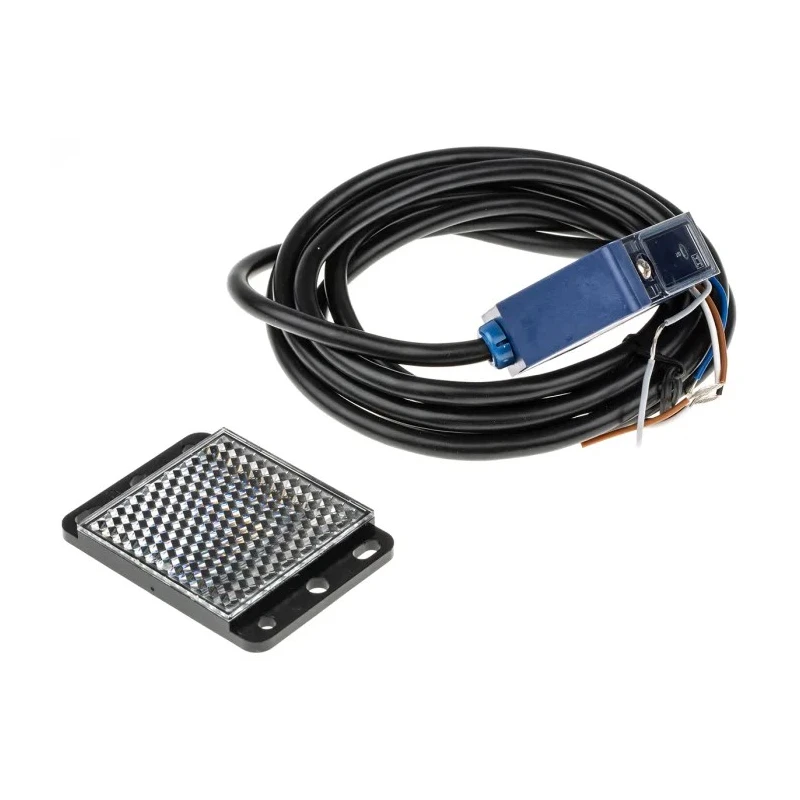

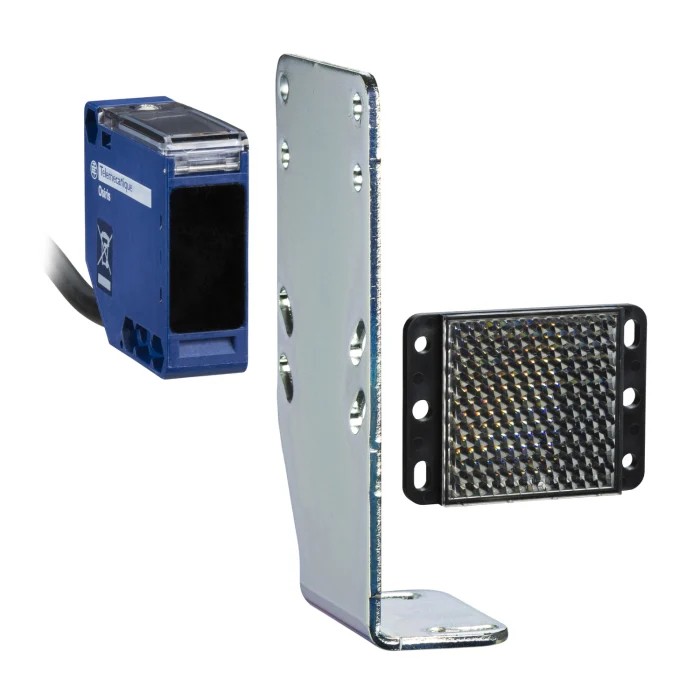

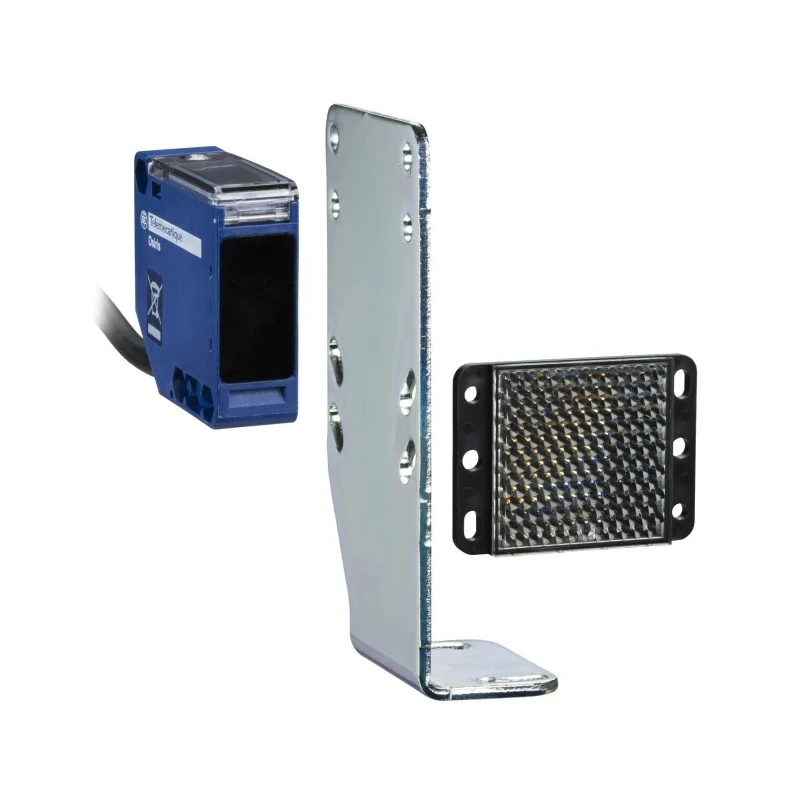

Applications range from security systems, manufacturing industry processes to material handling networks requiring precise and efficient object detection. Set includes the Photoelectric Sensor, fixing bracket, reflector, and mounting instructions in a blister pack ready for installation.

Explore more in the Electronic Sensors category at EnvMart for advanced industrial and automation sensor solutions. This sensor features a relay output suitable for various industrial automation applications. Compact sensor style measuring 50 mm by 50 mm ensures discreet installation.

IP65 rated housing provides dustproof and water-resistant protection for rugged environments. Infrared light source allows accurate retroreflective detection. Wide operating temperature range from -25°C to 55°C supports diverse ambient conditions.

Panel mount type with polybutylene terephthalate housing material enhances durability and chemical resistance. Includes a 2 m cable for straightforward connectivity. Maximum AC and DC voltage rating of 240V ensures compatibility with standard supply voltages.

Maximum current handling of 3A offers robust switching capability. Response time of 25 ms for quick detection response in automation tasks.
