TDK 47 mH Ferrite Power Line Choke, Max SRF 10 kHz, 500 mA Idc, 2 Ω Rdc, 250V AC, Radial Mount B82731M2501A030

Free Delivery in India | Lowest Global Shipping Charges

TDK 47 mH Ferrite Power Line Choke, Max SRF 10 kHz, 500 mA Idc, 2 Ω Rdc, 250V AC, Radial Mount B82731M2501A030



Category Mounting Equipment Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	20mm
Length	21mm
Model	B82731M2501A030
Depth	15mm
Packaging	Box
Mount Type	Radial
Series	B82731M
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	10kHz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	47mH
Standards/Approvals	VDE, EN, ENEC, RoHS, UL
Maximum DC Current	500mA
Maximum DC Resistance	2Ω
Inductance Tolerance	-30 to 50 %
Termination Style	PC Pin
Maximum Self Resonant Frequency	10kHz
Lead Pitch	12.5mm
Lead Diameter	0.6mm

Key Features

Constructed with a ferrite core for reliable performance.
Radial mount type suitable for PCB installation.
Maximum operating voltage of 250V AC with a maximum self-resonant frequency of 10 kHz.
Compact dimensions with length 21mm, height 20mm, and depth 15mm.
Designed for suppression of common-mode interference in electronic ballasts and switch-mode power supplies.
Operating temperature range from -40°C to 125°C ensuring stability in harsh environments.
Termination style uses PC pins with a lead pitch of 12.5mm and lead diameter of 0.6mm.
Compliance with VDE, EN, ENEC, RoHS, and UL standards guarantees quality and safety.

Product Description

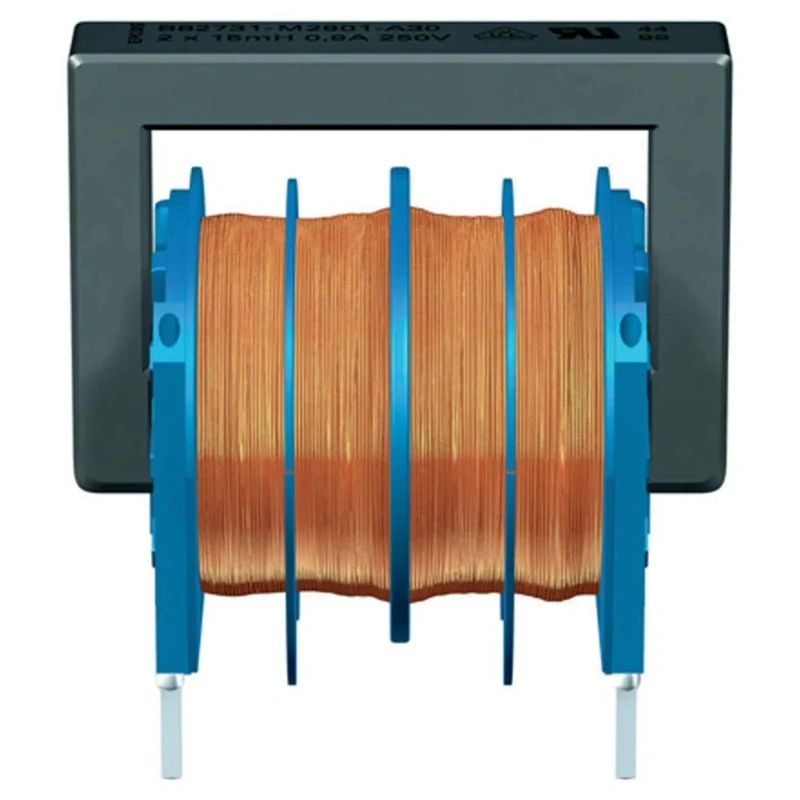

TDK B82731M2501A030 Power Line Choke is a high-quality, radial mount inductor designed for efficient suppression of common-mode interferences in electronic circuits.

Built with a ferrite core and a closed rectangular design with a 2-section winding, this choke offers a low leakage inductance with high resonance frequency, improving noise reduction in compact switch-mode power applications and electronic ballasts in lamps.

The choke operates with a maximum DC current of 500 mA, maximum DC resistance of 2 Ω, and a maximum operating voltage of 250V AC. It has a self-resonant frequency of 10 kHz which suits a variety of electronic applications requiring high-frequency noise filtering.

It features a robust closed polycarbonate coil former (UL 94 V-0 rated) without encapsulation, providing clearance and creepage distances greater than or equal to 3 mm, enhancing safety and reliability during PCB assembly.

The component has a compact size with dimensions of 21mm length, 20mm height, and 15mm depth, and uses PC pin terminations with a lead pitch of 12.5mm and lead diameter of 0.6mm, facilitating easy integration into printed circuit boards through wave soldering.

This choke boasts excellent pulse strength and low acoustic noise, making it suitable for professional electronic manufacturing, HVAC systems, industrial equipment, and laboratory electronic components where reliable noise suppression is critical.

Constructed with a ferrite core for reliable performance. Radial mount type suitable for PCB installation. Maximum operating voltage of 250V AC and maximum self-resonant frequency of 10 kHz. Compact dimensions: 21mm length x 20mm height x 15mm depth.

Designed for suppression of common-mode interference in electronic ballasts and switch-mode power supplies. Operating temperature range from -40°C to 125°C ensuring long-term stability. Termination style PC Pin with lead pitch of 12.5mm and lead diameter of 0.6mm.

Compliant with VDE, EN, ENEC, RoHS, and UL standards. Manufactured in Hungary, ensuring high quality and durability.

This TDK power line choke is ideal for use in industrial electronics, power supplies, HVAC equipment, and professional electronic manufacturing environments. Explore more electronic components and Leaded Inductors on EnvMart to support your projects.
