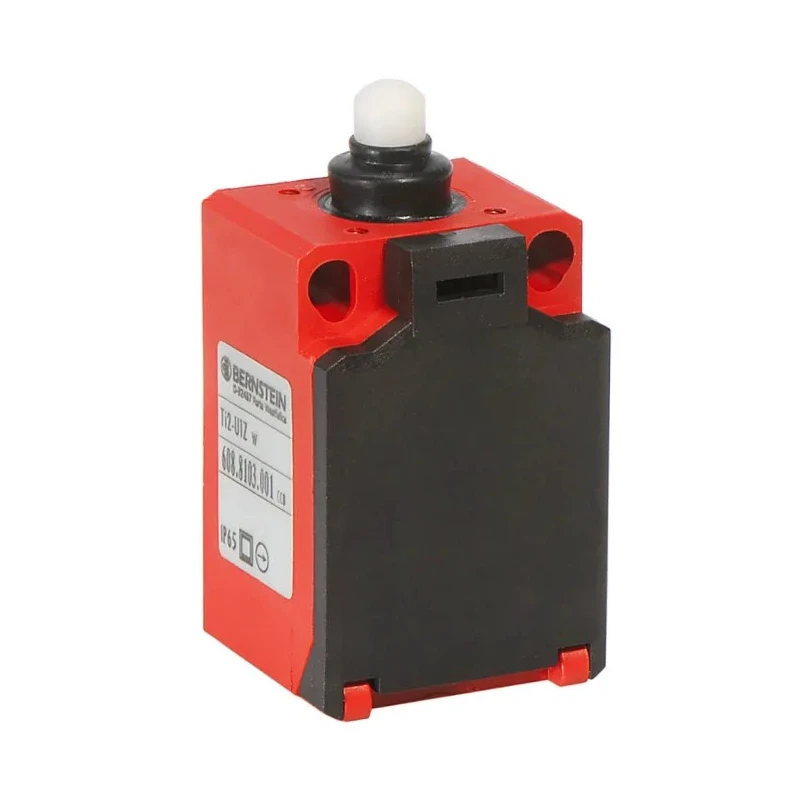

Bernstein AG TI2 Series Plunger Limit Switch 1 NO/1 NC IP65 Fibreglass Reinforced Thermoplastic Housing 240V AC 10A IP65

Bernstein AG IP65 Plunger Limit Switch 1 NO/1 NC is a compact and robust limit switch ideal for safety applications and precise position monitoring in confined spaces. Constructed with a durable fibreglass reinforced thermoplastic housing that ensures resistance against dust and water, this switch complies with protection class IP65. It operates at 240V AC and supports a switching current of 10A, making it suitable for demanding electrical and automation systems.

The limit switch features a plunger actuator type, providing reliable and accurate actuation. It includes slow action contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC), suitable for a wide range of control circuits. The device offers mechanical endurance rated for 3 million operating cycles, ensuring dependable performance over extended use periods.

The compact size is optimized for installations where space is limited, maintaining a tried-and-tested connection system. It includes an M16 conduit entry for cable attachment and screw-type mounting orientation for secure fixing. Operating temperatures range from -30°C to 80°C, allowing operation in various industrial environments such as manufacturing, automation, HVAC control systems, and safety-related applications.

The switch also supports two-channel safety monitoring and features a captive snap-on cover to prevent tampering. The slow-action system features a 2 mm contact opening width, conforming to EN 81-1 standards for lift construction, ensuring safety compliance. The actuator can also be repositioned by four increments of 90°, providing flexible installation options.

Variants of this model include 1 NC / 1 NO, 2 NC, and 2 NO contact configurations with all NC contacts being positively opening. Additional actuator options and versions with M12 connectors or AS-interface variants are available to cater to specific industrial automation requirements.

The switch is RoHS compliant, reflecting modern environmental and safety standards.

This Bernstein AG TI2 Series Plunger Limit Switch is engineered for diverse industrial automation and control tasks, particularly suitable for use in factory automation, mechanical manufacturing, process control, and safety systems. Choose this switch for reliable performance, rugged construction, and flexible installation in critical electrical switching applications.
