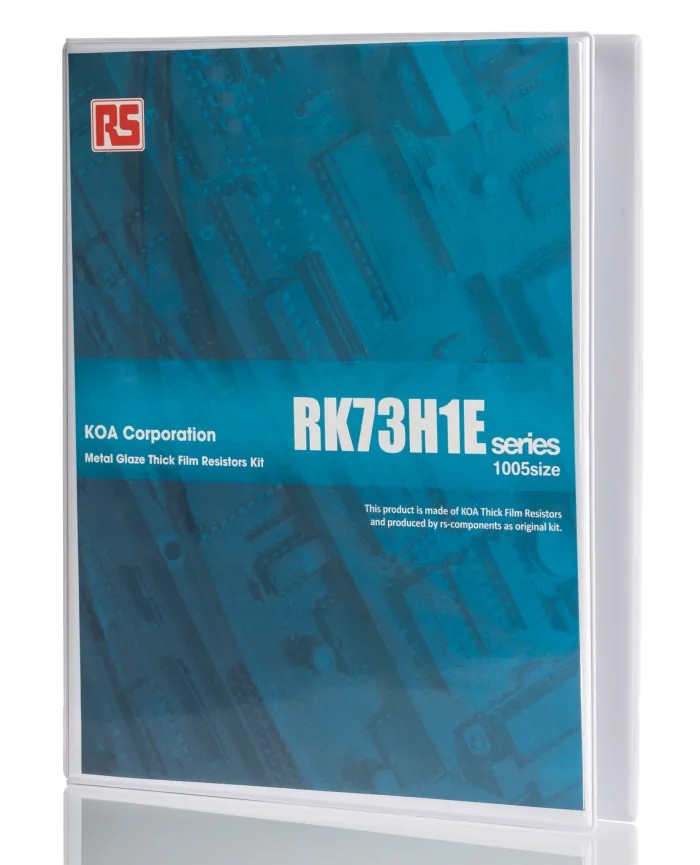

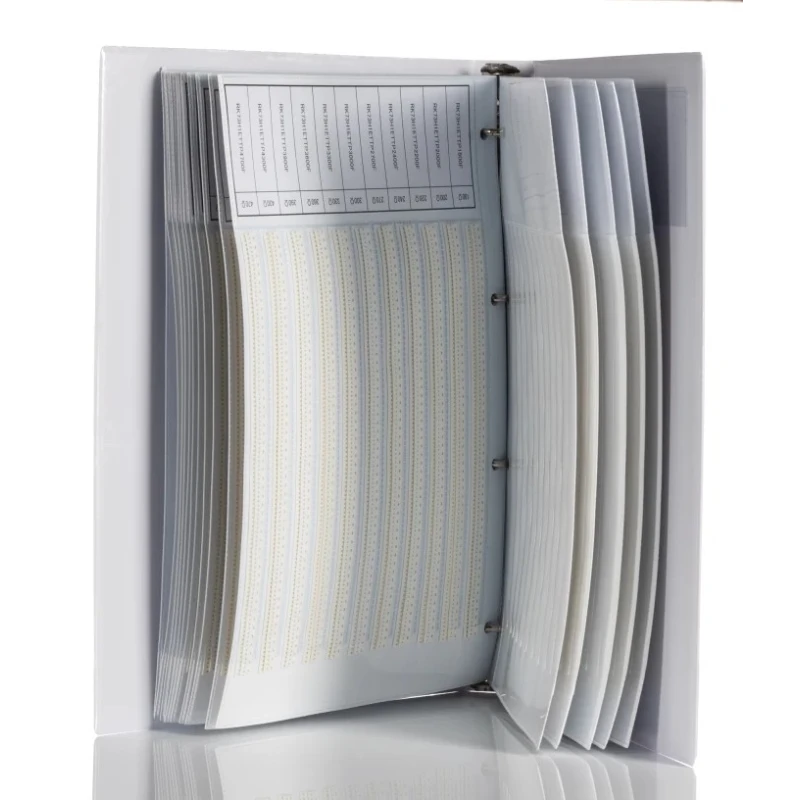

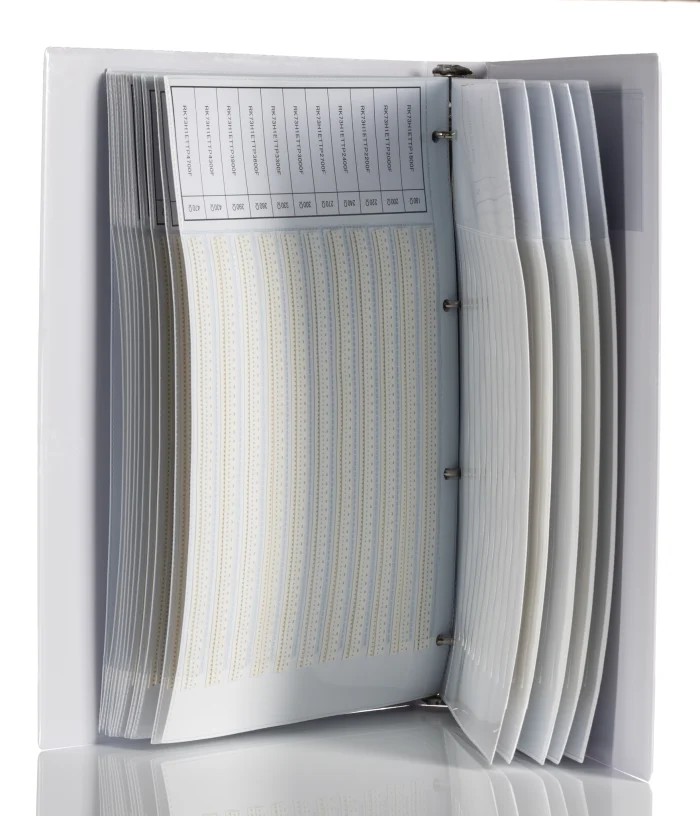

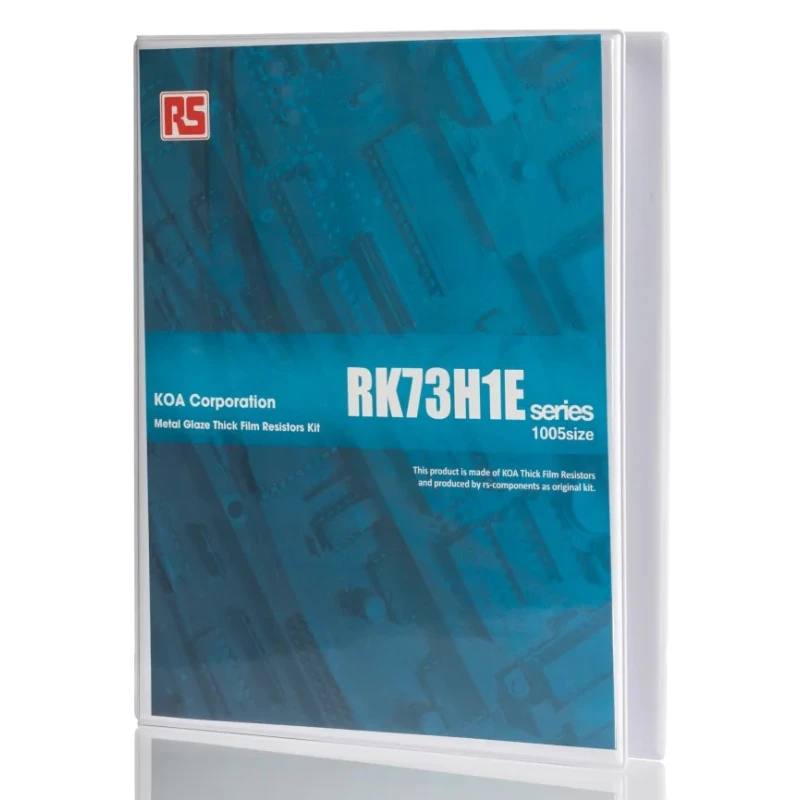

KOA Thick Film Surface Mount Resistor Kit , 170 Values, 34000 Pieces, 1 Ω to 10 MΩ, ±1% Tolerance, 0.1W Power Rating RK73H1E
Specifications
| Country of Origin | Japan |
|---|---|
| Resistance Range | 1 Ω → 10 MΩ |
| Brand | KOA |
| Model | RK73H1E |
| Technology | Thick Film |
| Mount Type | Surface |
| Series | RK73H1E |
| Resistance Tolerance | ±1 % |
| Kit Type | CF Carbon Film |
| Number of Values | 170 |
| Number of Pieces per Value | 34000 |
| Maximum Power Rating | 0.1W |
| Total Number of Pieces | 20 |
Key Features
- The kit contains 34,000 pieces of resistors for diverse applications.
- Resistors feature ±1% resistance tolerance ensuring accuracy in circuits.
- Maximum power rating of 0.1W supports low power electronic device requirements.
- Surface mount type with thick film technology provides durable and stable performance.
- Operating temperature range from - 55°C to +155°C for versatile environments.
- Complies with EIAJ RC-2136, IEC 60115-2, and JIS C 5201-2 standards.
- Resistance values include E24 series plus jumpers for circuit customization.
- Maximum voltage rated at 50V suitable for various electronic applications.
Product Description
KOA RK73H1E Thick Film Surface Mount Resistor Kit RK73H1E is a comprehensive collection designed to meet the demanding needs of electronic component assemblers, engineers, and technicians. Featuring 170 distinct resistor values from 1 Ω to 10 MΩ, this kit provides a total of 34,000 pieces with ±1% tolerance, making it highly suited for precision circuits requiring resistance accuracy and stability.

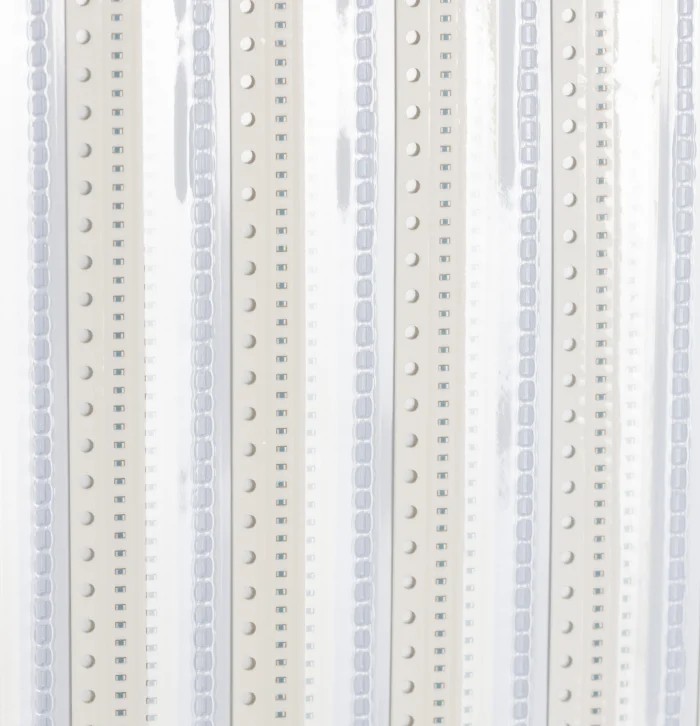

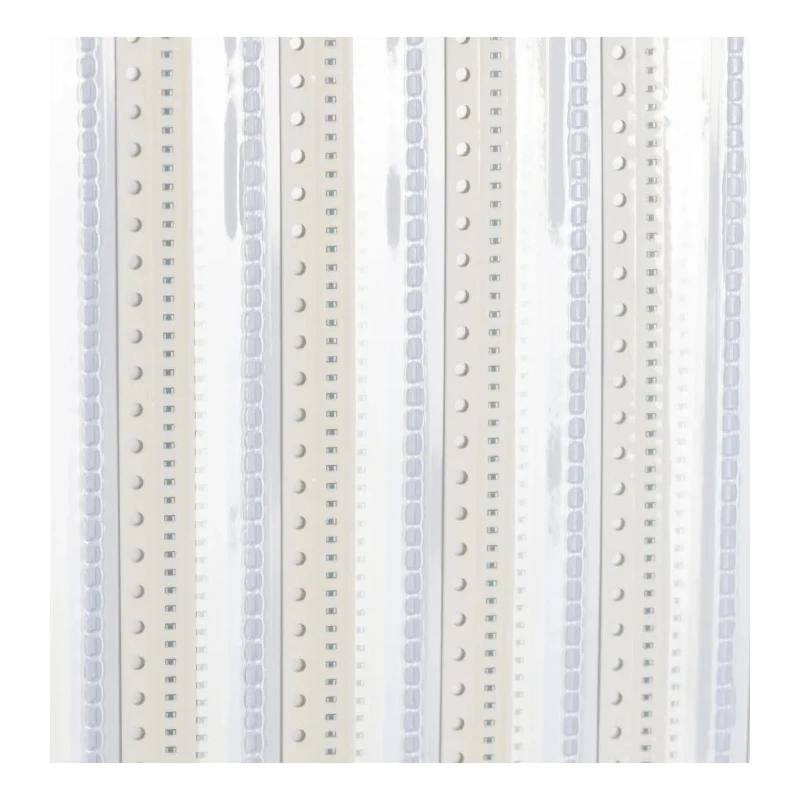

The resistors use thick film technology, mounted on surface mount pads in 0402 format, ensuring reliable performance and compatibility with automated assembly processes. Each resistor in the series has a maximum power rating of 0.1W and can operate safely in temperatures ranging from - 55°C to +155°C.
This resistor kit complies with international standards including EIAJ RC-2136, IEC 60115-2, and JIS C 5201-2, verifying its quality for automotive and industrial applications outside of certified automotive environments, being designated as non-automotive standard. The maximum voltage rating is 50V, allowing these resistors to be used in various low voltage electronic devices and embedded assemblies.
The RK73H1E kit features an E24 resistor value series plus jumpers for enhanced circuit design flexibility. Temperature coefficient ratings vary by resistance range, guaranteeing stable resistance over temperature changes, crucial for high reliability electronics, industrial manufacturing, and laboratory instrumentation.
Designed and manufactured in Japan, this resistor kit assures quality, adherence to specifications, and long-term durability, suitable for electronics prototyping, maintenance, and repair tasks in environments such as industrial manufacturing, research laboratories, and educational institutions.
Contains 170 resistor values from 1 Ω to 10 MΩ for wide application coverage. Includes 34,000 total resistor pieces for extensive usage and stock. High accuracy with ±1% resistance tolerance ensures circuit reliability. Thick film surface mount resistors provide stable electrical characteristics.
Maximum power rating 0.1W with 50V voltage withstand capacity. Complies with EIAJ RC-2136, IEC 60115-2, and JIS C 5201-2 standards. Operating temperature from - 55°C to +155°C suitable for harsh conditions. E24 series plus jumper values offer design flexibility.
Ideal for electronic device assembly, prototyping, industrial, and laboratory use. Explore the extensive range of high-quality Resistor Kits at EnvMart to meet your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resistance range of this kit spans from 1 Ω to 10 MΩ, providing a wide variety of values for different applications.
The kit includes a total of 34,000 pieces across 170 distinct resistor values.
Each resistor in the kit has a maximum power rating of 0.1W, suitable for low power electronic devices.
The resistors feature a tolerance level of ±1%, ensuring accuracy in circuit applications.
These resistors can operate within a temperature range of -55°C to +155°C, making them suitable for various environments.
This resistor kit complies with EIAJ RC-2136, IEC 60115-2, and JIS C 5201-2 standards, verifying its quality for electronic applications.
The resistors utilize thick film technology, which provides stable electrical characteristics and durability.
The maximum voltage rating for these resistors is 50V, suitable for various low voltage electronic applications.
These resistors are designed for surface mounting, making them compatible with automated assembly processes.
The kit includes 170 different resistor values, providing a comprehensive selection for diverse applications.
This resistor kit is manufactured in Japan, ensuring adherence to quality standards and specifications.
This kit is suitable for electronic device assembly, prototyping, industrial applications, and laboratory use.
