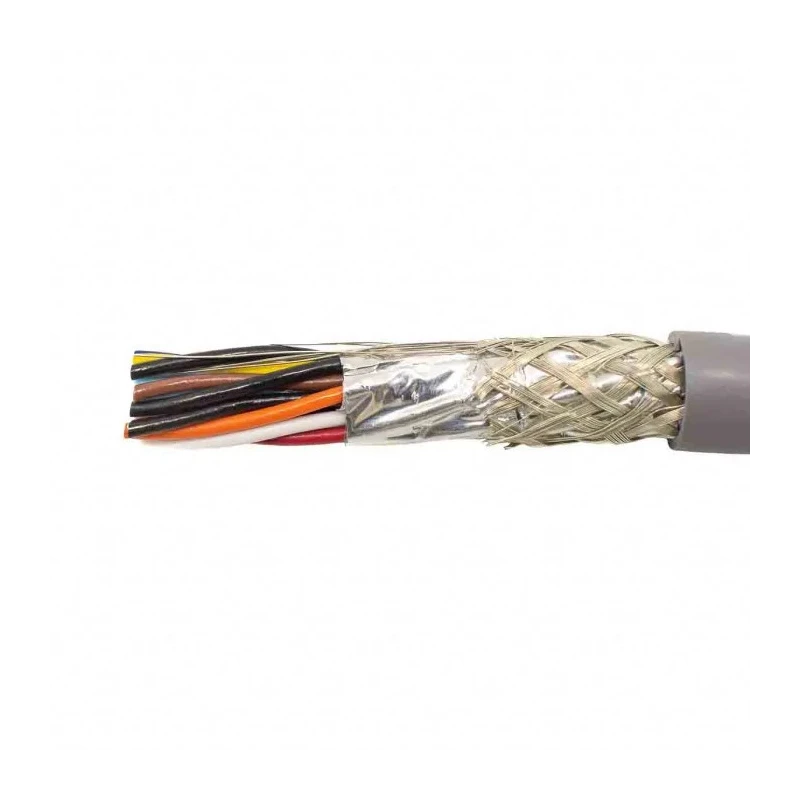

Alpha Wire Alpha Essentials Communication & Control Series Data Cable 8 Pairs 16 Cores 0.33 mm² 30 m Grey Sheath 6379 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.33 mm² |
| Model | 6379 SL005 |
| Cable Length | 30m |
| Series | Alpha Essentials Communication & Control |
| Outside diameter | 9.7mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 16 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flammability Test: VW-1 |
| Number of Strands | 7 |
| Core Strands | 7 x 38AWG |
| Size of Strands | 38AWG |
| Number of Pairs | 8 |
| Fire BehaviourFlammability Test | VW-1 |
| Flammability Test | VW-1 |
Key Features
- Aluminium and Mylar tape shield with twisted pair design minimize EMI and crosstalk.
- Contains 8 colour-coded twisted pairs for easy identification.
- Tin copper wire conductors with polyvinyl chloride outer jacket provide durability.
- Rated for operation from -20°C to 80°C and voltage up to 300V.
- Flexible with minimum bend radius of 10 times 9.7mm diameter.
- Meets UL, CSA, and CE standards with VW-1 flame retardant rating.
- Ideal for industrial environments including radio studios and server rooms.
Product Description
Alpha Wire 6379 SL005 Communication & Control Series Data Cable 8 Pairs 16 Cores 0.33 mm² 30 m Grey Sheath is engineered for robust and reliable data communication across various industrial sectors.
Belonging to the Alpha Essentials Communication & Control Series, this Data Cable is manufactured with high-quality tin copper wire conductors and features an aluminium and Mylar tape shield that minimizes electromagnetic interference and crosstalk, ensuring clear and stable signal transmission.
The cable consists of 8 twisted pairs (16 cores), each colour-coded for easy identification during installation and maintenance. Its polyvinyl chloride (PVC) outer jacket provides excellent protection against impact and abrasion, making it well-suited for harsh working conditions.
With an outside diameter of 9.7mm and a minimum bend radius of 10 times this diameter, the cable offers good flexibility to facilitate routing around corners and complex system layouts. It is rated for operation from -20°C to 80°C, supporting voltage levels up to 300V, making it ideal for low-voltage industrial applications.
Aluminium and Mylar tape shield and twisted pair design reduce EMI and crosstalk for enhanced signal clarity. Eight colour-coded twisted pairs simplify installation and system maintenance. Durable PVC jacket provides resistance to mechanical wear in demanding environments.
Wide operating temperature range and voltage rating support versatile industrial use. Complies with UL, CSA, and CE standards; flame retardant with VW-1 rating.
This cable is recommended for use in radio broadcasting studios, server rooms, and other industrial and commercial data communication installations requiring high performance and reliability.
Explore the extensive range of communication and control cables at EnvMart to meet diverse industrial cabling needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 80°C.
This data cable is rated for operation at voltages up to 300V.
The cable consists of 16 cores, organized into 8 twisted pairs.
The outside diameter of this model is 9.7mm.
It features tin copper wire conductors and a polyvinyl chloride (PVC) outer jacket for durability.
The minimum bend radius is 10 times the outside diameter, which is 10 times 9.7mm.
This cable meets UL, CSA, and CE standards, and has a VW-1 flame retardant rating.
The length of this data cable is 30 meters.
It is rated for operation from -20°C to 80°C.
The aluminium and Mylar tape shield combined with the twisted pair design minimizes electromagnetic interference and crosstalk.
It is ideal for use in industrial environments such as radio studios and server rooms.
Each core consists of 7 strands of 38AWG wire.
