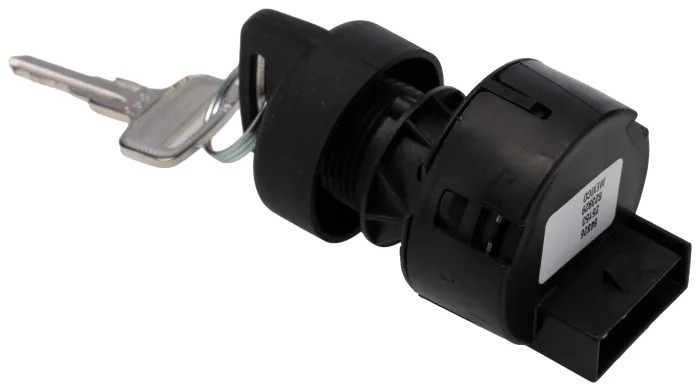

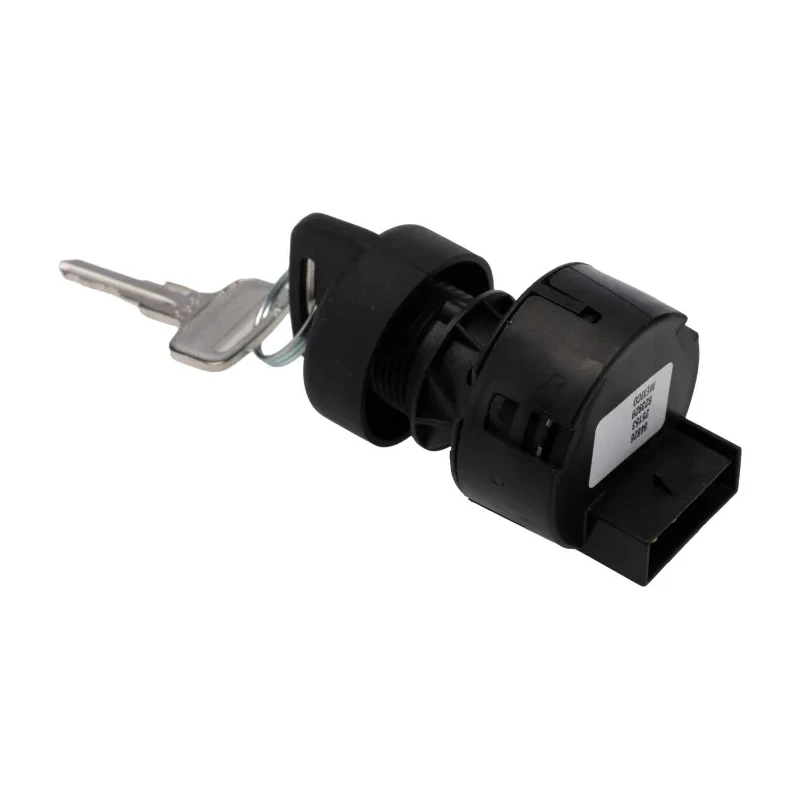

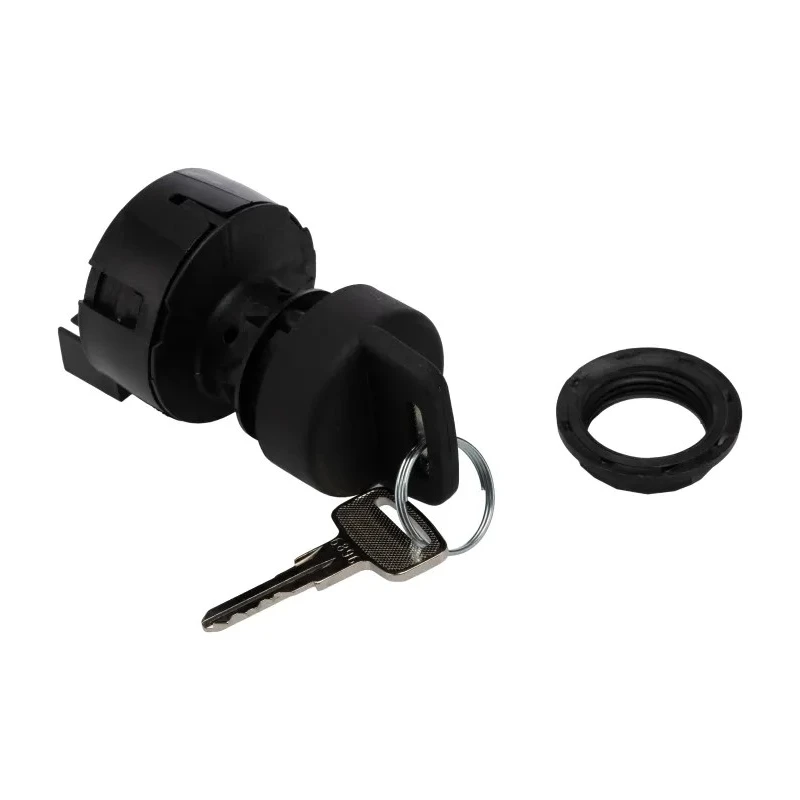

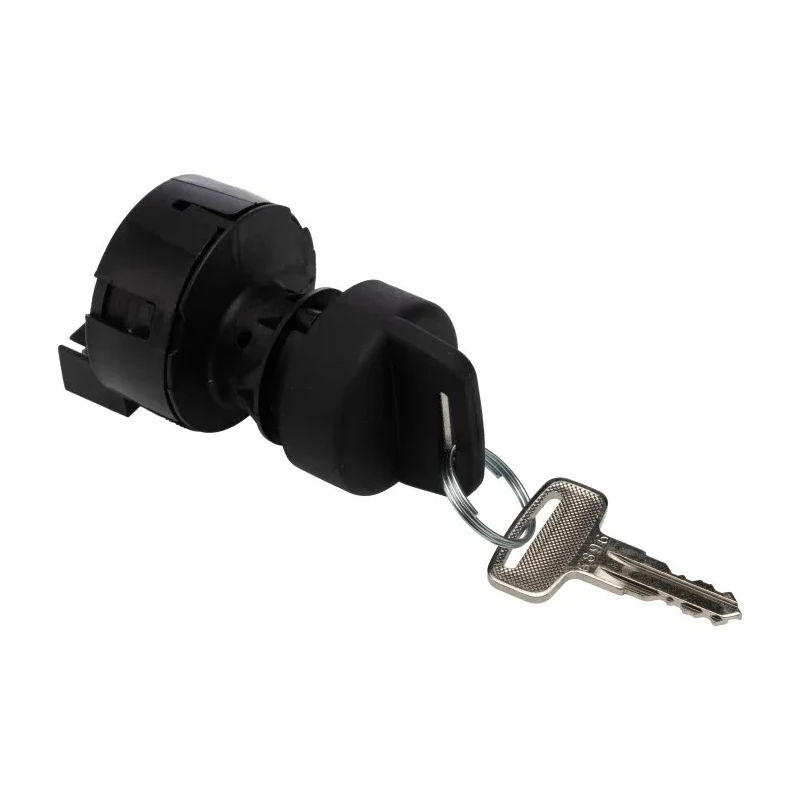

Honeywell Technologies Key Switch, 20A 3-Way Off-On-Start Operation Nylon & Polypropylene Housing 84826-01
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Honeywell |
| Model | 84826-01 |
| Housing Material | Nylon, Polypropylene |
| Contact Material | Brass |
| Series | 84826 |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 3 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Metri-Pack |
| Standards/Approvals | RoHS |
| Switch Operation | Off-On-Start |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 25000Cycles |
| Key Type | Straight |
| Bezel Shape | Round |
| Key Index Angle | 45° |
Key Features
- Constructed with durable nylon and polypropylene housing for mechanical reliability.
- Brass contacts support high current load with 20A switch contact rating.
- Operates using a 12V DC contact voltage suitable for low voltage systems.
- Employs Metri-Pack terminal type ensuring sealed, reliable electrical connections.
- Features a round bezel with 45° key index angle for clear positional feedback.
- Rated mechanical life of 25,000 operational cycles for frequent switching applications.
- Wide operating temperature range from -40°C to 85°C for diverse environments.
- Designed for ignition control and access-controlled power switching in automation and vehicle panels.
Product Description
Honeywell 84826-01 Key Switch is a high-quality electrical switch designed for professional automation, vehicular ignition control, and access-controlled power switching applications. This key switch features a robust nylon and polypropylene housing that withstands mechanical wear and environmental variability.
Its brass contact construction is capable of handling a 20A current load with a 12V DC contact voltage suitable for low-voltage DC circuits. The switch offers a 3-position operation with an Off-On-Start sequence, providing precise manual control over electrical systems requiring keyed access.
The unit is panel mountable equipped with a secure round bezel and a straight key. The 45° key index angle helps ensure clear positional feedback during operation. Electrical connections are made via Metri-Pack terminals, delivering sealed and dependable mating with compatible connectors for straightforward installation.
With a mechanical life rated at 25,000 cycles, this switch supports frequent use in demanding industrial and vehicular environments. Its wide operating temperature tolerance from -40°C to 85°C makes it suitable for both indoor and outdoor installations.
Compliant with RoHS directives, the key switch restricts hazardous substances, supporting environmentally responsible electronics manufacturing. Constructed with nylon and polypropylene housing materials. Brass switch contacts rated for 20A current capacity.
Three-position Off-On-Start operational mode. Metri-Pack terminal type for secure connections. Round bezel design with 45° key index angle. Mechanical life expectancy of 25,000 cycles. Operating temperature from -40°C to 85°C.
Suitable for ignition and automation control panels. Meets RoHS environmental standards.
This Honeywell Key Switch 84826-01 is ideal for industrial automation, commercial vehicle ignition systems, and electrical panels requiring keyed power control. For more options and professional-grade electrical components, explore the extensive range available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This key switch has a switch contact current rating of 20A, suitable for handling high current loads.
The Honeywell 84826-01 operates at a contact voltage of 12V DC, making it suitable for low-voltage systems.
It employs Metri-Pack terminals, ensuring sealed and reliable electrical connections for straightforward installation.
The switch has a mechanical life rated at 25,000 operational cycles, making it suitable for frequent use.
This model can operate within a wide temperature range from -40°C to 85°C, suitable for diverse environments.
It features a 3-position operation with an Off-On-Start sequence for precise control over electrical systems.
The housing is constructed from nylon and polypropylene, while the contacts are made of brass, providing mechanical reliability.
Yes, it meets RoHS environmental standards, which restrict hazardous substances in electronics manufacturing.
The key type for this model is straight, designed for ease of use in ignition and access control applications.
It features a round bezel shape with a 45° key index angle for clear positional feedback during operation.
This key switch is ideal for ignition control and access-controlled power switching in automation and vehicle panels.
The key switch is manufactured in Mexico, ensuring compliance with quality standards.
