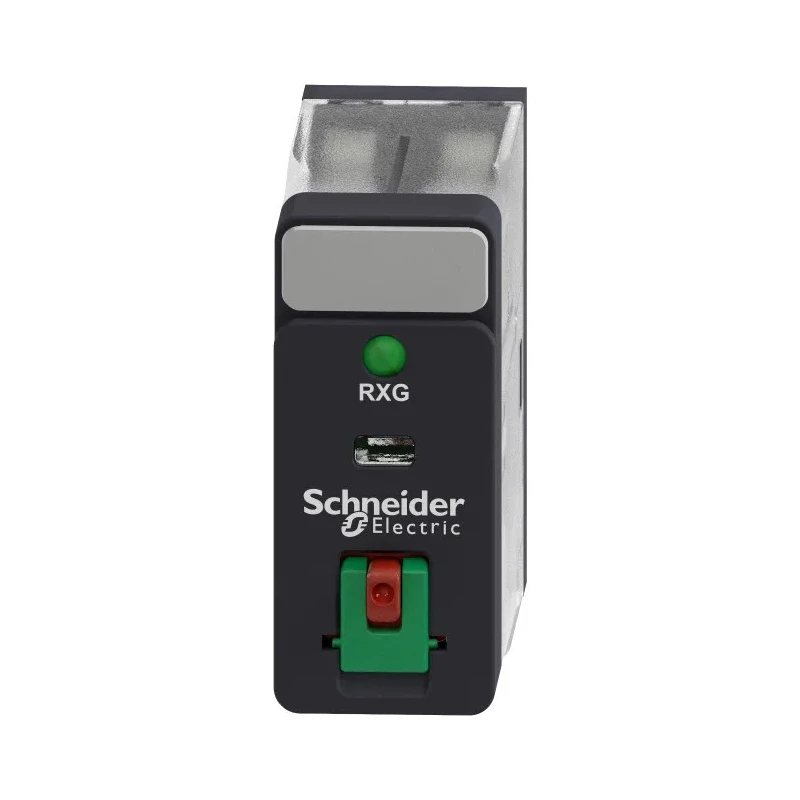

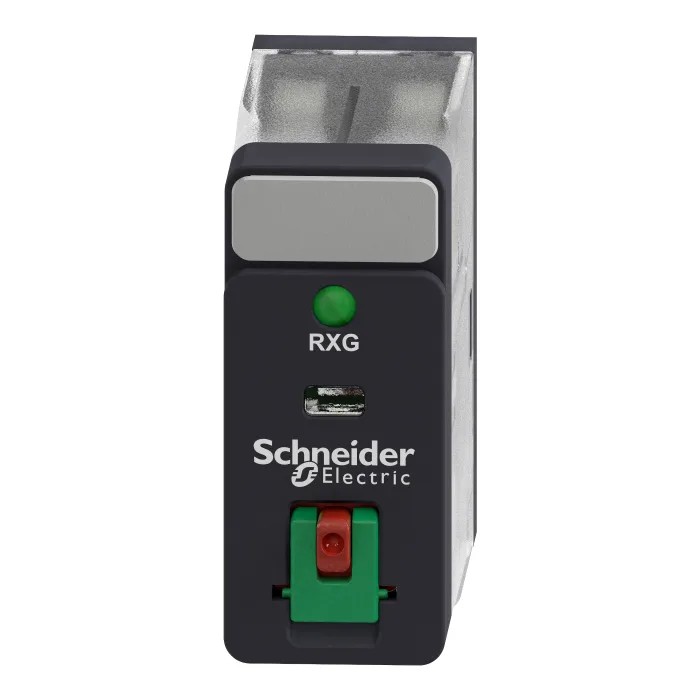

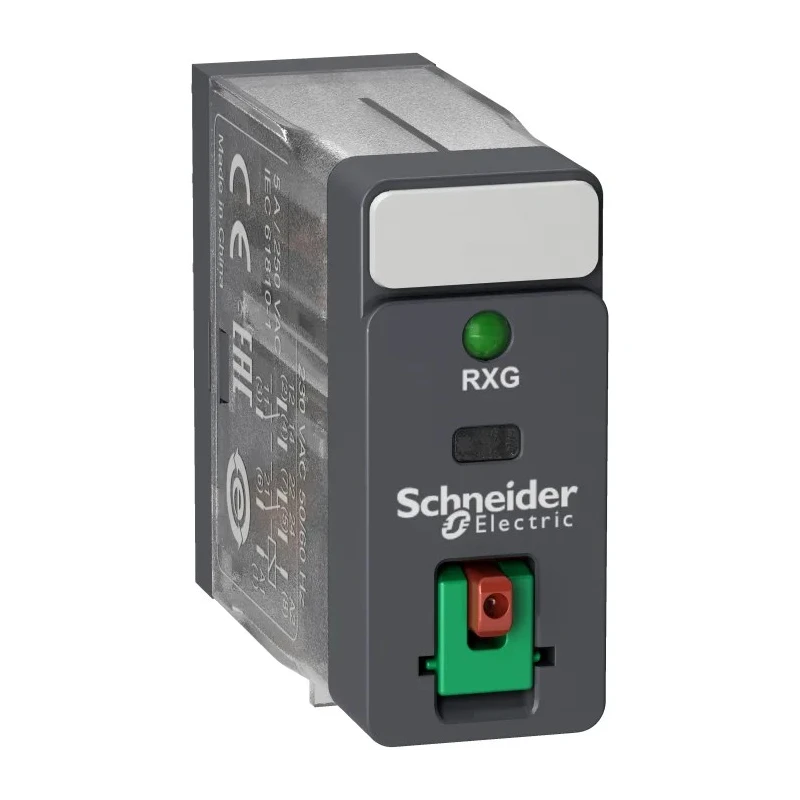

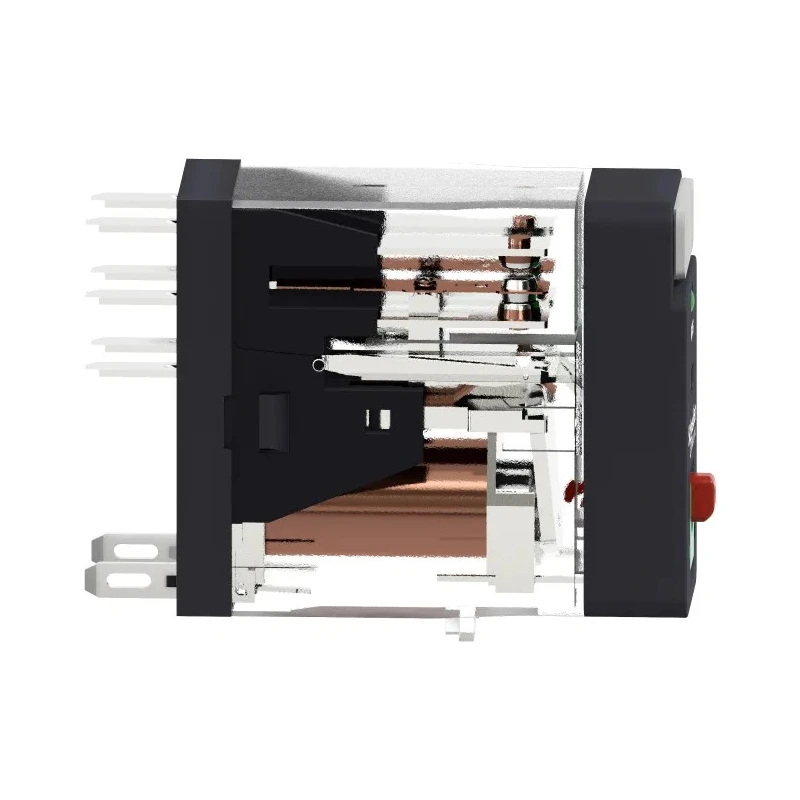

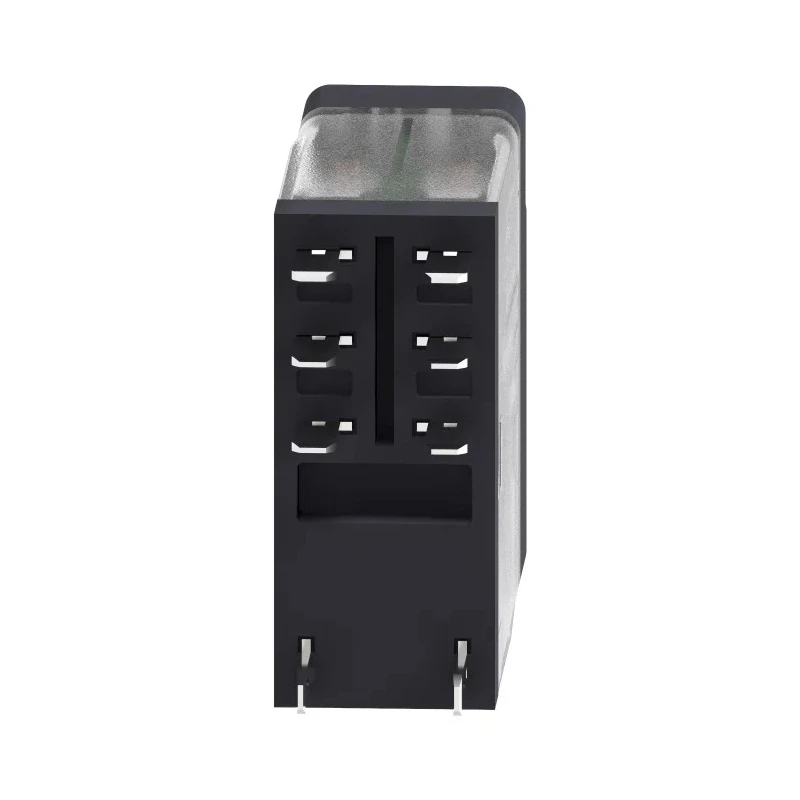

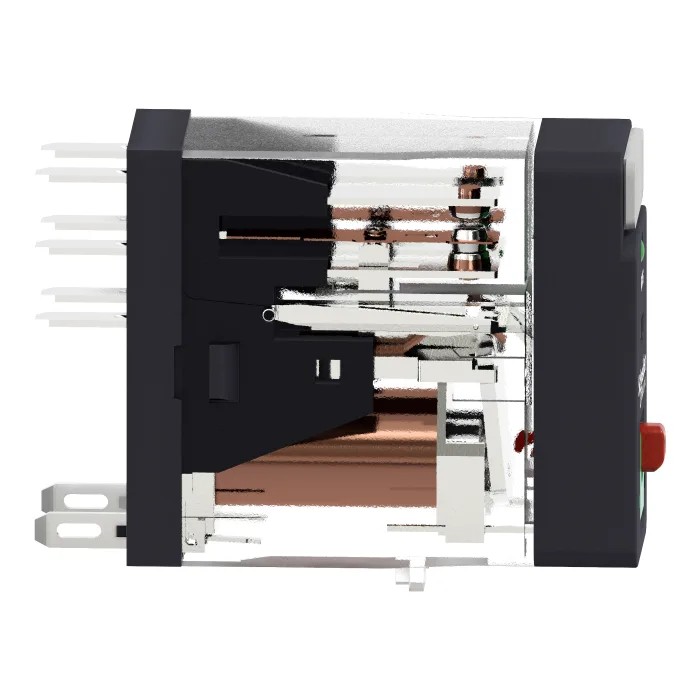

Schneider Electric Power Relay 24V ac Coil 5A Switching Current DPDT RXG22B7

Schneider Electric RXG22B7 power relay is a high-quality double pole double throw (DPDT) relay with a coil voltage of 24V AC and a 5A switching current. It belongs to the Harmony Relay RXG series known for its space-saving and reliable design for industrial automation and control systems. The relay offers plug-in faston pin terminals for secure connections and easy installation.

This relay operates efficiently across a wide temperature range from -40°C to 70°C, making it suitable for diverse industrial environments. The contact material is silver alloy, which ensures low resistance (100mΩ) and high electrical conductivity, thus enhancing long-term durability and performance.

Additional operational features include a lockable test button and LED status indicator, which facilitate convenient testing and clear status display both day and night. These features improve maintenance and reliability in hardwired logic and PLC interface applications.

Compact dimensions - height 37.1mm, width 30.6mm, and length 13mm - allow the relay to reduce enclosure size while maintaining high performance. It supports switching AC voltage up to 250V and DC voltage up to 30V with a switching power rating of 1.3kVA AC, fitting well for control circuits in industrial, manufacturing, and electrical automation use cases.

Certified with CE and CSA approvals, this relay is crafted with sustainability in mind and designed for easy disassembly. It helps enhance machine reliability and reduce enclosure sizes without compromising functionality. The relay is produced in China and is a Better World product by Schneider Electric, aligning with eco-friendly manufacturing principles.

Part of the Harmony Relay RXG series designed for reliable industrial control applications. Features a plug-in terminal type providing secure and fast connectivity. Operating temperature ranges from -40°C to 70°C ensuring robust performance.

Contact material is silver alloy for enhanced conductivity and durability. Includes a lockable test button and LED indicator for easy status monitoring. Compact size with dimensions approximately 37.1mm height, 30.6mm width, and 13mm length.

Switching power ratings of 1.3kVA AC and up to 30V DC. Designed for easy integration in PLC interface applications and automation systems. Manufactured in China with CE and CSA approvals. Explore more Schneider Electric products and Power Relays to optimize your industrial control and automation projects with high-quality components from EnvMart.
