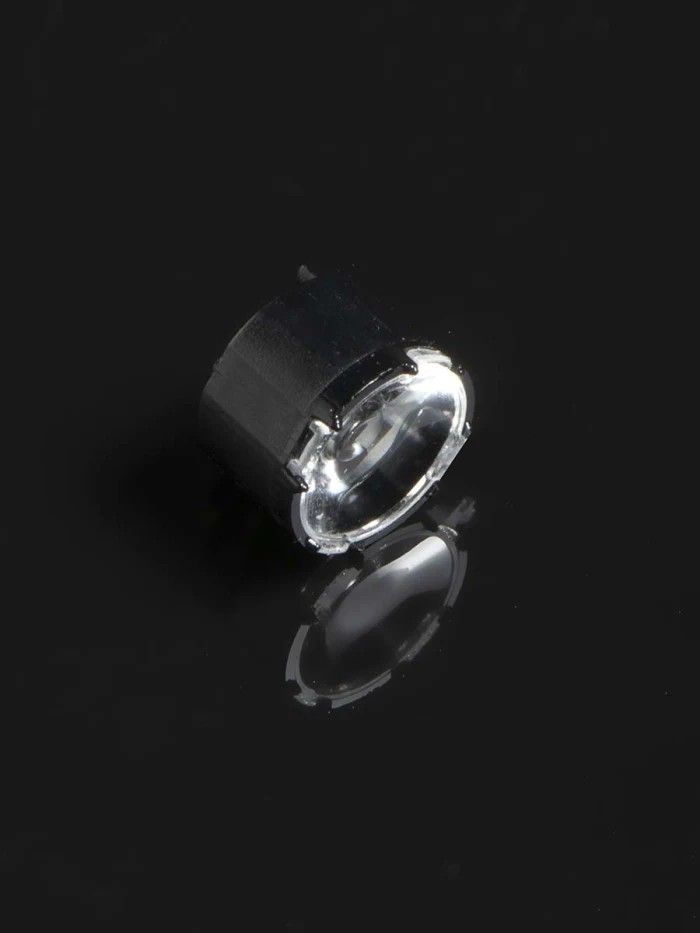

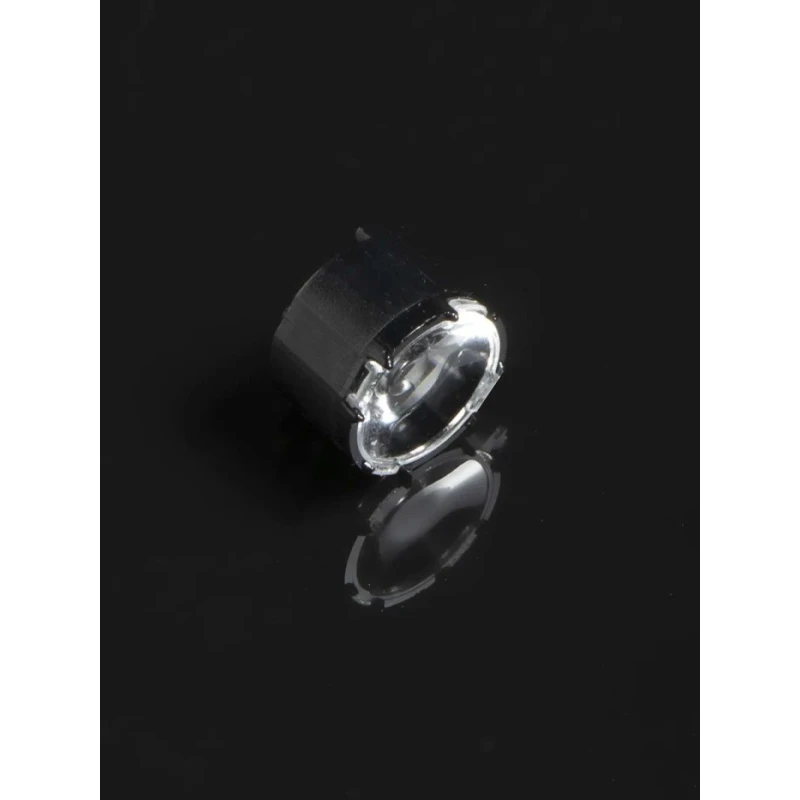

Ledil Lisa Series LED Optic & Holder Kit 15 ° Spot Beam 10mm Diameter 6.65mm Height FP16558_LISA3-RS-PIN
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 10mm |
| Brand | Ledil |
| Height | 6.65mm |
| Model | FP16558_LISA3-RS-PIN |
| Series | Lisa |
| Viewing angle | 15 ° |
| Number of Legs | 2 |
| Kit Contents | Holder, Lens |
| Standards/Approvals | RoHS Compliant |
| Emission Pattern | Spot |
| Lens Structure | Round |
Key Features
- Miniature TIR lenses suitable for jewellery shops, reading lights, torches, and headlamps.
- Achieves up to 90% light transmission efficiency through superior lens design and materials.
- Lens mounted in a molded polycarbonate housing for durability and stable physical integrity.
- Installation by locating pins ensures secure attachment to PCB, with optional mounting clips.
- Round lens structure optimized for spot beam emission pattern.
- Complies with RoHS standards ensuring environmentally safe materials.
- Compact size fitting within less than 10 mm diameter and under 7 mm height.
- Kit contains both holder and lens for ready integration.
Product Description
The Ledil FP16558_LISA3-RS-PIN belongs to the Lisa series of LED Optic & Holder Kits, designed to provide a precise 15 ° spot beam with round lens structure, specifically engineered for applications requiring quality focused lighting such as jewellery shops, reading lamps, torches, and headlamps. This miniature TIR lens achieves up to 90% light transmission efficiency, thanks to advanced design and high-grade materials.
Each lens is mounted securely within a molded polycarbonate (PC) housing that ensures robust physical durability and maintains optical integrity throughout the luminaire's lifespan. The optic mounts to PCBs employing locating pins and optional mounting clips, facilitating convenient installation and long-term mechanical stability.
The lens measures a compact 10 mm in diameter and 6.65 mm in height, tailored for use in small form-factor lighting fixtures where space constraints exist yet high optical performance is demanded. RoHS compliance guarantees that all materials meet stringent restrictions on hazardous substances, supporting eco-friendly manufacturing and disposal.
The kit comes complete with both the lens and holder components, enabling seamless assembly and integration into your LED lighting products or retrofit applications. The 15 ° spot beam emission pattern creates a narrow, concentrated light output ideal for highlighting or accent lighting purposes.
This LED optic and holder kit finds practical industrial use in sectors like electronic component manufacturing, commercial lighting installations, retail display systems, and specialized illumination projects. Its precise optics maximize light utilisation while its sturdy build assures reliable performance in rigorous environments.
Miniature TIR lenses delivering up to 90% light transmission efficiency. Polycarbonate housing ensures long-term durability and physical integrity. Insertion via locating pins for reliable PCB mounting. Compact 10 mm diameter, 6.65 mm height for tight space fits.
RoHS compliant materials support environmental safety. 15 ° spot beam emission pattern ideal for accent lighting. Complete kit includes both holder and lens components. Explore the range of Ledil LED Lenses & Reflectors and find compatible lighting components for your industrial, commercial, or specialized lighting projects at EnvMart.
Explore more products in our LED Lenses & Reflectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The emission pattern of this LED optic kit is a 15 ° spot beam, designed for focused lighting applications.
The lens has a diameter of 10 mm and a height of 6.65 mm, making it suitable for compact lighting fixtures.
The lens is mounted in a molded polycarbonate housing, ensuring durability and stable physical integrity.
Yes, this product complies with RoHS standards, ensuring that it is made from environmentally safe materials.
The kit contains both the holder and the lens, allowing for ready integration into lighting products.
The lens mounts securely to PCBs using locating pins, with optional mounting clips for additional stability.
This kit is designed for applications such as jewellery shops, reading lights, torches, and headlamps, where focused lighting is required.
The lens achieves up to 90% light transmission efficiency, thanks to its advanced design and materials.
The holder has 2 legs for secure mounting and stability during installation.
The optic features a round lens structure, optimized for its spot beam emission pattern.
The country of origin for this product is India.
This LED optic kit is beneficial in sectors like electronic component manufacturing, commercial lighting installations, and retail display systems.
