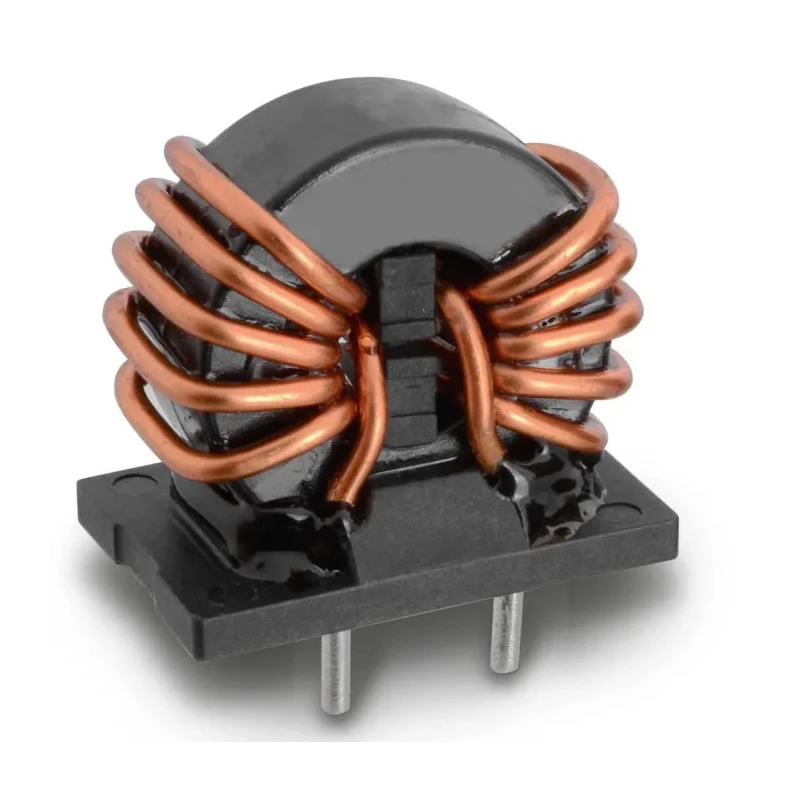

Wurth Elektronik 80 mH 600 mA Common Mode Choke 1 Ω 250V AC 7448020680
Specifications
| Country of Origin | China |
|---|---|
| Frequency range | 1 kHz-300 MHz |
| Brand | Wurth Elektronik |
| Operating Temperature | -40°C to +125°C |
| Height | 22mm |
| Length | 18mm |
| Depth | 14mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBNC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Nano Crystal |
| Inductance | 80mH |
| Standards/Approvals | RoHS, REACH, VDE, ENEC |
| Maximum DC Current | 600mA |
| Maximum DC Resistance | 1Ω |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder Pad |
| Choke Voltage | 250V ac |
Key Features
- Features an inductance tolerance range of -30 to +50 percent.
- Equipped with a high permeability nanocrystalline core material for enhanced performance.
- Supports a maximum operating temperature of 125°C and minimum of -40°C.
- Suitable for mounting via through hole with solder pad termination style.
- Offers a choke voltage rating of 250V AC and maximum DC resistance of 1 ohm.
- RoHS, REACH, VDE, and ENEC compliant ensuring quality and safety standards.
- Packaged in tray and carton suitable for industrial handling.
- Ideal for use in power electronics, power line filtering, and radio interference suppression.
Product Description
Wurth Elektronik 7448020680 Common Mode Choke features an inductance of 80 mH with a maximum DC current rating of 600 mA, suitable for high-performance EMI filtering applications. This choke operates reliably at temperatures ranging from -40°C up to 125°C and withstands a choke voltage of 250V AC. Its nanocrystalline core material offers very high permeability, enhancing isolation and noise suppression.
The device is mounted through hole with solder pad termination style, providing robust mechanical and electrical connections. It has compact dimensions of 18 mm in length, 22 mm in height, and 14 mm in depth, making it suitable for space-constrained electronic assemblies. The inductance tolerance ranges from -30 to +50 percent, ensuring stable operation under varying conditions.
This common mode choke covers a broadband frequency range from 1 kHz to 300 MHz, making it effective for suppressing radio interference in motors and power lines. It complies with international standards including RoHS, REACH, VDE, and ENEC, guaranteeing environmental and safety requirements are met. Packaging in tray and carton supports factory and industrial scale handling.
Industrial use cases include power electronics filtering, power line in- and output filtering, and suppression of common mode noise in commercial and industrial electrical equipment. The choke enhances electromagnetic compatibility and reduces interference in critical applications.
Inductance of 80 mH with 600 mA maximum DC current. Nanocrystalline core provides high permeability and stable inductance. Operating temperature range from -40°C to +125°C. Mount type is through hole with solder pad termination.
Rated for 250V AC choke voltage and 1 ohm maximum DC resistance. Compact size facilitates integration in tight spaces. Broad frequency range from 1 kHz to 300 MHz for noise suppression. Meets RoHS, REACH, VDE, and ENEC standards for quality and safety.
Packaged in tray and carton for easy industrial use. Browse the Electronics Components category at EnvMart for more high-quality EMI filters and protection devices from trusted brands including Wurth Elektronik.
Explore more products in our Common Products category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 80 mH.
This model has a maximum DC current rating of 600 mA.
The operating temperature range for this choke is from -40°C to 125°C.
The choke voltage rating is 250V AC.
The maximum DC resistance of this choke is 1 ohm.
This choke uses a solder pad termination style for mounting.
The frequency range for this model is from 1 kHz to 300 MHz.
The dimensions are 18 mm in length, 22 mm in height, and 14 mm in depth.
The core material used in this choke is nanocrystalline, providing high permeability.
This model complies with RoHS, REACH, VDE, and ENEC standards.
This choke is packaged in tray and carton suitable for industrial handling.
This common mode choke is suitable for power electronics, power line filtering, and radio interference suppression.
