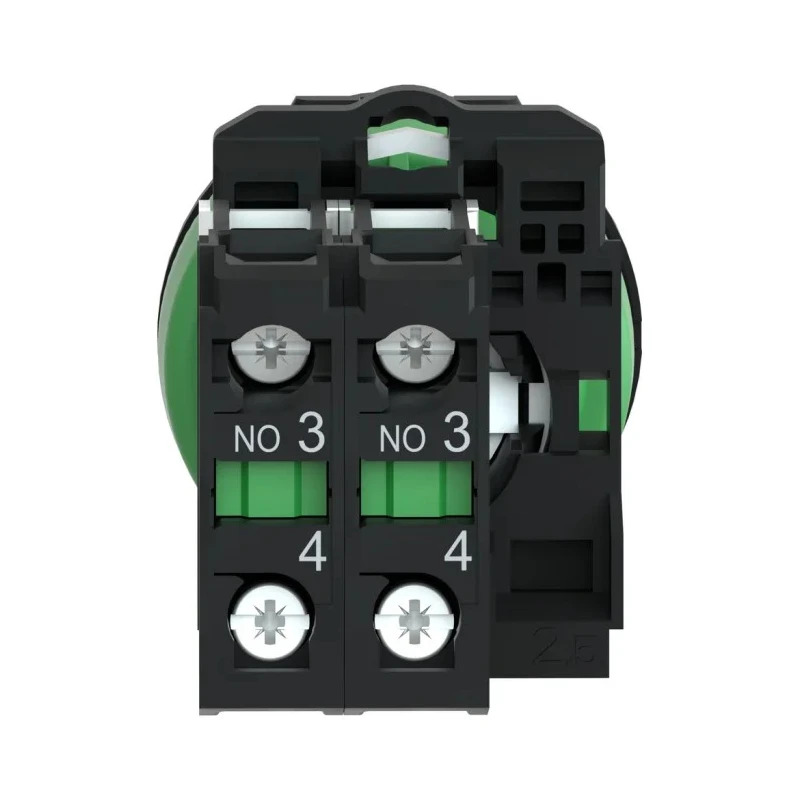

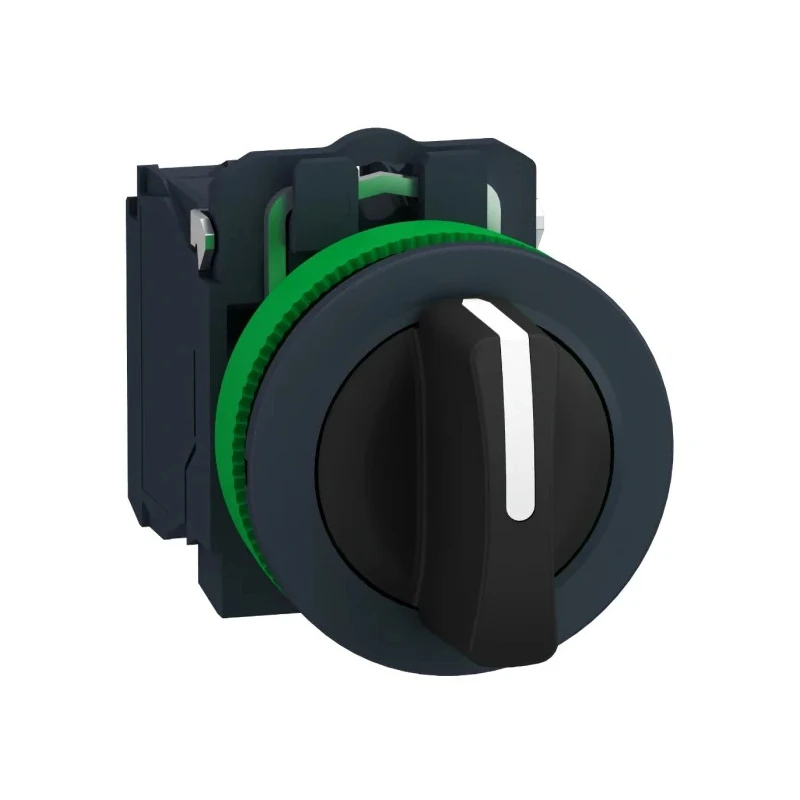

Schneider Electric Spring Return Selector Switch DPST 30mm Cutout Diameter 3 Positions XB5FD53
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XB5FD53 |
| IP Rating | IP67 |
| Series | XB5 |
| Contact Configuration | DPST |
| Actuator Type | Spring Return |
| Number of Positions | 3 |
| Terminal type | Screw |
| Standards/Approvals | CSA, UL |
| Switch Operation | Spring Return to Centre |
| Better World Claim | Repairable by the End User |
| Angle of Throw | 45 ° |
| Cutout Diameter | 30mm |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- Flush mounted design with ergonomic and aesthetic appeal.
- Three positions with ±45° spring return to centre operation.
- Black round standard handle with antimicrobial properties.
- IP67 rated for protection against dust and water ingress.
- Screw clamp terminal type for secure connections.
- Suitable for industrial environments including food, beverage, marine, and building infrastructure.
- High vibration resistance with shake-proof terminal screws.
- Certified to EN/IEC, CE, UL, CSA, NEMA, JIS, and marine standards.
Product Description
Schneider Electric XB5FD53 spring return selector switch is a DPST type with 3 positions and a 30 mm cutout diameter designed for flush mounting. This selector switch features a robust plastic body from the Harmony XB5 series, designed to provide ergonomic and aesthetic value with antimicrobial characteristics.
The switch has a black round actuator handle with a spring return to the centre mechanism with a ±45-degree angle of throw. It offers high chemical robustness, making it suitable for use in harsh industrial environments including cleaning solvents, alcohol, detergent, cutting oil, and milk processing industries.
With an IP67 rating, this selector switch ensures excellent protection against dust and water ingress, making it ideal for food and beverage sectors as well as marine and building infrastructure applications. Its screw clamp terminals enable reliable and secure wiring.
The compact design with a height of 42 mm, width of 36.6 mm, and weight of 43 grams allows for easy panel integration. The device delivers high vibration resistance supported by shake-proof terminal screws, ensuring long-term operational reliability in demanding industrial settings.
The switch meets multiple international approvals and certifications including EN/IEC standards, CE marking, UL, CSA, NEMA, JIS, and marine compliances, ensuring safety and quality. It includes 1 unit per package and can be easily installed using a cross-head screwdriver to a compatible panel cutout.
Flush mount design enhances ergonomic and aesthetic requirements. Spring return to centre operation with 3 positions ±45° throw. IP67 rating for dust and water protection. Screw clamp terminals for secure electrical connection.
Robust and chemical-resistant construction for harsh environments. Qualified certifications for industrial and marine use. Lightweight and compact dimensions for easy installation. Suitable for industrial, food, beverage, marine, and building sectors.
Offers versatile connection options including spring terminal and PCB connectors.
The Schneider Electric XB5FD53 Selector Switch delivers reliable performance and adaptability for a wide range of industrial automation and control applications. Explore the full range of Schneider Electric products on EnvMart for quality and innovative electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XB5FD53 selector switch has an IP67 rating, providing excellent protection against dust and water ingress.
This model requires a cutout diameter of 30 mm for proper installation.
The selector switch features three positions with a spring return to the centre operation.
It uses screw clamp terminals for secure electrical connections.
The dimensions are 42 mm in height and 36.6 mm in width, with a weight of 43 grams.
It is certified to CSA, UL, and other international standards, ensuring compliance and safety.
This switch is suitable for harsh industrial environments, including food and beverage, marine, and building infrastructure applications.
The actuator has an angle of throw of ±45 degrees.
The switch features a robust plastic body designed for ergonomic and aesthetic appeal.
The operation mechanism is a spring return to centre, allowing for easy resetting after selection.
Various connection options include screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
Installation can be easily done using a cross-head screwdriver to a compatible panel cutout.
