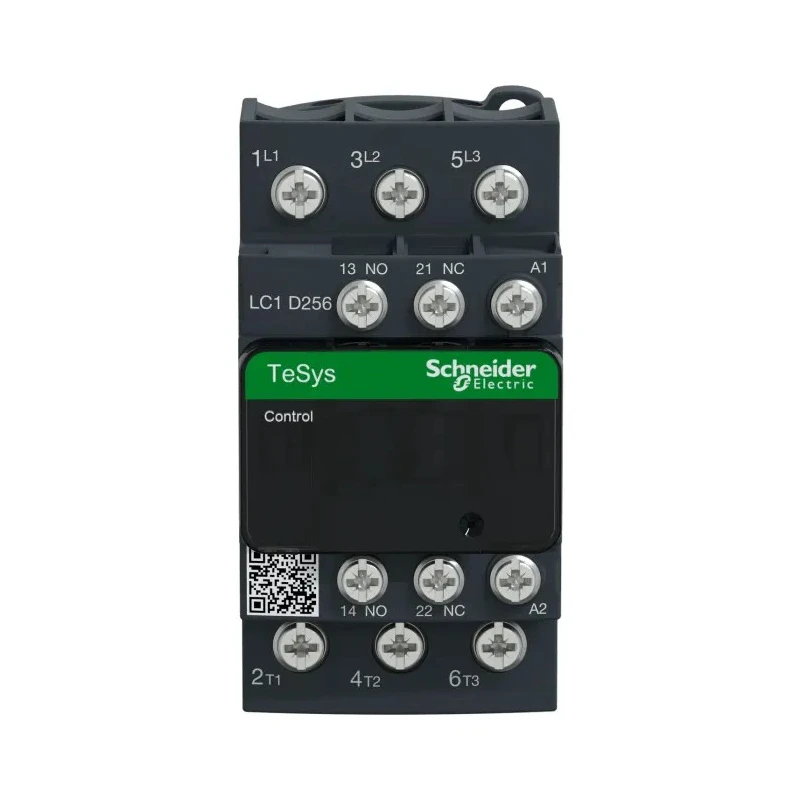

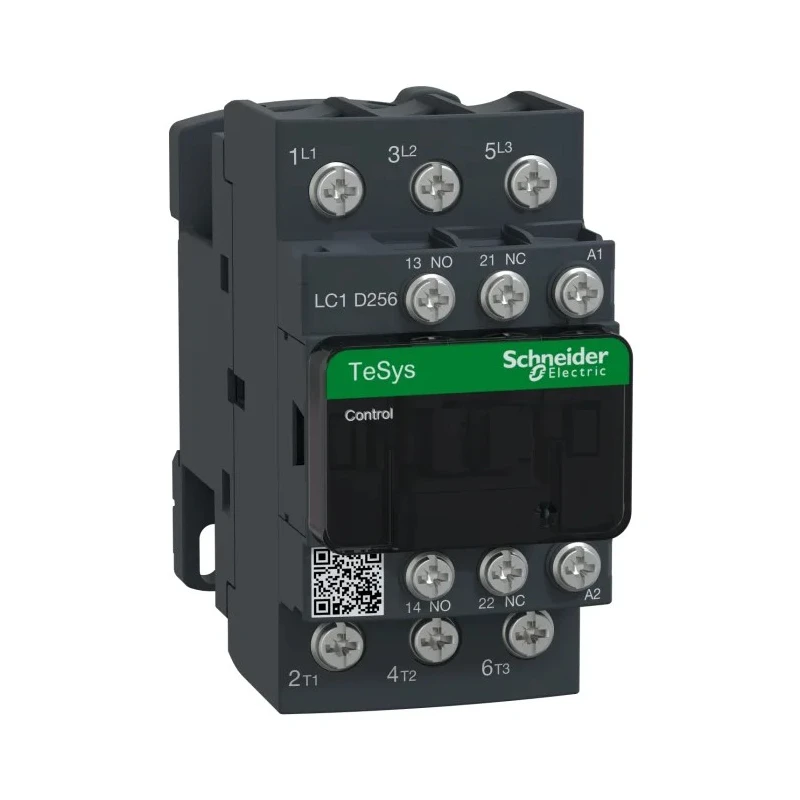

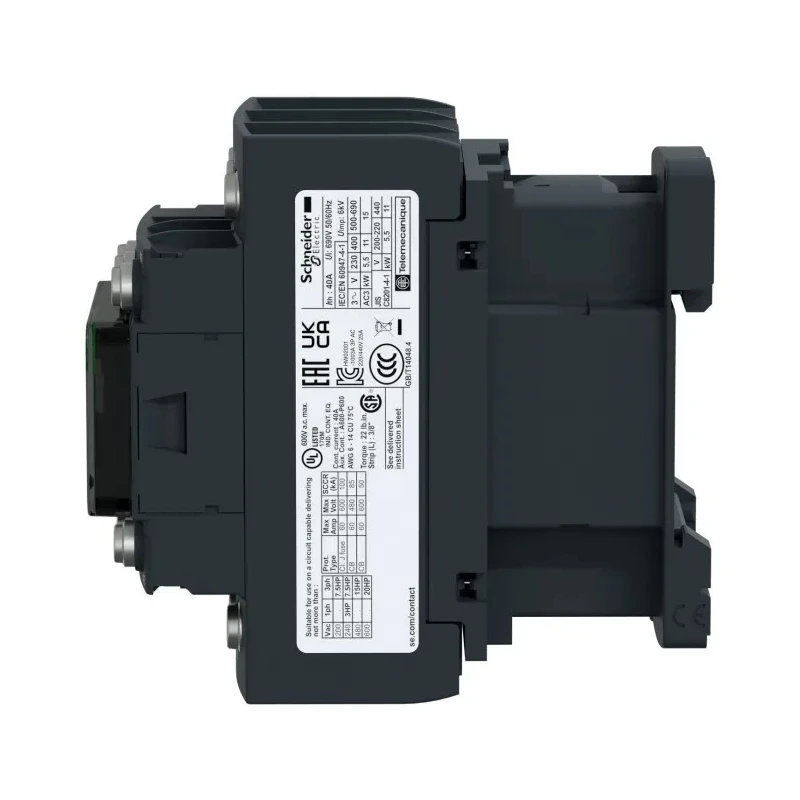

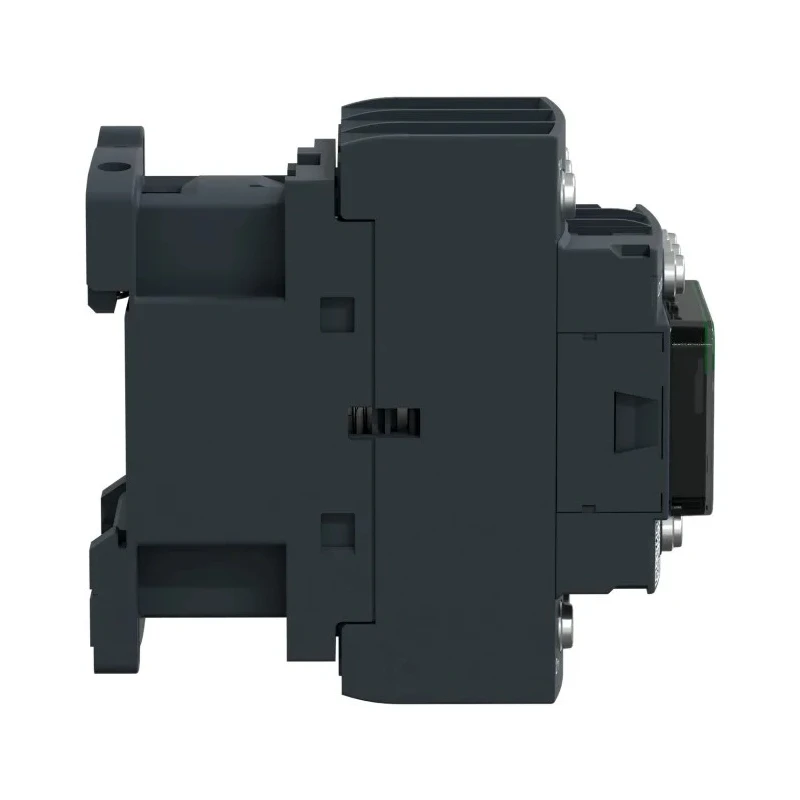

Schneider Electric LC1D Series Contactor, 230V AC Coil, 3-Pole, 25A, 15kW Power Rating, Reversing Function, DIN Rail Mount

Schneider Electric LC1D256U7 is a robust industrial contactor designed for motor control and resistive load switching. It operates with a 230V AC coil voltage and supports a contact current rating of 25A with power rating up to 15kW at 240V. The contactor includes a reversing function and utilizes a DIN rail mounting system for straightforward installation in electrical control cabinets.

The device is configured with a 3-pole contact design and incorporates two auxiliary contacts arranged as 1 Normally Open (NO) and 1 Normally Closed (NC), enhancing control circuit flexibility. Its lug ring terminal type ensures reliable electrical connections. With compact dimensions of 85mm width, 45mm length, and 92mm depth, the contactor fits seamlessly into standard industrial enclosures.

Designed to operate within temperatures from -5°C to +60°C, it can reliably function in a range of demanding environments. Contact voltage ratings of 300V and 690V DC provide adaptability for various electrical applications, facilitating use in automation systems, motor management, and load switching tasks.

This contactor complies with key industry standards including RoHS, CCC, CSA, EAC, IEC, and UL, ensuring quality and safety. Its construction supports environmentally conscious principles, being designed for disassembly to align with sustainability efforts.

Typical applications include motor control in manufacturing plants, automation processes, resistive load management, and industrial electrical distribution systems. Schneider Electric's LC1D256U7 model is engineered for long-term durability and reliable performance in diverse industrial settings.

Equipped with a 230V AC coil for standard industrial power systems. Provides 3 pole contacts supporting up to 25A current for efficient load handling. Features reversing function and 1 NO plus 1 NC auxiliary contacts for versatile control.

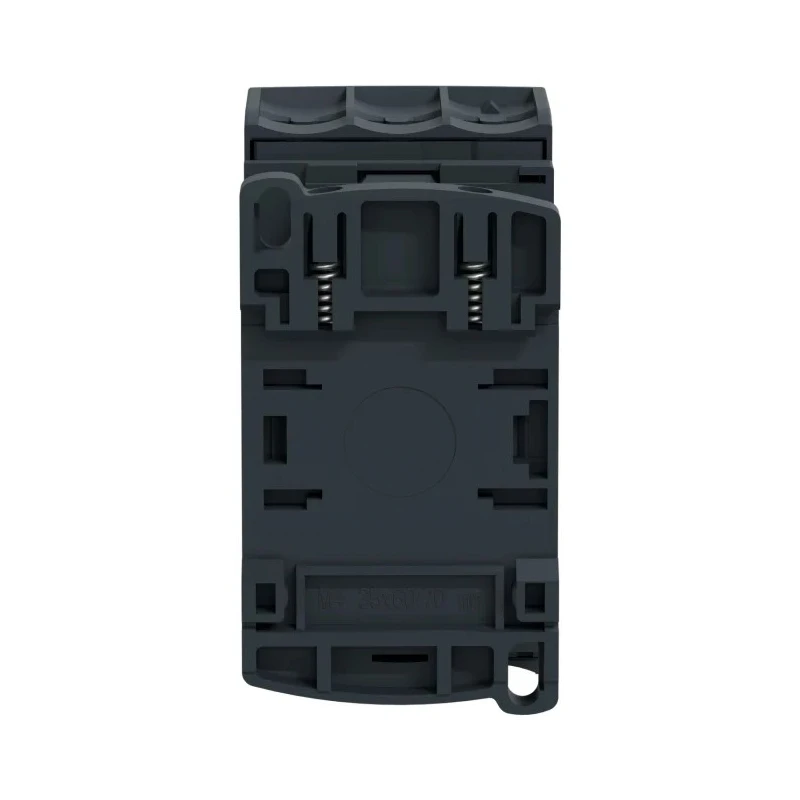

DIN rail mounting allows easy installation in control panels. Compact dimensions of 85mm width, 45mm length, and 92mm depth fit standard enclosures. Operational temperature range from -5°C to +60°C suitable for diverse environments.

Contact voltage supports 300V and 690V DC for flexible applications. Explore our comprehensive range of Contactors and control gear at EnvMart for reliable industrial automation and electrical management solutions.
