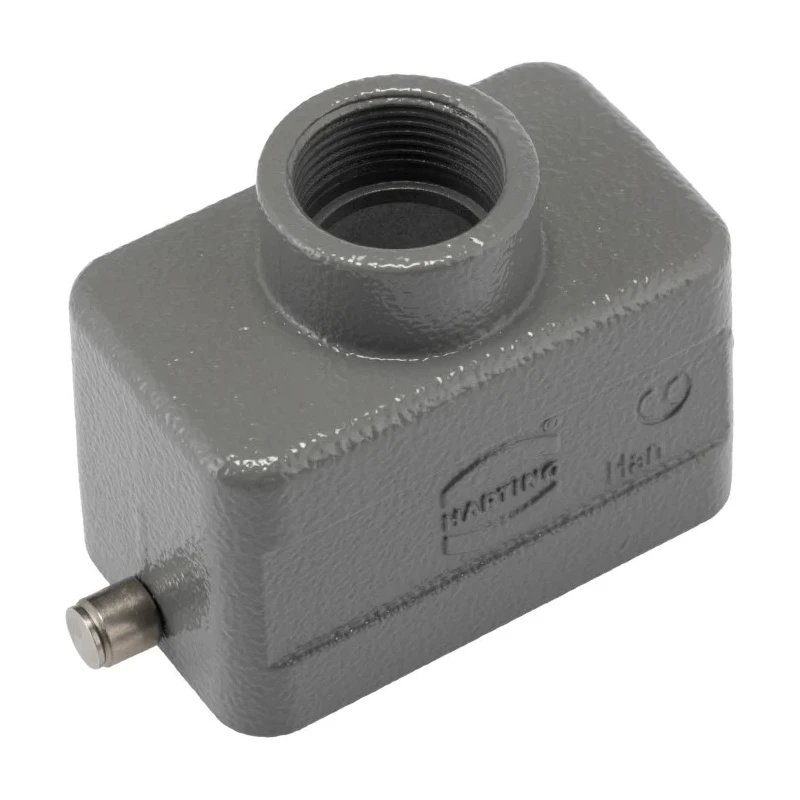

HARTING Han B Range Top Entry Hood Die Cast Aluminium Body M25 Thread IP65, IP66, IP67 19300101441

HARTING 19300101441 Top Entry Hood is a heavy duty Power Connector Housing featuring a die cast aluminium body that provides superior mechanical strength and corrosion resistance. Its top cable entry angle facilitates neat vertical cable routing and effective strain relief, ideal for complex industrial environments.

This hood employs a single lever locking system for swift and secure connection engagement and release, improving maintenance efficiency. Rated to IP65, IP66, and IP67, it delivers high levels of protection against dust ingress, water jets, and temporary immersion, making it suitable for demanding applications.

Manufactured in Germany, it holds certifications including UL, CSA, UL 1977 ECBT2.E235076, DNV GL, and CSA-C22.2 No. 182.3 ECBT8.E235076, confirming compliance with rigorous safety and performance standards for electrical and maritime industries.

Common applications include automation cabinets needing sealed connector access, electrical control panels in harsh or wet production environments, and machine interfaces that require reliable top-entry cable routing. The component is also suitable for maritime or offshore equipment subject to strict environmental demands.

The die cast aluminium body assists in thermal dissipation and maintains connector alignment under mechanical loads. The single lever locking reduces the steps needed for installation, enabling quicker mating and demating during service or reconfiguration.

Die cast aluminium body ensures high mechanical strength and corrosion resistance. Top cable entry angle allows neat vertical cable routing and ease of strain relief. Single lever locking mechanism offers quick and secure engagement and release.

Rated IP65, IP66, and IP67 for excellent protection against dust, water jets, and temporary immersion. Certified to UL, CSA, DNV GL standards for industrial and maritime applications. Suitable for electrical panels, automation cabinets, and machine interfaces requiring sealed connector access.

Designed for use in harsh, wet, or offshore environments demanding robust enclosure performance. Compact solution for heavy-duty connector installations with reliable thermal dissipation. Thread size M25 for compatible cable connection fittings.

Manufactured in Germany ensuring quality and conformity to international standards.

This product is part of the HARTING Han B series, and specifically serves as a top entry hood to ensure effective and reliable connector protection in industrial power connector assemblies. Explore more connectors and housings by HARTING in the EnvMart catalog for industrial, electrical, and automation applications.
