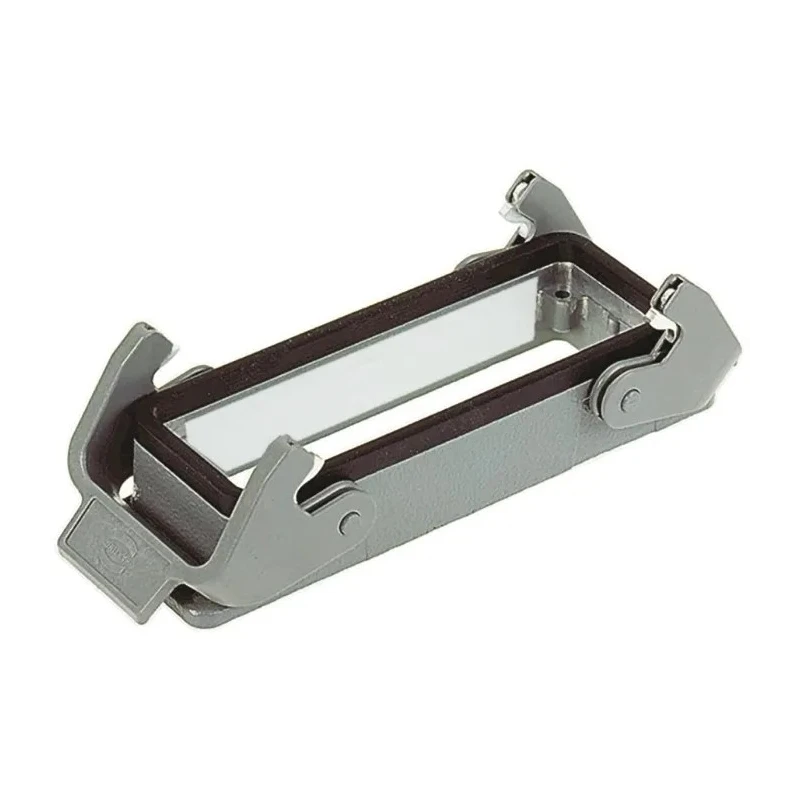

HARTING 0934 Range Heavy Duty Power Connector Housing Bulkhead Polycarbonate IP65 09340100301

Free Delivery in India | Lowest Global Shipping Charges

HARTING 0934 Range Heavy Duty Power Connector Housing Bulkhead Polycarbonate IP65 09340100301

Name: HARTING 0934 Range Heavy Duty Power Connector Housing Bulkhead Polycarbonate IP65 09340100301
Brand: HARTING
SKU: 255652
Price: 53.76 USD
Availability: InStock



Category Heavy Duty Power Connector Housing Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Body Material	Polycarbonate
IP Rating	IP65
Mount Type	Bulkhead
Series	0934
Sub Type	Housing
For Use With	Han B standard Hood/Housing, Han Hv E Housings
Standards/Approvals	DIN EN 60 512-5-2, DIN EN 61 984, UL 94 V 0, DIN EN 60 664-1
Number of Levers	2
RS PRO Connector Housing 1, 10BBrand	RS PRO

Key Features

Constructed with durable polycarbonate material for robust use.
Bulkhead mount type ensures secure and reliable installation.
Rated for 16A current and 830V voltage applications.
Complies with IP65 rating providing protection against dust and water jets.
Equipped with two levers for improved mating and locking.
Compatible with Han B standard and Han HV E housings for versatile use.
Supports over 500 mating cycles ensuring longevity and reliability.
Operating temperature range from -40 to +125 degrees Celsius.

Product Description

HARTING 09340100301 Heavy Duty Power Connector Housing from the 0934 series is designed for demanding industrial applications requiring durable and reliable connections. The housing features a polycarbonate body material with a bulkhead mount type, rated at 16A current and 830V voltage. It offers IP65 protection, making it resistant to dust ingress and water jets, suitable for harsh operating environments.

This connector housing is compatible with Han B standard hoods and housings, as well as Han HV E housings, providing flexibility for complex configurations. It includes two robust levers for secure mating operations, supporting over 500 mating cycles, which ensures a long service life even under frequent usage.

The operating temperature range from -40 to +125 degrees Celsius accommodates a wide spectrum of industrial thermal conditions. The product complies with international standards DIN EN 60 512-5-2, DIN EN 61 984, UL 94 V 0, and DIN EN 60 664-1 to ensure quality, safety, and durability.

The Han-Modular system allows a variety of insert configurations within one connector assembly, enabling tailored connection needs for signal, power, and pneumatic applications. HARTING also offers compatible crimping tools to ensure reliable connection assembly with different levels of automation.

Constructed with durable polycarbonate material for robust use. Bulkhead mount type ensures secure and reliable installation. 16A rated current and 830V voltage capacity. IP65 rated for protection against dust and water jets.

Equipped with two levers for enhanced connection stability. Compatible with Han B standard and Han HV E housings. Designed for over 500 mating cycles enhancing longevity. Wide operating temperature range from -40 to +125 degrees Celsius.

Conforms to DIN EN 60 512-5-2, DIN EN 61 984, UL 94 V 0, and DIN EN 60 664-1 standards.

This high-quality connector housing is ideal for industrial, manufacturing, electrical installation, and automation applications requiring reliable power connection solutions. Explore more HARTING heavy duty power connectors and accessories at EnvMart.
