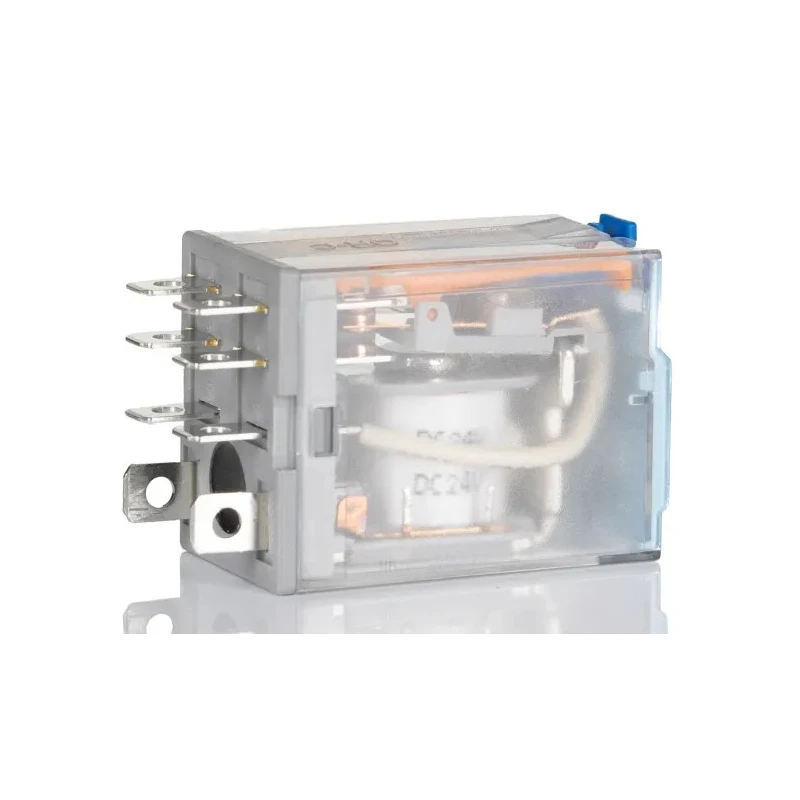

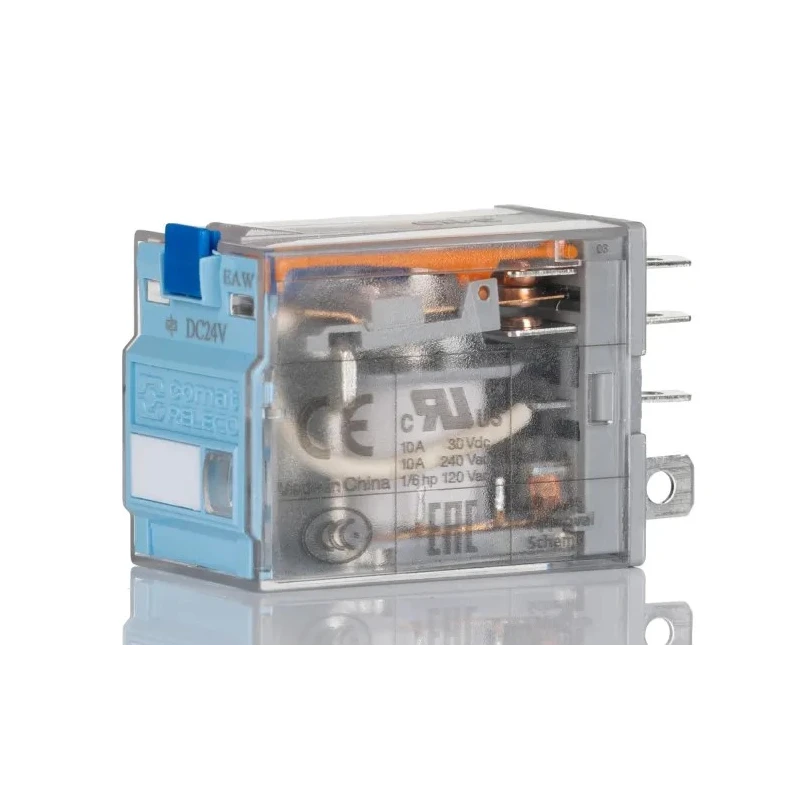

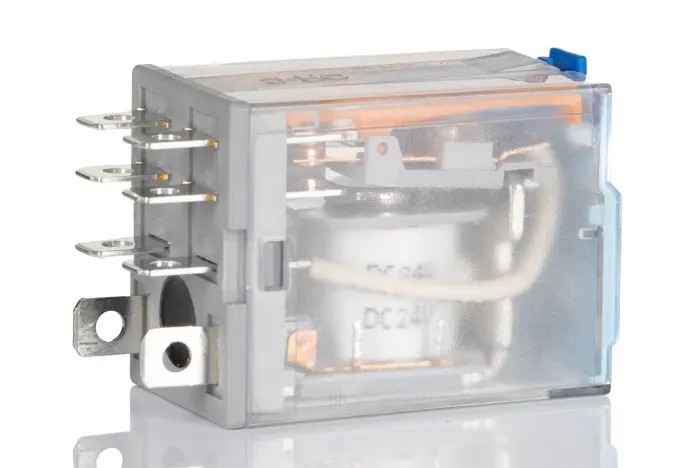

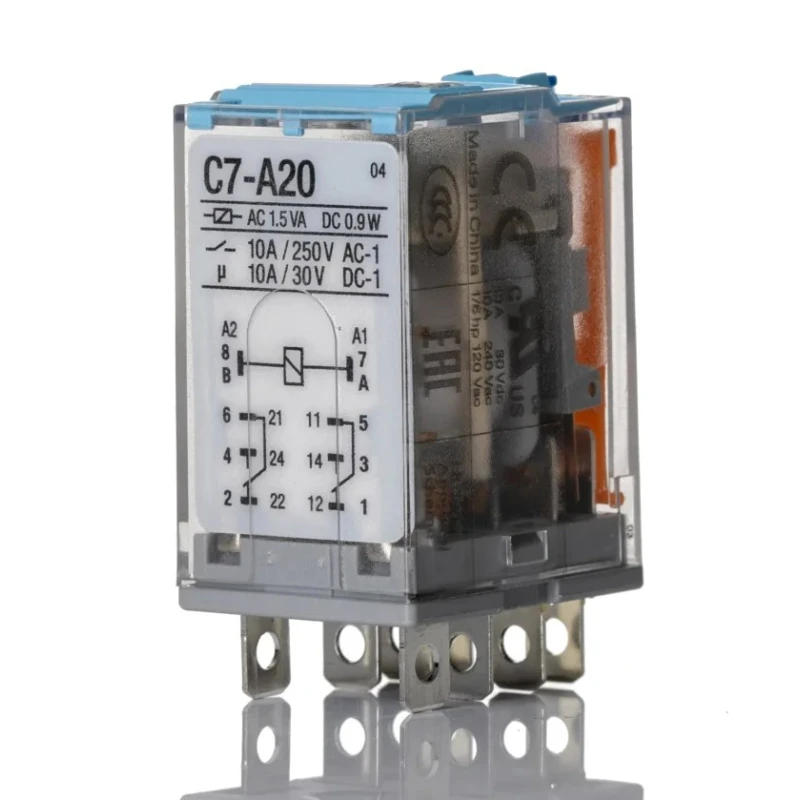

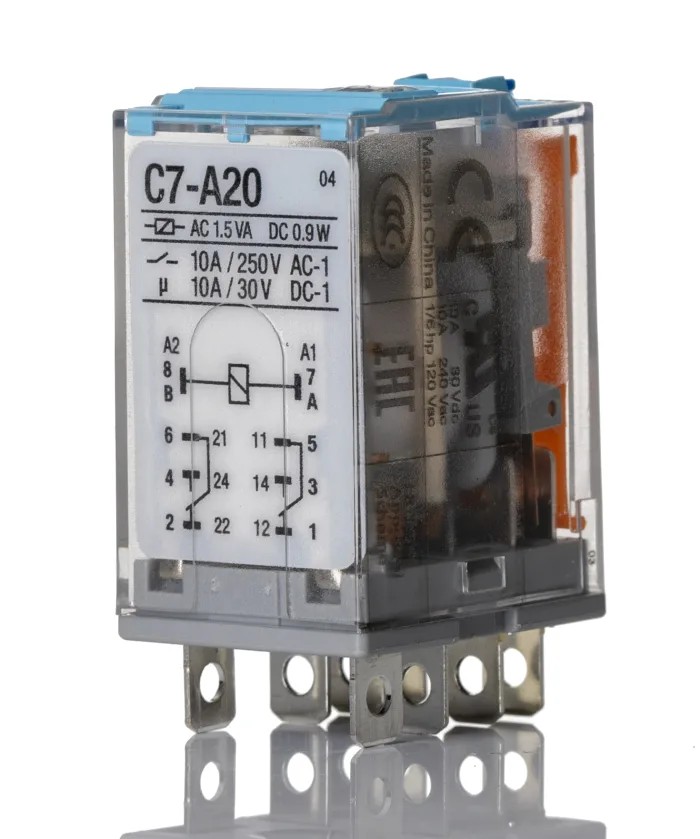

Turck Power Relay, 24V dc Coil, 10A Switching Current, DPDT, Plug-In, Silver Alloy Contacts, C7-A20/024VDC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Turck |
| Height | 37.5mm |
| Length | 21mm |
| Model | C7-A20/024VDC |
| Width | 28mm |
| Contact Material | Silver Alloy |
| Series | C7-A20 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, RoHS |
| Coil Resistance | 594Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1W |
Key Features
- The relay uses a plug-in terminal type for easy installation.
- Silver alloy contacts ensure high conductivity and corrosion resistance.
- Suitable for operating temperatures from -40°C to +70°C for demanding environments.
- Compact size with dimensions 37.5mm height, 21mm length, and 28mm width.
- Switching power ratings are 2.5 kVA, 220V dc, and 250V ac for versatile applications.
- Coil resistance is 594 ohms with a coil power of 1 watt for efficient operation.
- Designed for industrial use including motor starters, manufacturing equipment, and cold storage.
- Response time is between 8 and 16 milliseconds for fast switching cycles up to 1200 per hour.
Product Description
Turck C7-A20/024VDC power relay is an 8-pin device featuring a 24V dc coil and double-pole double-throw (DPDT) contact configuration. It is designed for swift electrical switching operations with an electromagnetic coil and reliable plug-in terminal connection.
This relay supports a switching current of 10A and is capable of handling switching power up to 2.5 kVA, with switching voltages up to 220V dc and 250V ac. The coil operates with a resistance of 594 Ω and consumes 1 watt of power.
Operating over a wide temperature range from -40°C to +70°C, this relay is suitable for challenging industrial environments. The compact dimensions of 37.5 mm height, 21 mm length, and 28 mm width allow fitting into tight setups easily.
Silver alloy contacts provide superior conductivity and resistance to corrosion, enhancing switching reliability. The relay achieves response times between 8 and 16 milliseconds, making it efficient for demanding applications.
The design supports up to 1200 switching cycles per hour, and the product offers an electrical service life expected to reach 100,000 operations. Typical industrial applications include motor starters, manufacturing equipment controls, and cold storage systems.
The relay connects using FASTON terminals enabling swift unplugging if necessary. Its plug-in construction allows easy installation into compatible sockets (such as RS stock no. 842-3892). Compliance with CE and RoHS standards ensures quality and environmental safety.
This power relay is ideal for electrical, automation, and industrial control systems requiring dependable switching performance. Browse EnvMart’s range of Power Relays to find compatible components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10A, making it suitable for various industrial applications.
This model has compact dimensions of 37.5 mm in height, 21 mm in length, and 28 mm in width.
The relay operates with a coil voltage of 24V dc, which is essential for its functionality.
It can handle a maximum switching voltage of 220V dc and 250V ac, providing versatility for different applications.
The relay features a double-pole double-throw (DPDT) contact configuration, allowing for flexible switching options.
The response time for this relay is between 8 and 16 milliseconds, enabling efficient switching cycles.
It operates effectively within a temperature range of -40°C to +70°C, suitable for demanding environments.
The contacts are made of silver alloy, ensuring high conductivity and corrosion resistance.
It uses a plug-in terminal type for easy installation, allowing for swift unplugging if necessary.
The relay complies with CE and RoHS standards, ensuring quality and environmental safety.
The coil resistance is 594 ohms, which is important for its operational efficiency.
It is designed for industrial applications including motor starters, manufacturing equipment controls, and cold storage systems.
