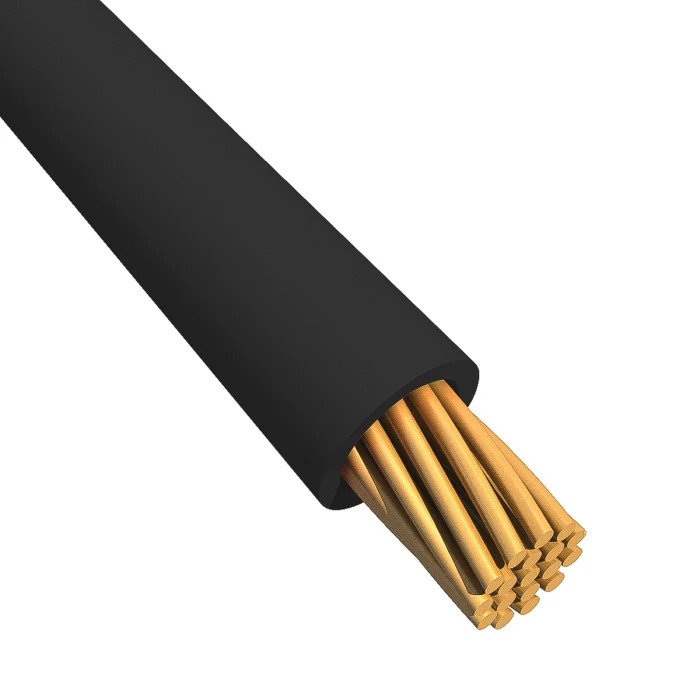

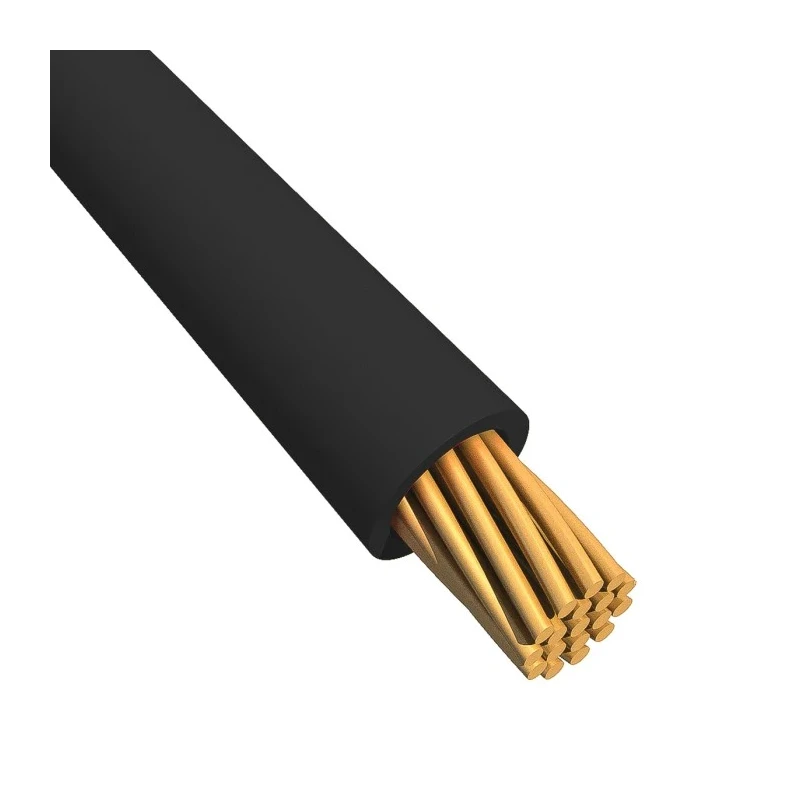

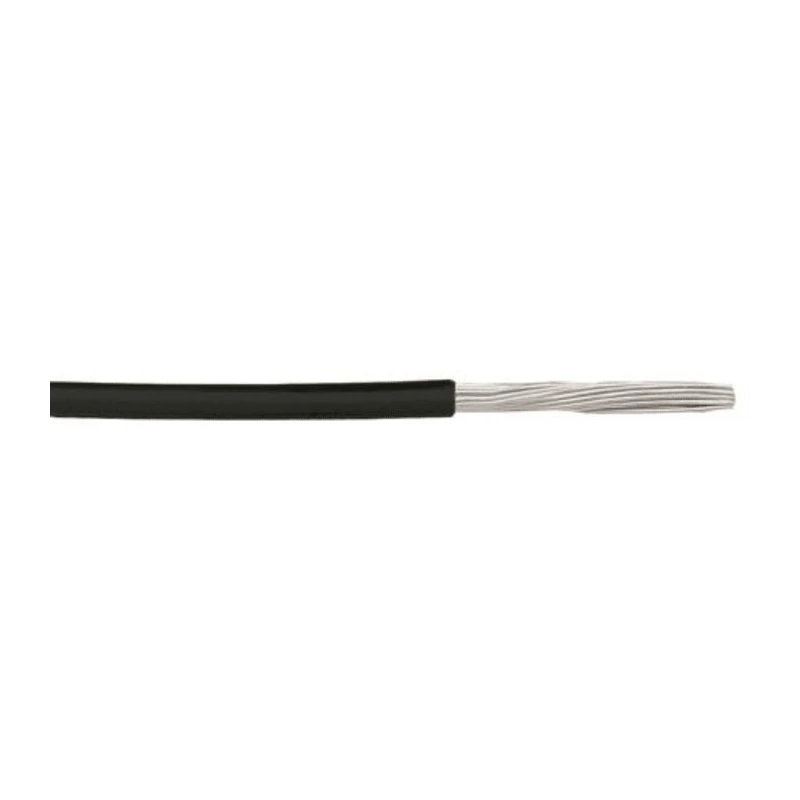

Alpha Wire Ecogen Ecowire Series Black 1.3 mm² 16 AWG Hook Up Wire, 305 m Length, MPPE Jacket, 600V, Flame 6716 BK001

Alpha Wire 6716 BK001 is a high-quality hook up wire from the Ecogen Ecowire series featuring a 1.3 mm² cross sectional area with 26 strands of 0.25 mm core and a total length of 305 meters. It is jacketed in black MPPE material, known for its excellent thermal stability and chemical resistance, making it ideal for demanding electrical environments.

This 16 AWG wire is designed for high temperature operation, safely rated for voltages up to 600V and temperatures ranging from -40°C to a maximum of 105°C. The conductor is made of tinned copper, which enhances electrical conductivity and corrosion resistance, ensuring long life and reliable signal transmission.

The MPPE jacket provides flame retardant, low smoke halogen free fire behaviour complying with international safety standards including CE, CSA, UL, and UKCA. Its unshielded design allows flexible and straightforward installation in complex wiring circuits and tight spaces, ideal for the electrical, laboratory, industrial automation, and manufacturing sectors.

This wire supports voltage ratings up to 600V for industrial and commercial use. Rated for maximum operating temperature of 105°C and minimum of -40°C. Tinned copper conductor material provides excellent corrosion resistance and conductivity.

The MPPE insulation offers flame retardant and low smoke halogen free properties. Unshielded design allows easy installation in tight and complex wiring environments. Complies with CE, CSA, UKCA, and UL standards ensuring safety and reliability.

Suitable for automation and high temperature electrical applications requiring durable wiring. The wire outer diameter is 2.06 mm with a 0.3 mm insulation thickness for mechanical durability.

This hook up wire is specifically suitable for automation system wiring, electronic devices requiring reliable electrical connections, heat resistant mechanical equipment, and environments demanding compliance with UKCA wiring specifications. Its high temperature tolerance and durable MPPE insulation ensure stable performance in harsh industrial settings.
