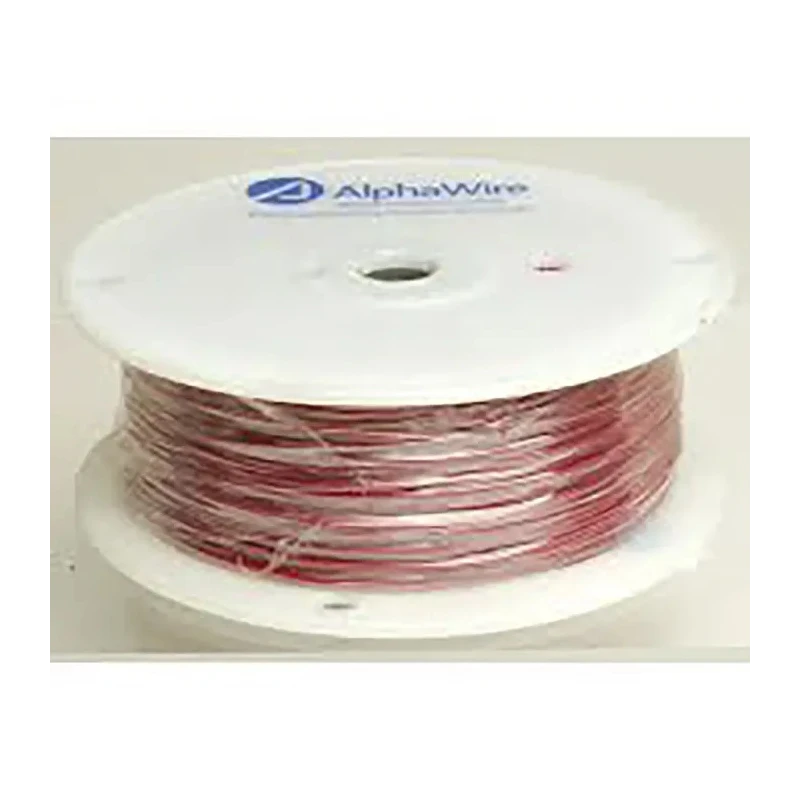

Alpha Wire Ecogen Ecowire Plus Series Red 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm Strands, 305 m Length, MPPE 6821 RD001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.13mm² |
| Model | 6821 RD001 |
| Cable Length | 305m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.89mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.035 Inch (0.89 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 26 AWG (0.14 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke |
| American Wire Gauge | 26AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.16mm |
| Size of Strands | 0.16mm |
| Stranding | 7/34 (7 x 0.16) |
Key Features
- Constructed with stranded bare copper conductors for excellent conductivity.
- Features flame retardant, halogen free, and low smoke MPPE insulation for industrial safety.
- Rated for voltages up to 300 V with temperature tolerance from -40°C to +110°C.
- Wire diameter is 0.89 mm ensuring compact and efficient wiring installation.
- Complies with CE, ISO 6722, RoHS, and REACH standards for quality and environmental safety.
- Designed to withstand oils, solvents, fuels, and hazardous fluids in demanding applications.
- EcoWire Plus series offers improved fluid resistance and higher temperature range than standard wires.
- Suitable for industrial, solar, transportation, wind power, and medical equipment wiring.
Product Description

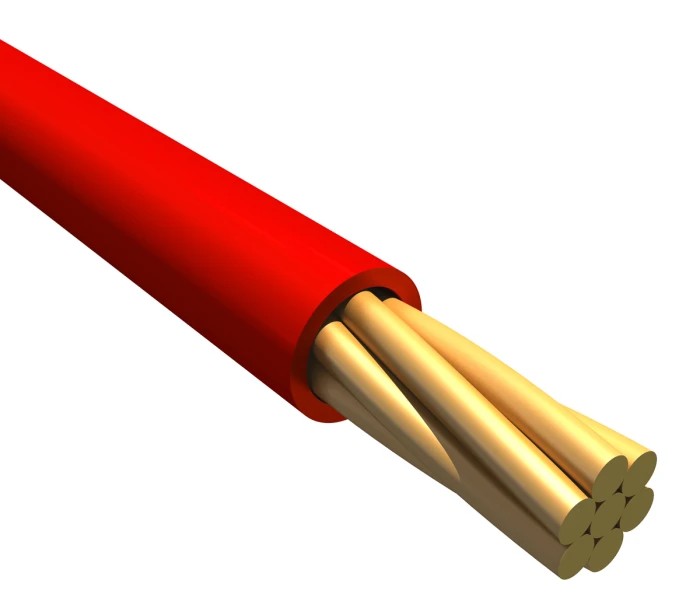

Alpha Wire 6821 RD001 Ecogen Ecowire Plus Series features a 0.13 mm² cross-sectional area Hook Up Wire designed with 26 AWG stranded copper conductors. This wire offers superior electrical performance with seven 0.16 mm strands, resecting a compact 0.89 mm wire diameter. The insulation is made from modified polyphenylene ether (MPPE), which provides outstanding flame retardant properties, halogen-free safety, and low smoke emission.
The EcoWire Plus insulation improves fluid resistance and operating temperature range, making it suitable for harsh industrial environments. It operates reliably at up to 300 V and tolerates temperatures from -40°C to +110°C, providing versatility in various applications.
This cable meets recognized standards including CE, ISO 6722, RoHS, and REACH, ensuring compliance with safety, environmental, and quality regulations. The 305-meter length reel supports extended wiring projects without frequent changeovers.
EcoWire Plus cables are ideal for demanding uses such as solar power installations, transportation systems, wind turbines, and medical devices. Their resistance to oils, solvents, fuels, and hazardous fluids makes them durable in challenging conditions.
The use of mPPE insulation not only enhances performance but also contributes to sustainability by being fully recyclable and free of halogens and heavy metals, thereby aligning with Waste Electrical and Electronic Equipment (WEEE) requirements.
Stranded bare copper conductors increase flexibility and conductivity. MPPE insulation ensures low smoke, flame retardancy, and halogen-free safety for industrial use. Wide temperature tolerance supports diverse environmental conditions.
Meets key international standards for safety and environmental compliance. Long cable length for efficient deployment in large-scale projects. Resistant to hazardous fluids, ideal for industrial and automotive applications.
Discover more Alpha Wire products for wire and cable solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire diameter of this model is 0.89 mm (0.035 inches).
It is rated for a maximum voltage of 300 V.
This wire can operate in a temperature range from -40°C to +110°C.
The wire is insulated with modified polyphenylene ether (MPPE), which is flame retardant, halogen-free, and low smoke.
The wire is provided in a length of 305 meters.
The conductors are made of stranded bare copper for excellent conductivity.
It complies with CE, ISO 6722, RoHS, and REACH standards.
The conductor consists of seven strands of 0.16 mm each.
The cross-sectional area of this wire is 0.13 mm².
The jacket color of this wire is red.
Yes, it is suitable for industrial applications, including solar power, transportation, and medical equipment wiring.
The insulation thickness is 0.008 inches (0.20 mm).
