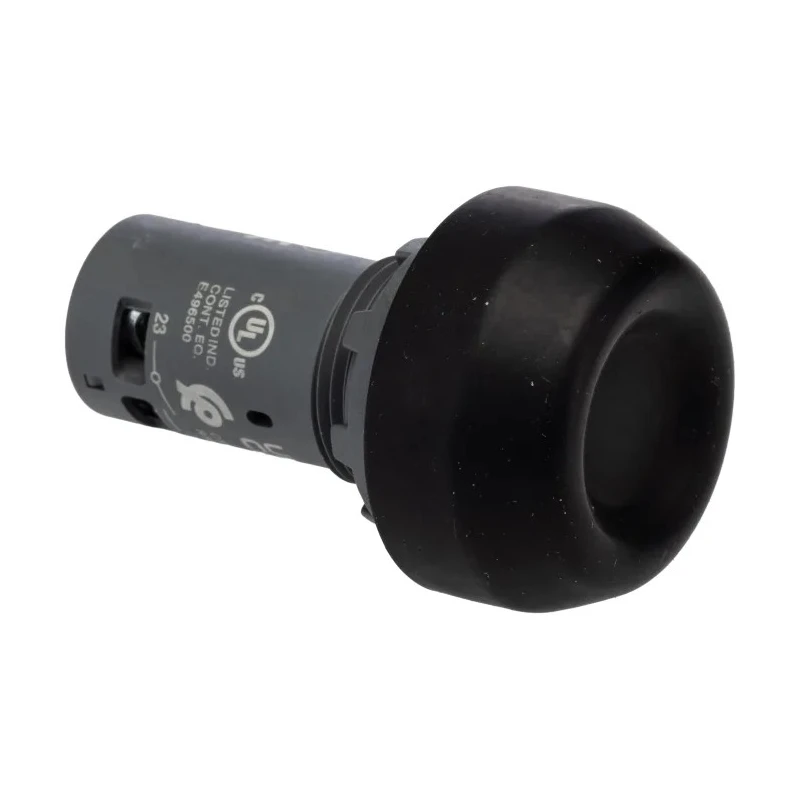

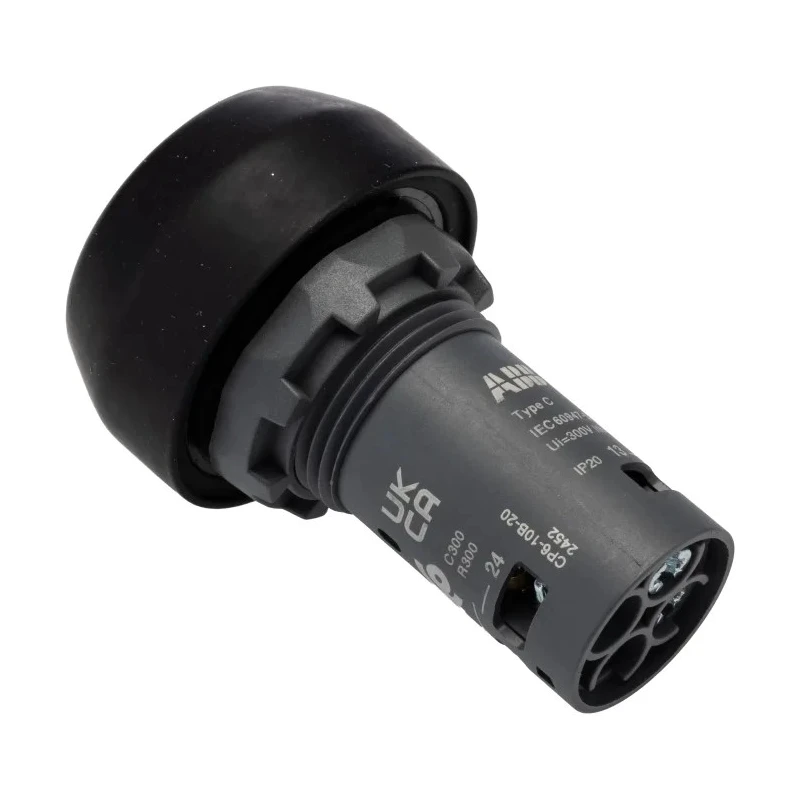

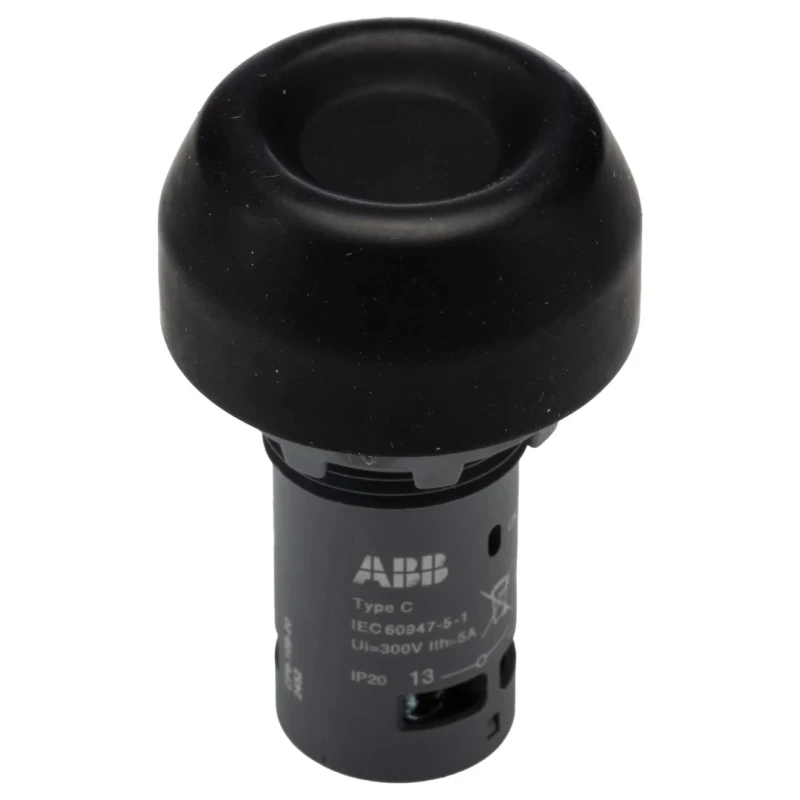

ABB Compact Series Push Button Switch Momentary Panel Mounted 22 mm Cutout 2 NO/2 NC 125 V DC 240 1SFA619105R1026 CP6-10B-20

ABB 1SFA619105R1026 CP6-10B-20 Compact Series Push Button Switch is a robust momentary panel-mounted switch designed for precise operator input in industrial control panels. It is engineered for demanding electrical and automation systems requiring reliable start/stop control.

The switch features a 22 mm panel cutout size with a black round actuator that offers tactile feedback. It incorporates a versatile 2 normally open (NO) and 2 normally closed (NC) contact configuration allowing multi-circuit control functionality. Suitable for both AC and DC control applications, the device supports contact voltages up to 125 V DC and 240 V AC, with a continuous current rating of 2 amps.

Its design ensures high resistance to environmental challenges with IP20, IP66, IP67, and IP69K ingress protection ratings, making it ideal for washdown and harsh industrial environments. This makes the switch well-suited for machinery start/stop inputs, motor control circuits, and retrofit applications where pre-wired, sealed switching components are necessary.

The operating temperature range from -25°C to 70°C allows deployment in typical industrial environments. The cable terminal type simplifies wiring and installation. ABB Compact Series Push Button Switch complies with multiple rigorous standards including IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60073, IEC/EN 60529, EN 50013, DIN 40050-9, UL 508, and CSA C22.2 No 14 ensuring safety, reliability, and interoperability across global industrial applications.

The switch’s momentary operation provides temporary actuation primarily used for start/stop control. Panel mounting ensures secure attachment in control panels with a 22 mm aperture. High ingress ratings guarantee performance under exposure to dust, water jets, and steam cleaning.

Industrial use cases include electrical control panels, automation systems, machinery controls, and operator stations in demanding environments. Ideal for applications requiring pre-wired, compact, and sealed Push Button Switches.
