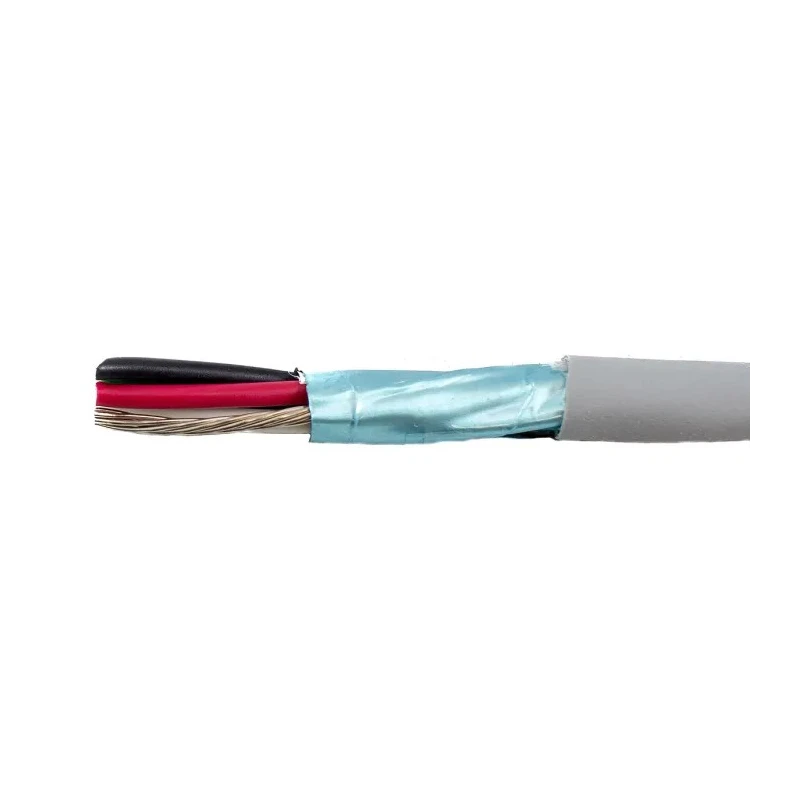

Alpha Wire Ecogen Ecocable Mini Control Cable 4 Cores 0.61mm² 20 AWG Screened 300V 30m 78144 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78144 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.29mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.169 inch (4.29 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.203mm |
| Size of Strands | 0.203mm |
| Cable CSA | 0.61mm² |
| Conductors | 4, Black, Red, White, Green |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/32 |
Key Features
- This cable features four cores with tin copper stranded conductors for reliable signal transmission.
- The Grey modified polyphenylene ether jacket is halogen free and environmentally friendly.
- Designed for a voltage rating of 300V and a cable length of 30 meters.
- Operates reliably from -40°C to 80°C in harsh environments.
- Foil shielding provides protection against electromagnetic interference.
- The cable diameter is nominally 4.29mm with a jacket thickness of 0.38mm.
- Compliance includes CE, CSA, and UL approvals ensuring safety and quality.
Product Description
Alpha Wire 78144 SL005 Ecogen Ecocable Mini Control Cable is a 4-core, 0.61mm² (20 AWG) screened Control Cable engineered for industrial automation, communication, and electronic applications requiring high signal integrity.
The cable features tin copper stranded conductors twisted with 19 strands of 0.203mm diameter wire, insulated and jacketed with grey modified polyphenylene ether (mPPE) which is fully recyclable and halogen free. The mPPE material allows for a smaller diameter and lighter weight compared to PVC alternatives, enhancing ease of installation in complex systems.
Rated for 300 volts, the EcoCable Mini offers a temperature operating range from -40°C to 80°C, permitting use in diverse harsh industrial environments. The foil shield provides effective electromagnetic interference (EMI) protection, critical for sensitive data transmission in electronic and control circuits.
This cable is suitable for applications in radio transmitters, telecommunication systems, automation equipment, studios, and NFPA 79 compliant machinery, ensuring safety and electrical hazard protection in manufacturing and industrial settings.
Four conductors in black, red, white, and green for differentiated wiring. Nominal cable diameter 4.29 mm and jacket thickness 0.015 inch (0.38 mm). Stranding configuration 19/32 with insulation thickness 0.007 inch (0.18 mm).
Halogen free with low outgassing for use in restricted environments. Certified to CE, CSA, UL standards with RoHS, REACH, WEEE, ISO 10993-5 compliances.
This cable combines durability, compliance, and eco-friendly characteristics, ideal for industrial, laboratory, and commercial use cases. Explore the range of Alpha Wire cables for high performance and reliability on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 300V, making it suitable for various industrial applications.
The maximum operating temperature for this cable is 80°C, allowing it to function in high-temperature environments.
It features four cores, which are color-coded black, red, white, and green for easy identification during installation.
The cable is made with tin copper stranded conductors and has a jacket made of modified polyphenylene ether (mPPE), which is halogen-free and recyclable.
The nominal diameter of this cable is 4.29mm, which aids in installation in tight spaces.
It complies with CE, CSA, and UL standards, ensuring it meets safety and quality requirements for industrial use.
The minimum operating temperature is -40°C, allowing it to be used in cold environments without performance issues.
This cable features foil shielding, which provides protection against electromagnetic interference (EMI), essential for maintaining signal integrity.
The insulation thickness of the conductors is 0.007 inches (0.18 mm), which contributes to the cable's overall performance.
The cable length is 30 meters, providing ample length for various installation needs in industrial settings.
Each conductor consists of 19 strands of 0.203mm diameter wire, allowing for flexibility and reliable signal transmission.
This cable is suitable for applications in radio transmitters, telecommunication systems, automation equipment, and NFPA 79 compliant machinery.
