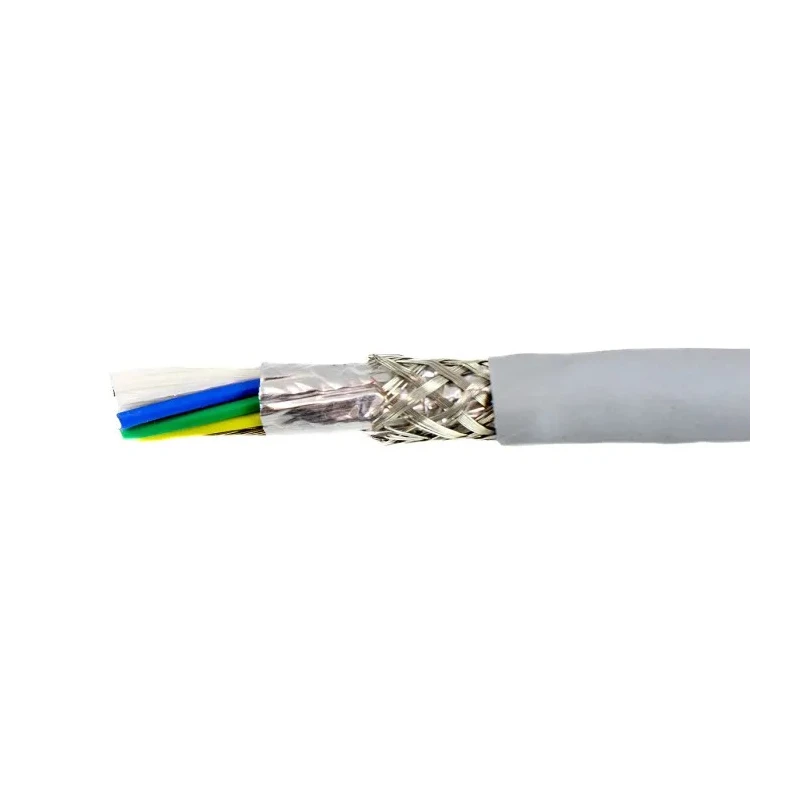

Alpha Wire Ecogen Ecocable Mini Screened Control Cable 10 Cores 0.24mm² 24 AWG, 300V, 30 m, Grey Modified 78330 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78330 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 5.61mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.221 inch (5.61 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CSA, CE, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.24mm² |
| Conductors | 10, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Slate, White |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- The cable features tin copper wire conductors ensuring excellent conductivity.
- It incorporates a grey modified polyphenylene ether (mPPE) jacket providing durability and halogen-free protection.
- Screened with Supra-Shield foil and braid for superior EMI protection.
- Rated for 300 V operation with a temperature range from -40°C to +80°C.
- The cable length is 30 meters with a nominal diameter of approximately 5.61 mm.
- It consists of 19 strands per core, each strand sized 0.127 mm.
- Complies with CSA, CE, and UL standards.
- The jacket thickness is 0.015 inch (0.38 mm) and insulation thickness is 0.007 inch (0.18 mm).
Product Description
Alpha Wire 78330 SL005 Ecogen Ecocable Mini Control Cable is a screened multiconductor cable designed for demanding electrical and industrial environments. It features 10 cores of tin copper conductors with 24 AWG, each composed of 19 strands sized 0.127 mm, providing excellent signal fidelity and flexibility.
The cable construction includes a grey modified polyphenylene ether (mPPE) insulation and jacket material that is halogen-free and lightweight, reducing overall weight by up to 65% compared to conventional cables. It carries a voltage rating of 300 V and operates reliably between -40°C and 80°C, ideal for industrial automation, telecommunication, electronic circuits, and radio transmitters.
The Supra-Shield® technology combines a triple-layer aluminium/polyester/aluminium foil with a tinned copper braid shield to deliver outstanding electromagnetic interference (EMI) protection, making it suitable for applications requiring high immunity from electrical noise.
This cable is fully recyclable and environmentally responsible, with low outgassing properties. It meets CSA, CE, and UL standards and supports compliance with NFPA 79 safeguards for industrial machinery safety. With a nominal diameter of 5.61 mm and length of 30 m, it is well-suited for precision control and signal transmission in complex industrial environments.
The cable uses tin copper conductors for high electrical performance. Modified polyphenylene ether jacket ensures lightweight, durable, and halogen-free insulation. Supra-Shield foil plus braid shielding provides enhanced EMI protection.
Operating temperature range: -40°C to +80°C for versatile environmental resilience. Nominal diameter: 5.61 mm with a jacket thickness of 0.015 inch (0.38 mm). Conductor configuration: 10 cores in specified colors including black, brown, red, orange, yellow, green, blue, violet, slate, and white.
19 strands per conductor, each 0.127 mm in diameter, for flexibility and strength. Halogen-free design minimizes toxic emissions during fire, complying with modern safety standards. Length of 30 meters suitable for medium-scale installations and wiring runs.
Fully recyclable materials supporting sustainability initiatives in industrial settings.
This Alpha Wire Ecogen Ecocable Mini cable is ideal for industrial automation, laboratory applications, telecommunication setups, and HVAC systems requiring reliable, lightweight, and shielded Control Cables. Explore more high-quality industrial cables and accessories on EnvMart for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 300V operation, making it suitable for various electrical applications.
It operates reliably within a temperature range of -40°C to 80°C, allowing for use in diverse environments.
This model features 10 cores, each designed to provide excellent signal fidelity and flexibility.
The nominal diameter of the cable is approximately 5.61 mm, which is suitable for various installation requirements.
It features tin copper wire conductors and a jacket made from modified polyphenylene ether (mPPE), ensuring halogen-free protection.
The cable is screened with Supra-Shield foil and braid, providing superior electromagnetic interference (EMI) protection.
Each conductor consists of 19 strands, with each strand measuring 0.127 mm in diameter.
Yes, it complies with CSA, CE, and UL standards, ensuring it meets safety and performance requirements.
The cable length is 30 meters, making it suitable for medium-scale installations.
The insulation thickness is 0.007 inch (0.18 mm), providing effective electrical insulation.
It is ideal for industrial automation, telecommunication setups, electronic circuits, and HVAC systems requiring reliable control cables.
The cable is designed to be halogen-free, minimizing toxic emissions during fire, which enhances safety.
