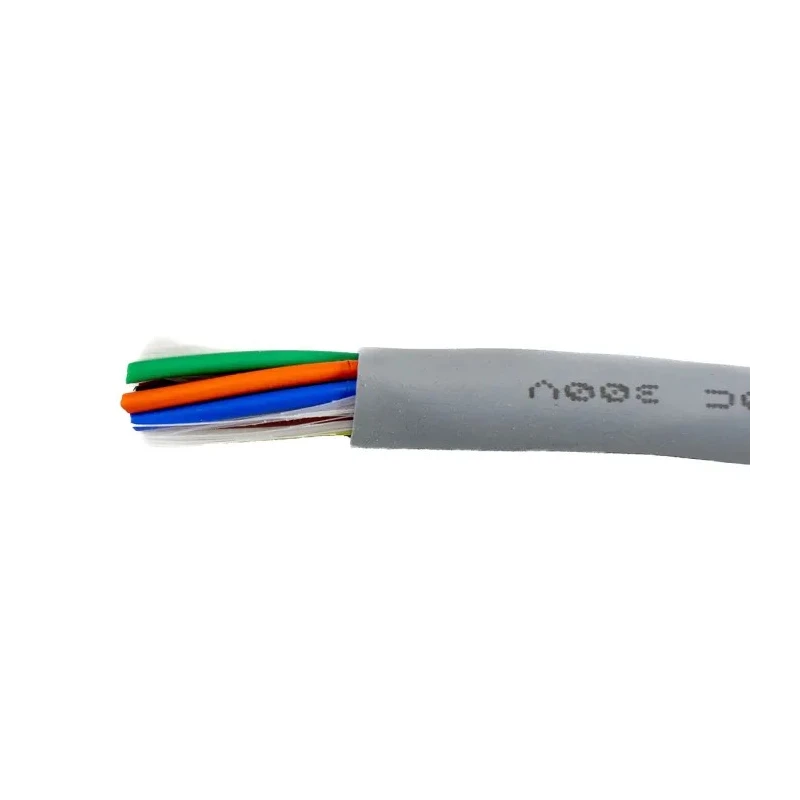

Alpha Wire Ecogen Ecocable Mini Control Cable, 10 Cores, 0.24mm² 24 AWG, Unscreened, 300 V, Grey Modified 78030 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78030 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.83mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.190 inch (4.83 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.24mm² |
| Conductors | 10, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Slate, White |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- The cable has tin copper wire conductors ensuring excellent conductivity.
- The modified polyphenylene ether jacket offers halogen-free, high temperature resistance from -40°C to 80°C.
- This EcoCable Mini type is lightweight and fully recyclable with low outgassing properties.
- The unscreened design reduces interference while maintaining flexibility with stranded conductor type.
- The cable is UL, CSA, and CE approved for industrial and automation applications.
- The nominal outside diameter is 4.83 mm with a jacket thickness of 0.015 inch (0.38 mm).
- Conductor stranding consists of 19 strands of 0.127 mm wire for durability and flexibility.
- Suitable for communication, automation, electronic circuitry, telecommunication and NFPA 79 compliant machinery protection.
Product Description
Alpha Wire 78030 SL005 Ecogen Ecocable Mini Control Cable is a high-performance control cable featuring 10 conductor cores with a cross-section of 0.24mm² (24 AWG) each, designed for 300 Volt operation. The cable uses tin-plated copper wires stranded with 19 strands of 0.127 mm diameter wire, ensuring excellent conductivity and flexibility. The jacket is composed of modified polyphenylene ether (mPPE), providing a grey, halogen-free, recyclable sheath that withstands temperatures from -40°C to +80°C.
This EcoCable Mini series cable offers a lightweight and thinner profile compared to PVC equivalents due to the mPPE's superior dielectric properties. The unscreened design reduces electromagnetic interference while providing reliable communication and control signal transmission in industrial, automation, and electronic systems.
The cable is UL, CSA, and CE certified, complying with industrial safety standards. Its construction includes low outgassing materials with zero halogens, enhancing safety in hazardous environments. The 30 meter reel length and approximately 4.83 mm nominal diameter make it ideal for installation in constrained or weight-sensitive applications.
Applications span a wide range of fields including radio transmitters, electronic circuits, telecommunications, automation control, audio studios, and NFPA 79 industrial machinery safety standards. The cable maintains consistent performance in extreme temperature conditions and is suitable for use in environments requiring durable, halogen-free cables with excellent electrical and mechanical properties.
The cable construction includes 10 color-coded cores for ease of identification and wiring. Tin copper conductors provide corrosion resistance and electrical reliability. The mPPE jacket ensures environmental sustainability with full recyclability.
The insulation thickness is 0.007 inch (0.18 mm), balancing protection and compact size.
Alpha Wire's Ecogen Ecocable Mini series ensures dependable operation and long service life in diverse industrial and commercial installations. Explore more in our Control Cable category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the cable is +80°C.
This model features 10 cores, each with a cross-section of 0.24mm² (24 AWG).
The nominal outside diameter of the cable is 4.83 mm.
The conductors are made of tin-plated copper wire, while the jacket is composed of modified polyphenylene ether (mPPE).
The cable is unscreened, which helps reduce electromagnetic interference while maintaining flexibility.
This cable is UL, CSA, and CE approved, ensuring compliance with industrial safety standards.
The cable comes in a length of 30 meters.
The insulation thickness is 0.007 inch (0.18 mm).
The cable can operate in temperatures ranging from -40°C to +80°C.
This cable is suitable for communication, automation, electronic circuitry, and NFPA 79 compliant machinery protection.
The conductor stranding consists of 19 strands of 0.127 mm wire for each core.
The jacket is halogen-free, enhancing safety in hazardous environments.
