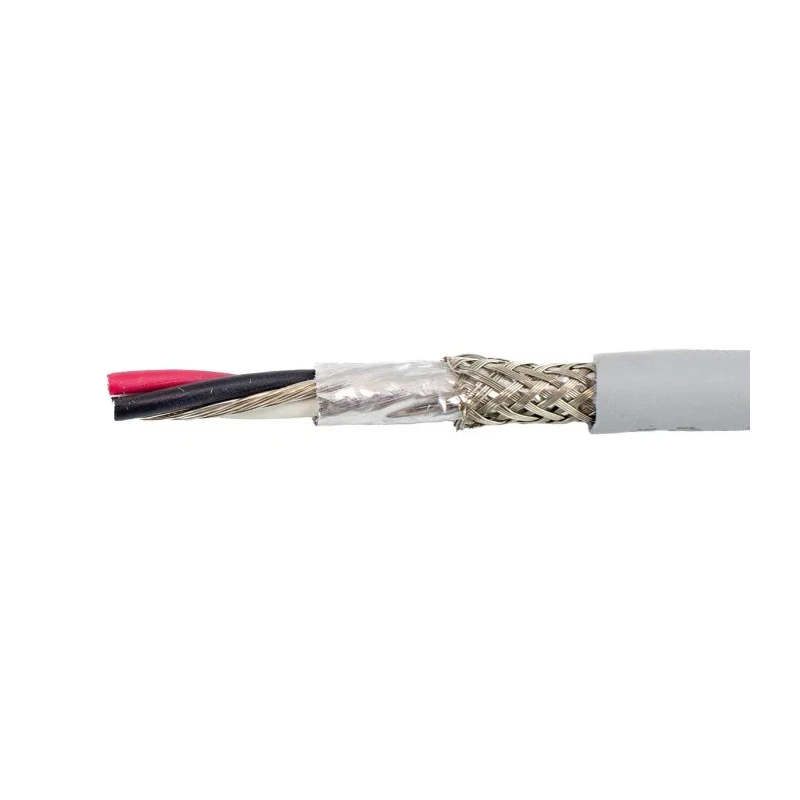

Alpha Wire Ecogen Ecocable Mini Control Cable, 6 Cores, 0.61mm² 20 AWG, Screened, 30m, Grey Modified 78146 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78146 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 5.11mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.201 inch (5.11 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.203mm |
| Size of Strands | 0.203mm |
| Cable CSA | 0.61mm² |
| Conductors | 6, Black, Red, White, Green, Orange, Blue |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/32 |
Key Features
- The cable features a grey modified polyphenylene ether jacket and insulation for durability.
- It supports a voltage rating of 300V and operates within a temperature range from -40°C to 80°C.
- The conductor consists of 19 strands of 0.203mm tin copper wire, stranded for flexibility.
- Shielding includes an aluminium/polyester foil and tinned copper drain wire for EMI resistance.
- The jacket thickness is 0.015 inch (0.38 mm), with an overall cable diameter of 5.11mm.
- This cable is halogen-free, low outgassing, and 100% recyclable, making it suitable for eco-friendly installations.
- The product complies with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 standards.
- Ideal for use in communication, telecommunication, automation, radio transmitters, and NFPA 79 compliant industrial machinery protections.
Product Description
Alpha Wire 78146 SL005 Ecogen Ecocable Mini Control Cable is a screened 6-core cable with 0.61mm² (20 AWG) tin copper stranded conductors, using modified polyphenylene ether (mPPE) insulation and jacket in grey color. It is designed for demanding electrical, automation, and industrial control applications that require reliable signal transmission and extreme temperature tolerance.
The 30m cable length and 5.11mm nominal diameter allow compact installation with a reduced cable wall thickness compared to PVC alternatives. The cable operates safely with a voltage rating up to 300V and withstands temperatures from -40°C to +80°C.
The cable's stranded conductor comprises 19 strands of 0.203mm tinned copper wire, providing enhanced flexibility. The foil shield made of aluminium/polyester and tinned copper wire shield reduces electromagnetic interference (EMI) for cleaner signal communication.
The halogen-free mPPE sheath ensures low outgassing and environmental safety while offering a light and thin profile. This cable is fully recyclable and meets multiple industry certifications including UL, CSA, CE, RoHS, REACH, and WEEE, confirming its industrial-grade quality and safety.
Applications include telecommunications, electronic circuits, radio transmitters, automation control systems, and NFPA 79 industrial machinery safety standards. This cable is particularly suitable where light weight, EMI shielding, and environmental compliance are critical requirements.
The cable length is 30 meters with a nominal diameter of 5.11 mm. Voltage rating up to 300V with operating temperatures between -40°C and 80°C. Screened with aluminium/polyester foil and tinned copper drain wire for EMI protection.
Jacket and insulation materials are modified polyphenylene ether (mPPE), halogen-free and recyclable. Stranded conductor comprises 19 strands of 0.203 mm tin copper wire, 20 AWG (0.61 mm²). Complies with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 standards.
Discover more Control Cable solutions in the Wires & Cables category at EnvMart for your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable supports a voltage rating of 300V.
It operates within a temperature range from -40°C to 80°C.
This control cable features 6 cores.
The overall cable diameter is 5.11mm.
The insulation and jacket are made from modified polyphenylene ether (mPPE).
It includes an aluminium/polyester foil shield and a tinned copper drain wire for EMI resistance.
The conductor consists of 19 strands of 0.203mm tin copper wire, stranded for flexibility.
It complies with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 standards.
The cable length is 30 meters.
Yes, the cable is halogen-free, ensuring low outgassing and environmental safety.
It is ideal for use in communication, telecommunication, automation, radio transmitters, and NFPA 79 compliant industrial machinery.
The jacket thickness is 0.015 inch (0.38 mm).
