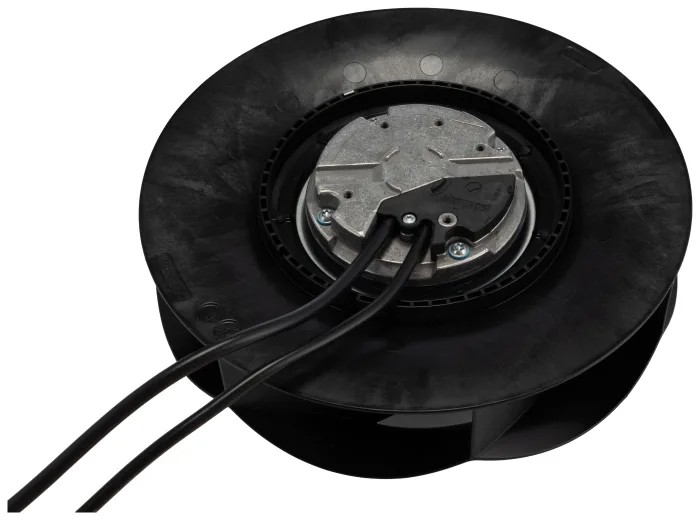

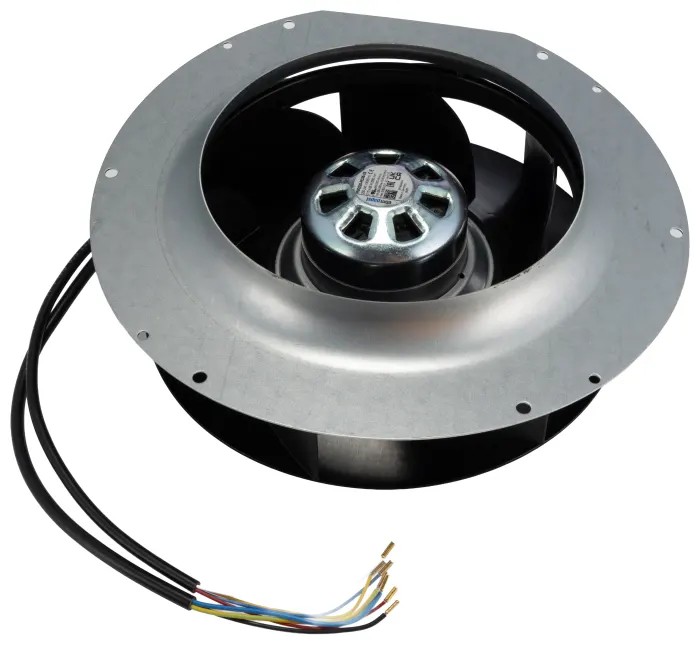

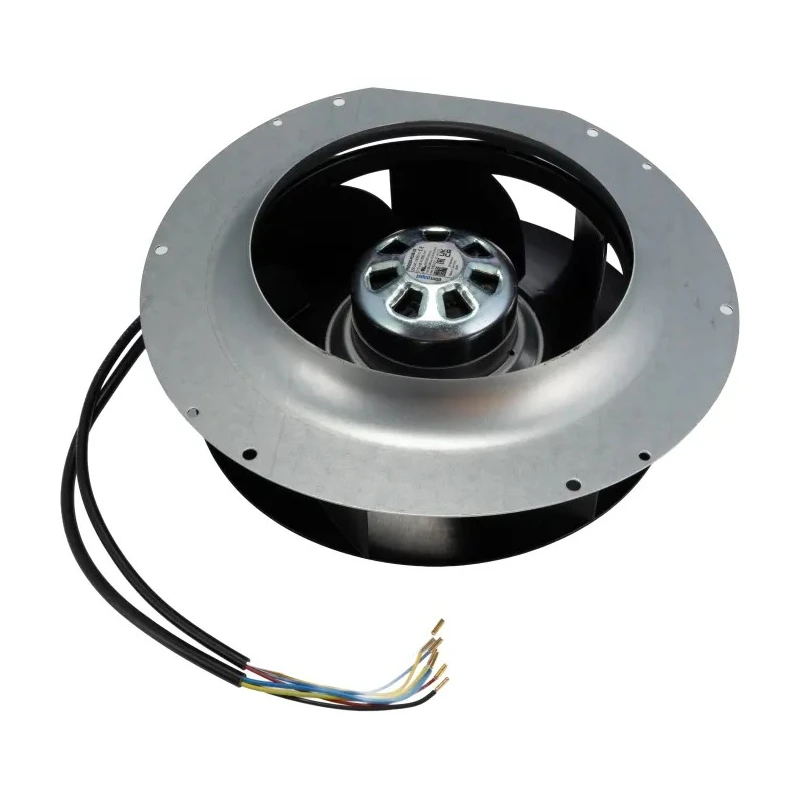

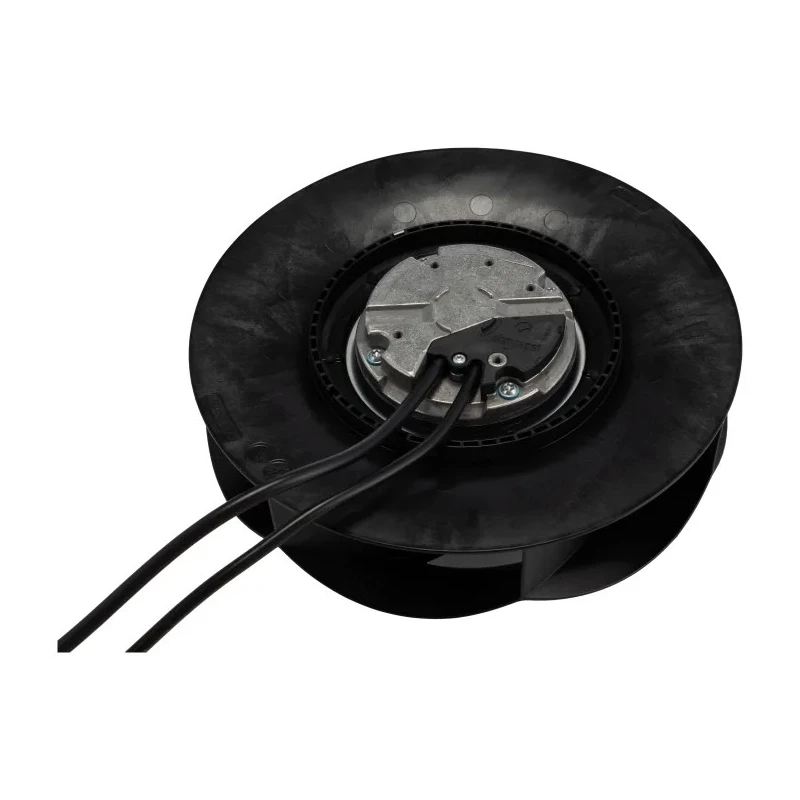

ebm-papst RadiCal Series Centrifugal Fan, 230V AC, 1015 m³/h Air Flow, 2580 RPM, 220mm x 71mm Dimensions R3G220-RC05-03
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Fan Speed | 2580rpm |
| Air Flow | 1015m³/h |
| Model | R3G220-RC05-03 |
| Depth | 71mm |
| IP Rating | IP54 |
| Width | 220mm |
| Static Pressure | 335Pa |
| Series | RadiCal |
| Maximum Current | 0.79A |
| Terminal type | Brass Lead Tips Crimped |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | EN, CCC, ISO, RoHS |
| AC or DC Operation | AC |
| Commutation Type | Electronic |
| Sensor Output Type | PWM |
| ebm-papst R3G220AE5001M07 Plate Fan, 1140m³/hBrand | ebm-papst |
Key Features
- Features RadiCal series design with backwards-curved blades for efficiency.
- Operates at 2580 RPM providing strong airflow and static pressure.
- Measures 220mm in width and 71mm in depth, suitable for compact installations.
- Equipped with an electronically commutated external rotor motor for energy efficiency.
- Ball bearing type ensures durability and smooth operation.
- IP54 rated housing protects against dust and water ingress.
- Material includes PA plastic impeller and die-cast aluminium electronics housing for corrosion resistance.
- Applications include ventilation units, heat pumps, control cabinet cooling, and duct fans.
Product Description
ebm-papst R3G220-RC05-03 RadiCal Series Centrifugal Fan is engineered for industrial, HVAC, and thermal management applications. With a supply voltage of 230V AC and an airflow capacity of 1015 m³/h at 2580 RPM, it delivers efficient and reliable performance.
This centrifugal fan features backwards-curved blades and a hybrid aerodynamic design that minimizes noise emissions and maximizes efficiency. Its compact dimensions of 220mm width by 71mm depth make it ideal for applications requiring space-saving, robust cooling solutions.
The fan is fitted with a GreenTech EC electronically commutated external rotor motor, which provides low power consumption and high control flexibility. The ball bearing type enhances durability and ensures a long service life. Its IP54 rated enclosure offers protection against dust and splashing water, suitable for demanding environments.

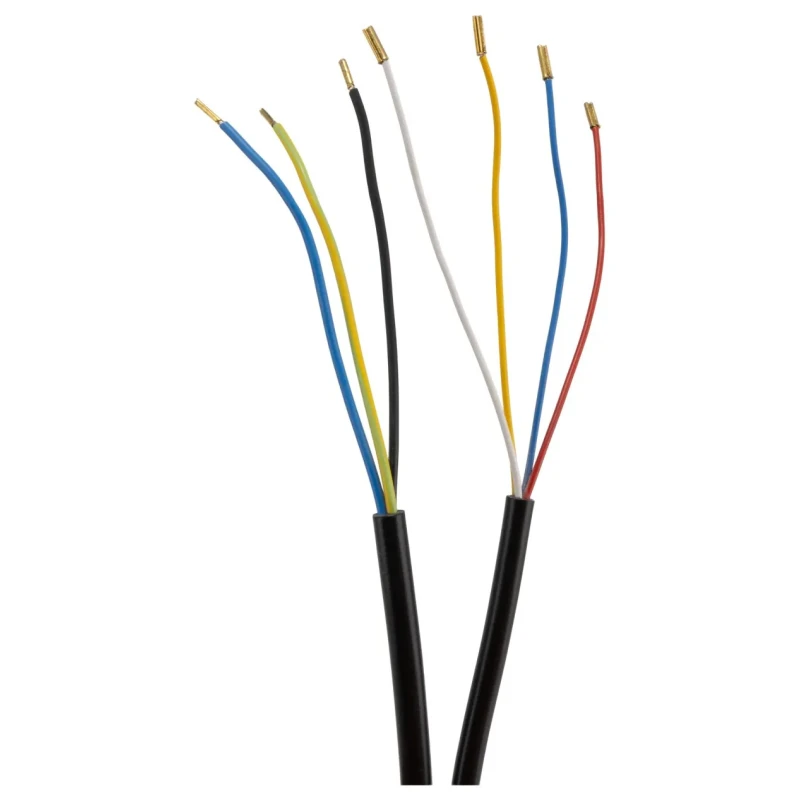

Constructed with a PA plastic impeller and die-cast aluminium electronics housing, the fan resists corrosion and mechanical stress effectively. The brass lead tips are crimped on the terminal for secure electrical connections. This product complies with international standards including EN, CCC, ISO, and RoHS, confirming its safety and environmental quality.
Typical industrial use cases encompass control cabinet cooling, in-line duct fans, home ventilation units, and heat pump systems. Its high static pressure of 335 Pa and maximum current of 0.79 A allow it to efficiently move air through ductwork and cabinets.
RadiCal series centrifugal fan with backwards-curved blades. 230V AC supply voltage and 1015 m³/h airflow at 2580 RPM. Compact design: 220mm width by 71mm depth. GreenTech electronically commutated external rotor motor. Durable ball bearing and IP54 enclosure for protection.
Materials: PA plastic impeller and die-cast aluminium housing. Certified to EN, CCC, ISO, RoHS standards for compliance. Suitable for industrial, HVAC, and thermal management uses. Includes inlet ring for improved airflow efficiency.
Explore the ebm-papst Centrifugal Fan category for reliable industrial cooling solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an airflow capacity of 1015 m³/h.
It operates at a fan speed of 2580 RPM.
The fan measures 220mm in width and 71mm in depth.
It has a static pressure rating of 335 Pa.
It is equipped with a GreenTech EC electronically commutated external rotor motor.
The fan has an IP54 rating, providing protection against dust and splashing water.
The maximum current draw is 0.79 A.
It features a PA plastic impeller and a die-cast aluminium electronics housing.
Typical applications include control cabinet cooling, home ventilation units, and heat pump systems.
This model uses a ball bearing type for improved durability and smooth operation.
It complies with EN, CCC, ISO, and RoHS standards.
The supply voltage for this fan is 230V AC.
