RS PRO Polypropylene Bag Filter F7 Grade 13 MERV Rating, Pink, 492x592x600 mm 827-9774

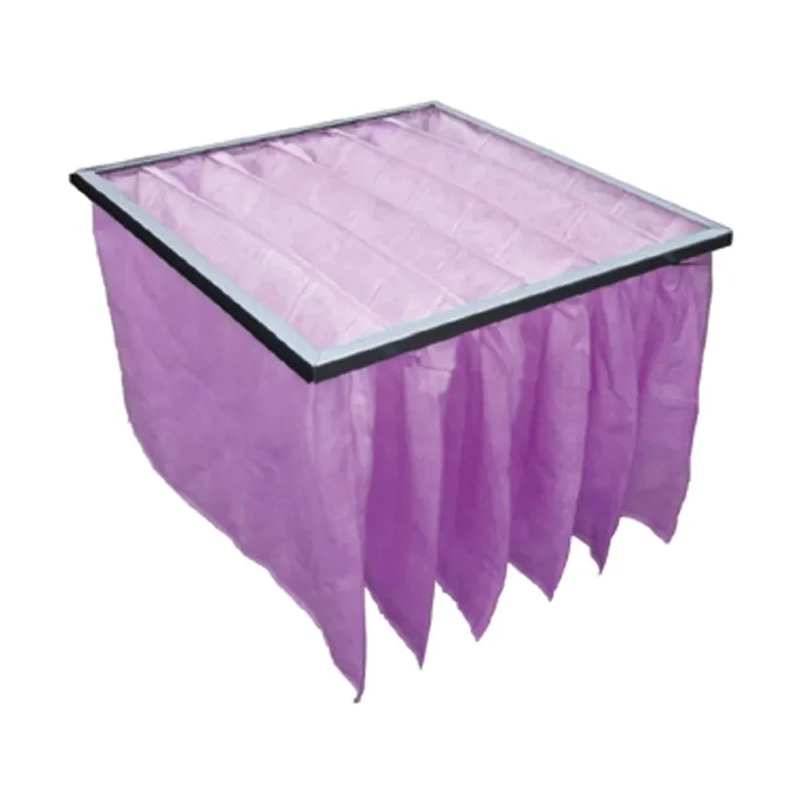

Name: RS PRO Polypropylene Bag Filter F7 Grade 13 MERV Rating, Pink, 492x592x600 mm 827-9774
Brand: RS PRO
SKU: 252100
Price: 1746 INR
Availability: InStock



Category HVAC Air Filter Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Colour	Pink
Model	827-9774
Filter Type	Bag
Case Material	Galvanised Steel
Initial Pressure Drop	105Pa
Final pressure drop	350Pa
Maximum Air Flow	76.47m³/h
Number of Pockets	5
Standards/Approvals	RoHS, BS EN, ISO
Filter Grade	F7
Actual Width	492mm
Actual Height	592mm
Actual Depth	600mm
Media Material	Polypropylene
Nominal Height	609.6mm
Nominal Depth	609.6mm
Header Size	20mm
Nominal Width	508mm
Filter MERV Rating	13
Minimum velocity required	1.2m/s
Camfil Glass Fibre Bag Filter, F7 Grade, 592 x 490 x 600mmBrand	Camfil Farr
RS PRO Polypropylene Bag Filter, F7 Grade, 13 MERV Rating w	492 mm h: 592 mm d: 600 mm

Key Features

The bag filter is constructed with hydrophobic polypropylene media offering great performance in damp environments.
Galvanised steel header frame ensures durability and incorporates a safety rolled edge to protect the media.
Features electrostatically charged media with a triple-layer filtration for enhanced efficiency.
Rated at MERV 13 with fine efficiency averaging 80% at 0.4 micron particle size.
Designed for a maximum air flow of 76.47 cubic meters per hour with an initial pressure drop of 105 Pa.
The five-pocket design has dimensions of 492 mm width, 592 mm height, and 600 mm depth.
Ultrasonically welded seams provide leak-free pockets and a built-in pre-filter layer extends filter life.
Pink color polypropylene media is non-toxic and non-irritant, suitable for industrial HVAC applications.

Product Description

RS PRO model 827-9774 polypropylene bag filter F7 grade is engineered for HVAC air filtration systems requiring reliable fine filtration with a 13 MERV rating. The hydrophobic polypropylene synthetic media is electrostatically charged and mounted within a robust galvanised steel header frame featuring a rolled safety edge to prevent damage during installation.

The five-pocket bag filter provides a maximum air flow capacity of 76.47 m³/h with an initial pressure drop of 105 Pa and a final pressure drop of 350 Pa, making it suitable for various industrial, commercial, and HVAC applications where maintaining indoor air quality and protecting equipment is critical.

This filter incorporates triple filtration layers, including an extra built-in pre-filter layer to extend the service life. The pockets are sealed with ultrasonic welding to ensure leak-free operation, and the polypropylene media is resistant to damp atmospheres, non-toxic, and non-irritant, ensuring safe use in sensitive environments.

The filter dimensions measure approximately 492 mm in width, 592 mm in height, and 600 mm in depth, fitting standard filter housings. The pink colour indicates F7 grade classification with fine filtration efficiency averaging 80% at 0.4 microns particle size. The filter complies with RoHS, BS EN, and ISO standards and meets ASHRAE 52.2 MERV 13 rating test protocols.

The bag filter uses electrostatically charged polypropylene media for superior dust retention. Galvanised steel frame provides structural integrity and safe installation. Five-pocket design maximizes air filtration surface area within compact dimensions.

Hydrophobic media improves performance in humid or damp operational conditions. Triple filtration layers including extra pre-filter layer extend filter life. Compliant with international filtration standards for safety and performance.

Ideal for industrial HVAC, commercial buildings, and air quality control systems.

This RS PRO polypropylene bag filter 827-9774 is a dependable component for enhancing indoor air quality while protecting HVAC equipment from particulate contamination. Browse additional HVAC Air Filters and related products on EnvMart to explore compatible options for your filtration needs.
