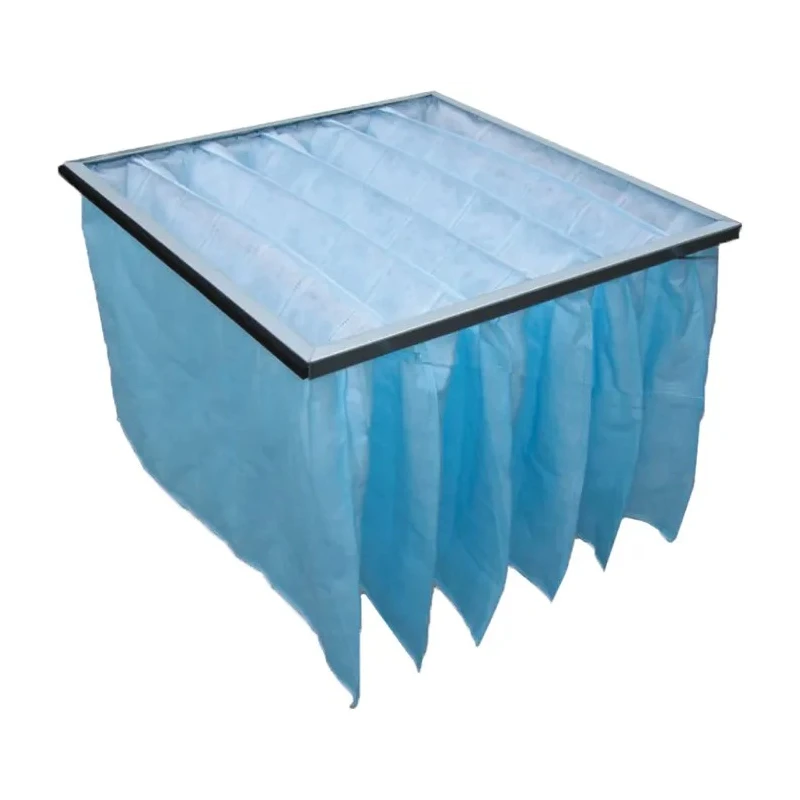

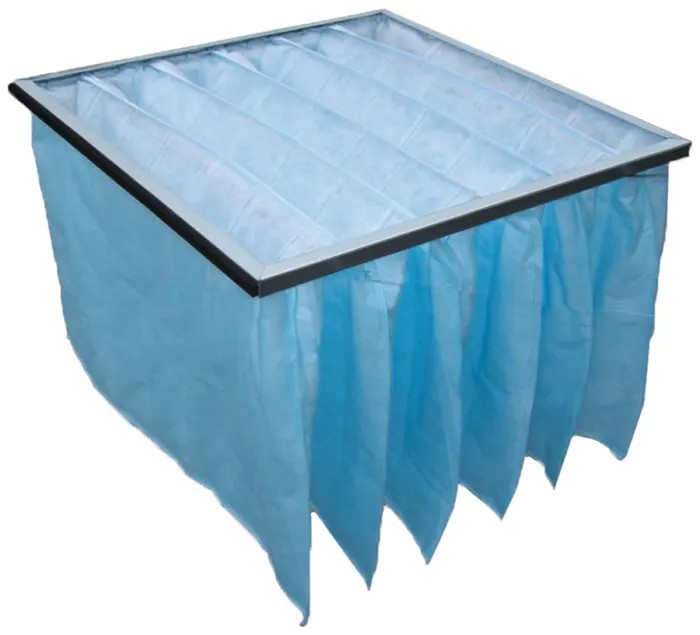

RS PRO Ultraseal Series Polypropylene Bag Filter G4 Grade 8 MERV Rating 492mm x 592mm x 350mm 827-9670

Name: RS PRO Ultraseal Series Polypropylene Bag Filter G4 Grade 8 MERV Rating 492mm x 592mm x 350mm 827-9670
Brand: RS PRO
SKU: 252097
Price: 1746 INR
Availability: InStock



Category HVAC Air Filter Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Colour	Blue
Model	827-9670
Filter Type	Bag
Case Material	Galvanised Steel
Series	Ultraseal
Initial Pressure Drop	40Pa
Final pressure drop	50Pa
Maximum Air Flow	58.37m³/h
Number of Pockets	5
Standards/Approvals	ISO, BS EN, RoHS
Filter Grade	G4
Actual Width	492mm
Actual Height	592mm
Actual Depth	350mm
Media Material	Polypropylene
Nominal Height	609.6mm
Nominal Depth	381mm
Header Size	20mm
Nominal Width	508mm
Filter MERV Rating	8
RS PRO Ultraseal Series Polypropylene Bag Filter, G4 Grade, 8 MERV Rating w	492 mm h: 592 mm d: 350 mm

Key Features

Constructed with 100% polypropylene synthetic media for effective filtration.
Features a galvanised steel header frame for durable support.
Five ultrasonically welded pockets provide extended filter life and leak-free operation.
Hydrophobic media ensures reliable performance in damp environments.
Designed to manage a maximum air flow of 58.37 cubic meters per hour.
Initial and final pressure drops are rated at 40Pa and 50Pa respectively.
Suitable for use in hospitals, government buildings, theatres, computer rooms, and spray booths.
Certified to ISO, BS EN, and RoHS standards.

Product Description

RS PRO 827-9670 Ultraseal Series Polypropylene Bag Filter is a G4 Grade air filter with an 8 MERV rating, engineered for precise air filtration in HVAC systems. This bag filter is constructed by mounting 100% polypropylene synthetic media into a galvanised steel header frame, ensuring durability and longevity in critical environments.

The filter comprises five ultrasonically welded pockets that deliver highly reliable, leak-free seams, enhancing the operational safety and efficiency. The hydrophobic media is specially designed to provide excellent filtration performance even in damp atmospheres, extending filter life and maintaining optimal air quality.

Dimensionally, the filter measures 492 mm in width, 592 mm in height, and 350 mm in depth, making it suitable for various HVAC systems in government buildings, hospitals, theatres, computer rooms, and spray booths.

The filter supports a maximum air flow of 58.37 cubic meters per hour, with an initial pressure drop of 40 Pa and a final pressure drop of 50 Pa, ensuring efficient air filtration while maintaining airflow.

Certified to ISO, BS EN, and RoHS standards, this RS PRO filter is a reliable choice for industrial, commercial, and sensitive HVAC applications. The blue colour coding and rolled safety edge contribute to safer and easier installations.

Constructed from 100% polypropylene synthetic media for effective pollution control. Galvanised steel header frame offers structural robustness. Five ultrasonically welded pockets ensure leak-free performance. Hydrophobic design adapts to damp conditions.

Maximum air flow capacity is 58.37 m³/h. Pressure drops rated at 40 Pa (initial) and 50 Pa (final). Blue coloured filter with safety rolled edges. Designed for use in HVAC systems of sensitive environments. Complies with ISO, BS EN, and RoHS standards.

Country of origin: United Kingdom. Explore more high-quality HVAC Air Filters and filtration solutions in the Industrial Tools & Equipment category at EnvMart.
