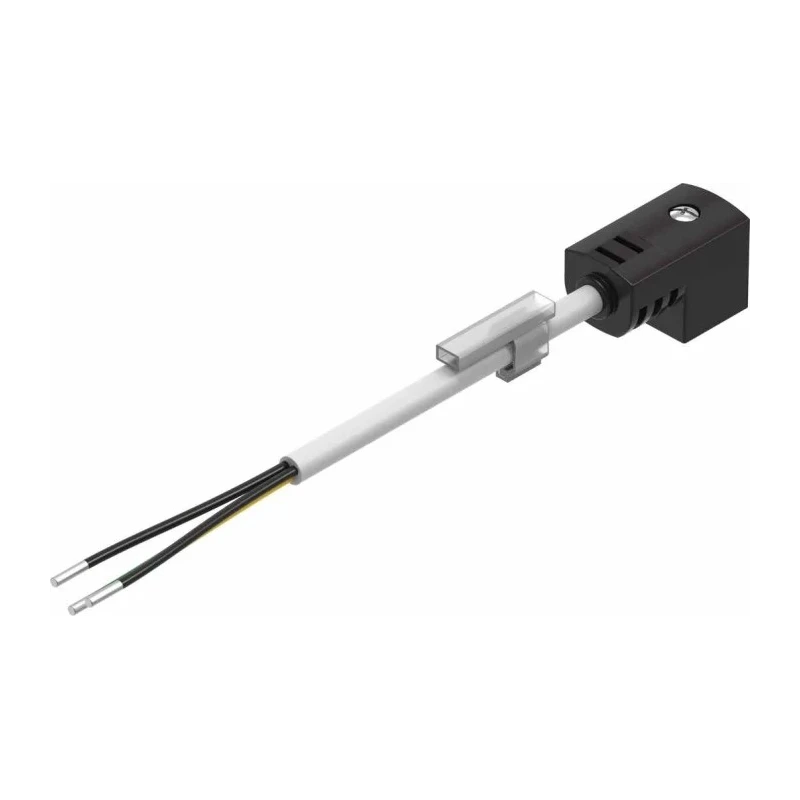

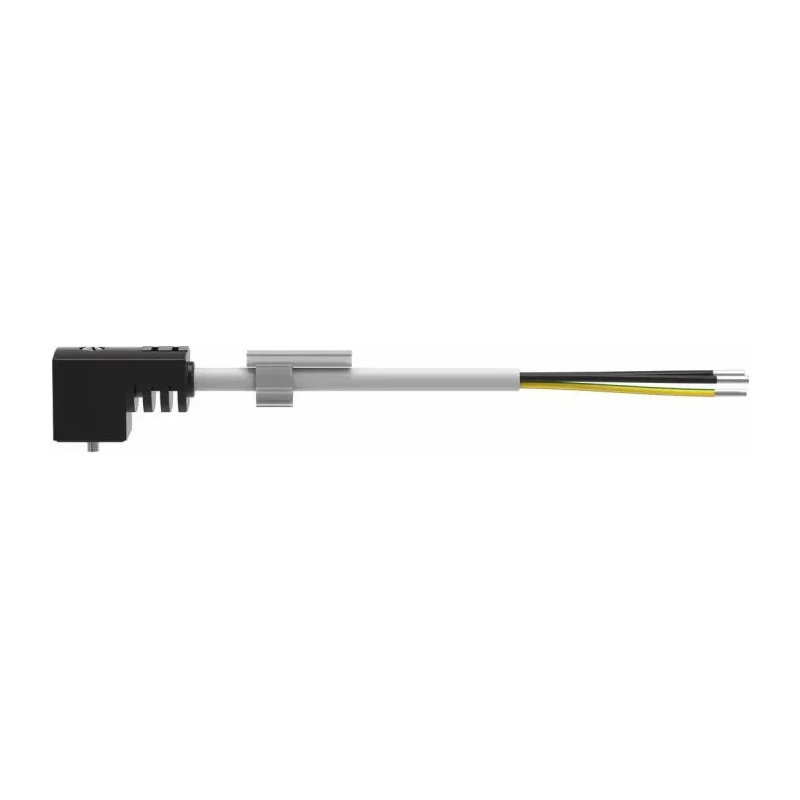

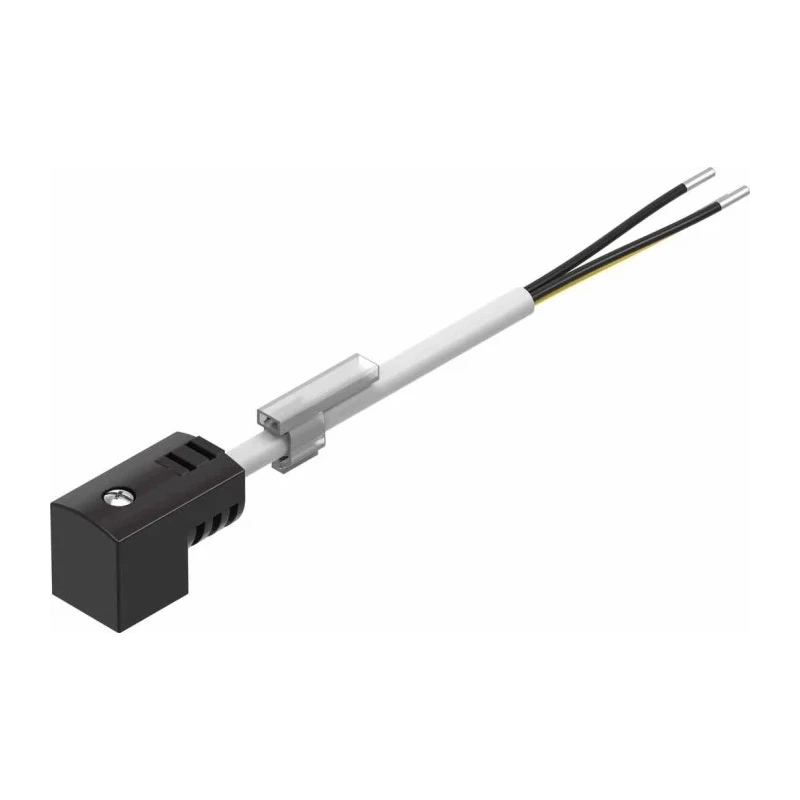

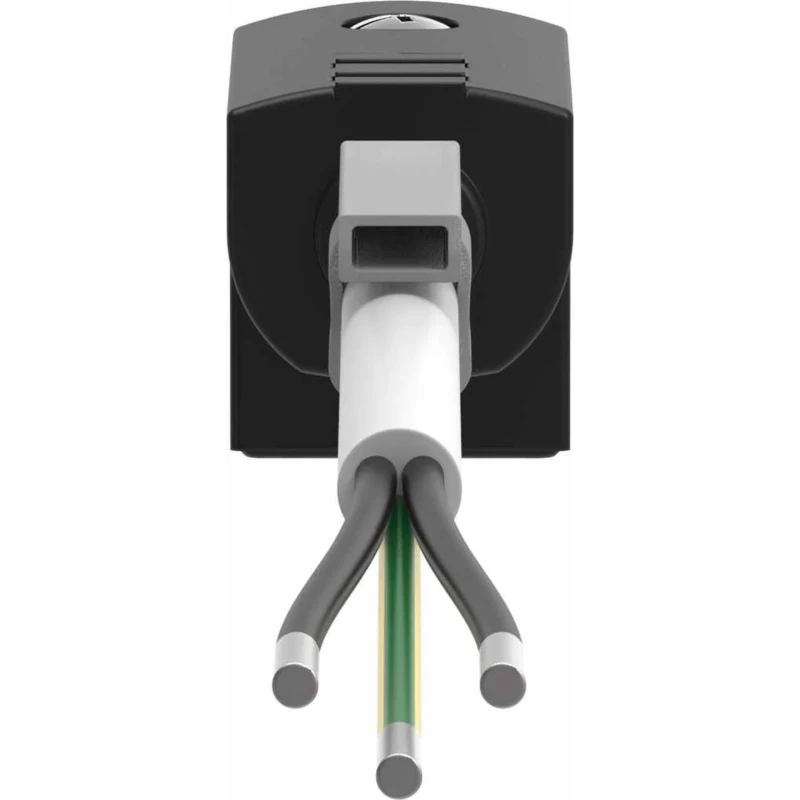

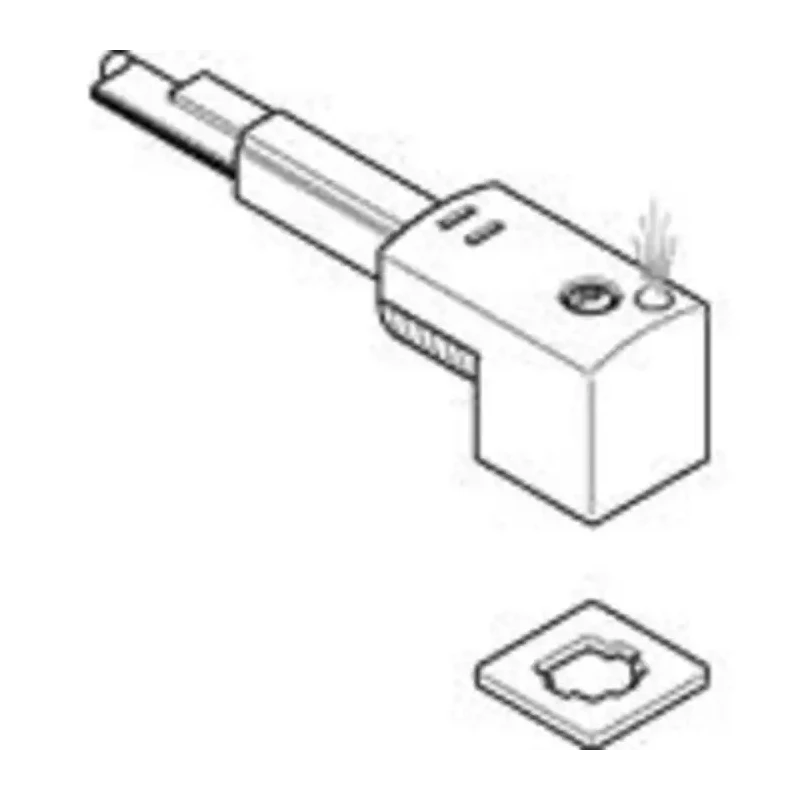

Festo Pilot Valve Component KMEB Series 24 V DC, LED Indicator, IP65, Model KMEB-1-24-5-LED

Festo KMEB-1-24-5-LED is a high-quality pilot valve component designed for efficient and secure plug socket connections in pneumatic valve applications. It operates with a nominal voltage of 24 V DC and features an LED indicator for easy monitoring of the switching position status, enhancing operational reliability in industrial automation settings.

This component is compatible with MEBH Valve, VUVB Valve, N2 Solenoid, and MOEBH Valve series, making it versatile for various pneumatic valve configurations. It features a pre-assembled construction that includes a 5-meter length PVC cable sheath, with a diameter of 5.2 mm and cable structure of 3 mm² x 0.5 mm², facilitating quick installation without additional assembly effort.

Constructed with a PA66-GF30 housing (30% glass-fiber reinforced polyamide), the KMEB-1 is engineered to withstand demanding industrial environments. The component is sealed to an IP65 rating as per IEC 60529 to resist dust ingress and moderate water spray, ensuring longevity and consistent performance.

The mounting design uses a 3-pin type C plug socket compliant with EN 175301-803 standards, secured with an M2.5 central screw. An integrated protective earth connection enhances electrical safety. It is not suitable for use with energy chains, so installation should consider this limitation when planning automated systems.

The operating ambient temperature range spans from -20°C to +80°C, covering typical industrial conditions encountered in manufacturing, fluid power systems, construction, and laboratory automation. This component supports secure communication between solenoid coils and valve systems, boosting precision and reliability in pneumatic control circuits.

Pre-assembled plug socket for secure valve connections. Compatibility with various solenoid valve types enhances flexibility. Robust IP65 rated housing for harsh environments. Clear LED status indicator for easy operational awareness.

Durable cable with PVC sheath and glass-fiber reinforced housing. Wide operational temperature range suitable for multiple industrial uses. Protective earth provides enhanced electrical safety.

Festo's KMEB series pilot valve components are an essential part of industrial pneumatic valve systems. The KMEB-1-24-5-LED model supports reliable electrical connection and status monitoring, critical for automation tasks across diverse applications including manufacturing lines, fluid control, and HVAC systems. Explore the full range of Pneumatic Valve Accessories on EnvMart to find complementary components that enhance your system’s performance and durability.
