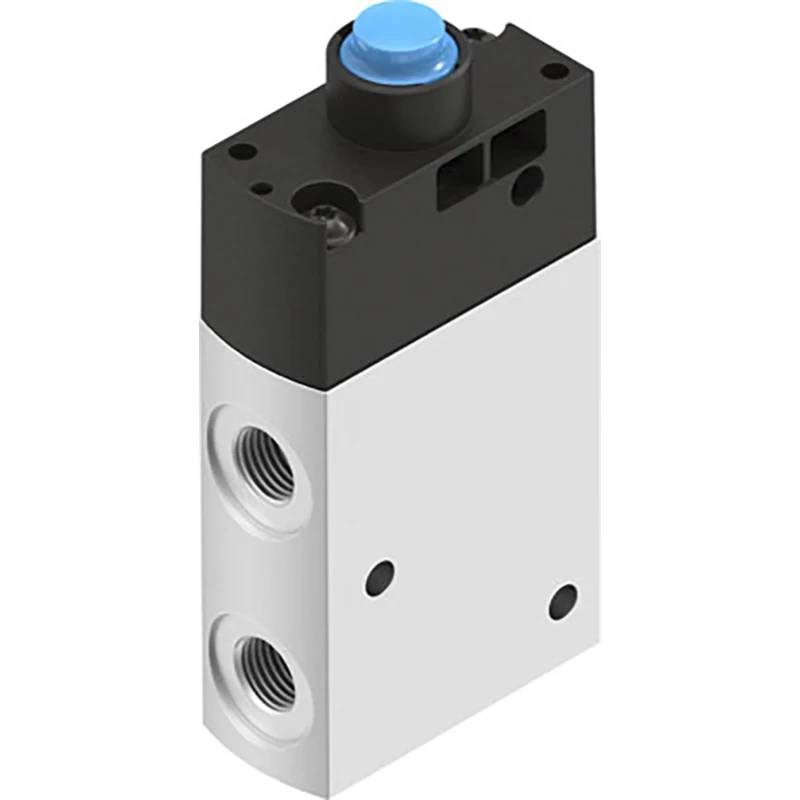

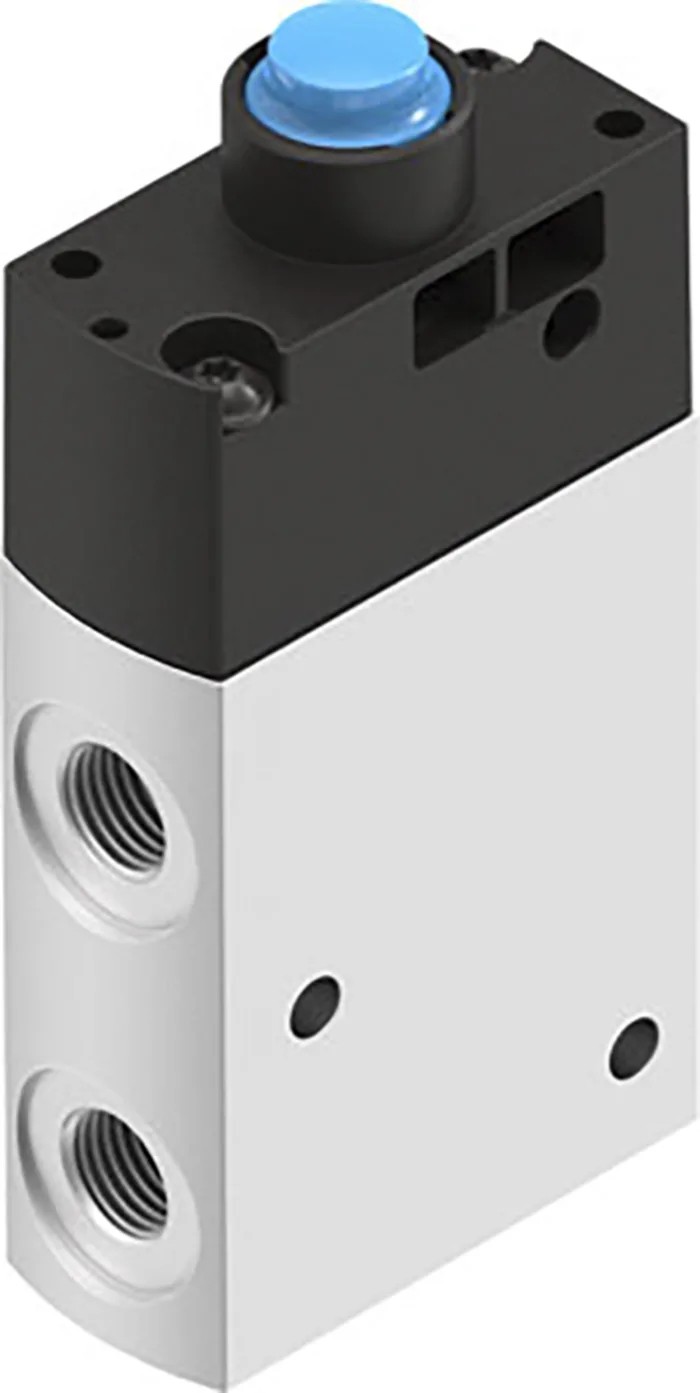

Festo Plunger Pneumatic Manual Control Valve VMEF Series, G 1/8, 10 Bar, Aluminium Alloy Body VMEF-STCZ-M32-M-G18
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 77.2mm |
| Length | 43.7mm |
| Model | VMEF-STCZ-M32-M-G18 |
| Width | 20mm |
| Series | VMEF |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +60°C |
| Thread Size | 1/8 in |
| Port Type | Pneumatic |
| Number of Positions | 2 |
| Port Size | G 1/8 |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 750L/min |
| Control Mechanism | Plunger |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
Key Features
- This 3/2-way valve is monostable, featuring normally open/closed functions.
- The valve body is made from durable aluminium alloy for long service life.
- It operates within a temperature range from -10°C to +60°C for versatile industrial use.
- The valve includes a mechanical spring for reliable operation and allows vacuum operation.
- Compact dimensions of 77.2mm height, 43.7mm length, and 20mm width offer easy integration.
- Ducted exhaust air design ensures clean pneumatic operation without emissions.
- Suitable for direct manual control and pneumatic pilot control.
- Reversible function allows flexible installation and use in different system configurations.
Product Description
Festo VMEF-STCZ-M32-M-G18 pneumatic manual control valve is a high-quality 3/2-way monostable valve with plunger control mechanism designed to manage pneumatic flows effectively. The valve features a G 1/8 port size and threaded connection standard G, supporting a maximum operating pressure of 10 bar and flow rates up to 750 L/min, making it suitable for demanding industrial pneumatic control applications.
Constructed with an aluminium alloy body, this valve combines robustness and corrosion resistance, vital for prolonged usage in industrial environments. It supports a broad operating temperature range from -10°C to +60°C, allowing it to function optimally in varied environmental conditions.
The valve operates normally open or closed states via a mechanical spring mechanism and is capable of vacuum operation. Its 3-position configuration includes 3 ports and 2 positions, enabling precise control. The ducted exhaust air system ensures emissions are controlled, making the valve suitable for clean pneumatic system designs.
Its compact design, measuring 77.2 mm in height, 43.7 mm in length, and 20 mm in width, facilitates installation in constrained spaces. The manual plunger actuation allows direct manual control or pneumatic piloting, offering flexibility in system design and operation.
This valve is manufactured in Brazil and complies with RoHS standards, assuring environmental and safety compliance. It is ideal for industrial, manufacturing, HVAC, and fluid power applications requiring reliable pneumatic manual control solutions.
This 3/2-way valve features a plunger control system for reliable pneumatic control. Aluminium alloy body material offers durability and corrosion resistance. It operates effectively within -10°C to +60°C temperature range.
Maximum operating pressure of 10 bar ensures high performance. The valve is reversible and supports vacuum operation. Compact size enables integration into tight spaces. Complies with RoHS standards for safety and environmental protection.
Explore the complete range of pneumatic manual control valves and industrial pneumatic components available on EnvMart to find the suitable products for your applications.
Explore more products in our Industrial Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
This model can handle a maximum flow rate of 750 L/min.
The valve has a height of 77.2 mm, a length of 43.7 mm, and a width of 20 mm.
It operates effectively within a temperature range from -10°C to +60°C.
This valve utilizes a plunger control mechanism for operation.
This valve features 3 ports and operates in 2 positions.
The body of this valve is made from aluminium alloy, providing durability and corrosion resistance.
Yes, the valve is capable of vacuum operation.
This model complies with RoHS standards for environmental and safety protection.
The valve has a pneumatic port type with a port size of G 1/8.
Yes, it is suitable for direct manual control as well as pneumatic pilot control.
This valve is manufactured in Brazil.
