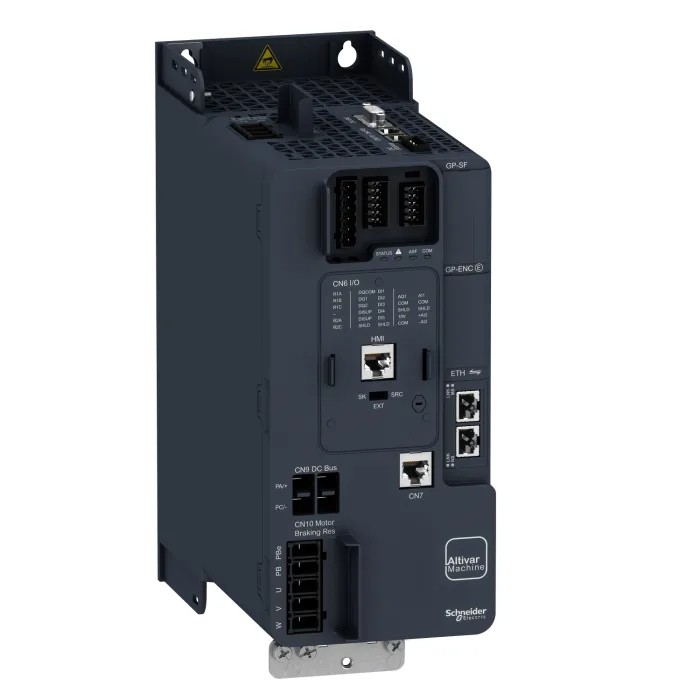

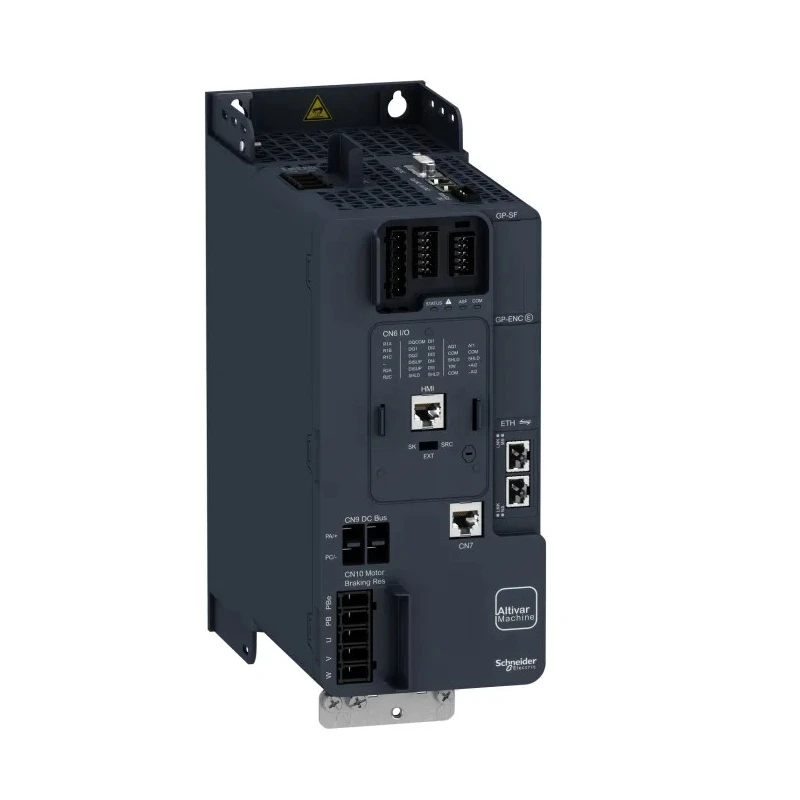

Schneider Electric Inverter Drive 7.5 kW 3 Phase Altivar Series 480V 25.6A ATV340U75N4E

Schneider Electric ATV340U75N4E Inverter Drive is a high-performance variable speed drive designed for industrial use with 7.5 kW power rating. It operates on 3 Phase AC supply with voltage ranging from 380V minimum to 480V maximum, delivering a maximum output current of 25.6 A. This Altivar series drive is suitable for controlling both synchronous and asynchronous motors, including reluctance and permanent magnet types.

The inverter features a cabinet mount type with compact dimensions of 110 mm length, 234 mm width, and 270 mm depth, and an IP20 rating for protection against solid objects.

It supports output frequency modulation from 0.1 Hz up to 599 Hz, allowing precise motor speed control. The drive can withstand operating temperatures from 0°C to 50°C under normal conditions and offers overload capacity with constant torque rating at 150% for 60 seconds and 180% for 2 seconds, ensuring robust motor performance under varying load demands.

Embedded options include Ethernet connectivity (for ATV340…E variants), expansion slots for encoder feedback, I/O modules, and fieldbus communications, facilitating integration into automation networks. Functional safety features like Safe Torque Off (STO) are embedded to enhance operational safety.

Compliance with international standards such as IEC, RoHS, TUV, UL, REACH, CSA, CE, C-Tick, and EAN certificates ensures quality and safety adherence. The product is part of Schneider Electric's Better World range, reflecting energy efficiency and sustainability efforts.

Designed for industrial automation applications requiring variable speed motor control. Compatible with a wide range of motors including reluctance and permanent magnet motors. Compact and durable design with IP20 rating suitable for cabinet installation.

Provides high overload capabilities supporting demanding production environments. Embedded communication options and safety functions for comprehensive control. Complies with multiple international safety and environmental standards.

Offers outstanding energy savings consistent with sustainability goals. Includes advanced features such as embedded web server and master/slave control functions. Easy integration with modern control systems through Ethernet and expansion slots.

Schneider Electric's ATV340U75N4E inverter drive enhances machine performance in manufacturing, HVAC, water treatment, and other industrial sectors requiring precise motor speed and torque control. Discover a wide range of Inverter Drives with varying power ratings and features in the EnvMart Industrial Automation category.
