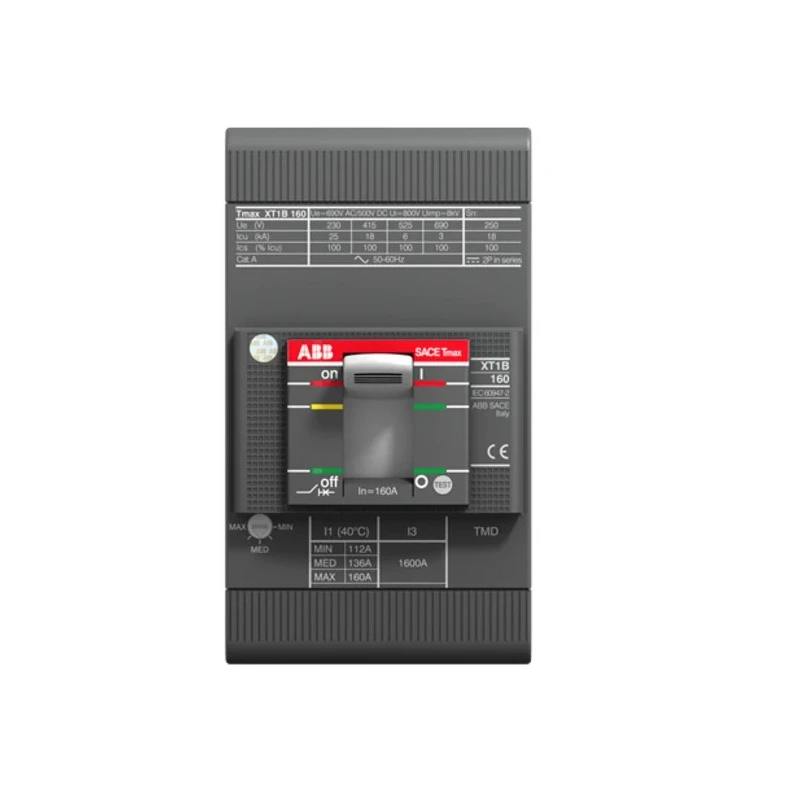

ABB Molded Case Circuit Breaker Tmax XT 3-Pole 160A Breaking Capacity 5 kA Fixed 1SDA067454R1 XT1H 160 TMD 160A FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 130mm |
| Model | 1SDA067454R1 XT1H 160 TMD 160A FF |
| Depth | 70mm |
| Width | 101.6mm |
| Mount Type | Fixed |
| Current Rating | 160A |
| Series | 1SDA06 |
| Terminal type | Screw |
| Breaking Capacity | 5kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 500V dc |
| Break Time | Instantaneous |
| Rated current (In) | 160 A In |
| Rated frequency (f) | 50/60 Hz |
| Rated voltage (Ur) | 690 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
Key Features
- Designed for electrical protection with thermomagnetic release type for quick response.
- Suitable for 50/60 Hz rated frequency operations.
- Rated AC voltage up to 690 V and DC voltage up to 500 V.
- Front terminal type with screw connections ensures secure mounting.
- Complies with IEC standards for reliable industrial use.
- Instantaneous break time for fast circuit interruption during fault conditions.
- Rated impulse withstand voltage of 8 kV ensures durability against surges.
Product Description
ABB 1SDA067454R1 XT1H 160 TMD 160A FF Molded Case Circuit Breaker is designed to provide reliable electrical protection in industrial, commercial, and manufacturing setups. This 3-pole breaker delivers a current rating of 160 A and a breaking capacity of 5 kA, making it suitable for medium voltage applications requiring efficient fault interruption.
Equipped with front screw terminals, this fixed mounting circuit breaker ensures robust installation with excellent electrical connectivity. It supports rated AC voltages up to 690 V and DC voltages up to 500 V, enabling versatile usage across various systems. The thermomagnetic release mechanism allows for immediate fault response, safeguarding electrical circuits effectively.
With adherence to IEC standards, this breaker guarantees high safety and performance reliability. Its compact form factor - 130 mm height, 101.6 mm width, and 70 mm depth - allows for convenient integration into panel boards and control systems.
The instantaneous break time feature facilitates rapid disconnection during fault incidents, minimizing damage to equipment. Additionally, the rated impulse withstand voltage of 8 kV ensures strong resistance to transient surges common in industrial environments.
Designed for precise electrical protection with thermomagnetic release type. Supports 3-pole fixed mounting for secure panel installation. Rated current of 160 A with a breaking capacity of 5 kA for demanding applications.
Compatible with 50/60 Hz frequency and rated AC/DC voltages up to 690 V and 500 V respectively. Conforms to IEC standards, ensuring international quality compliance. Compact dimensions allow for flexible use in various enclosures and setups.
Instantaneous break time improves circuit safety during fault conditions. Rated impulse withstand voltage of 8 kV provides surge resistance.
This product is ideal for electrical distribution systems in industrial plants, manufacturing units, HVAC controls, and other commercial electrical systems requiring dependable circuit protection.
Explore the full range of ABB Molded Case Circuit Breakers and related electrical components available through EnvMart for professional industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This molded case circuit breaker has a current rating of 160 A.
The breaking capacity of this model is 5 kA.
It supports rated AC voltages up to 690 V and DC voltages up to 500 V.
This model features front screw terminals for secure connections.
The dimensions are 130 mm in height, 101.6 mm in width, and 70 mm in depth.
It operates at a rated frequency of 50/60 Hz.
The break time is instantaneous, allowing for rapid disconnection during faults.
It complies with IEC standards, ensuring reliable performance in industrial applications.
The rated impulse withstand voltage is 8 kV, providing strong resistance to surges.
This unit supports fixed mounting, ensuring secure installation.
The country of origin for this product is Italy.
It is suitable for electrical distribution systems in industrial plants, manufacturing units, and HVAC controls.
