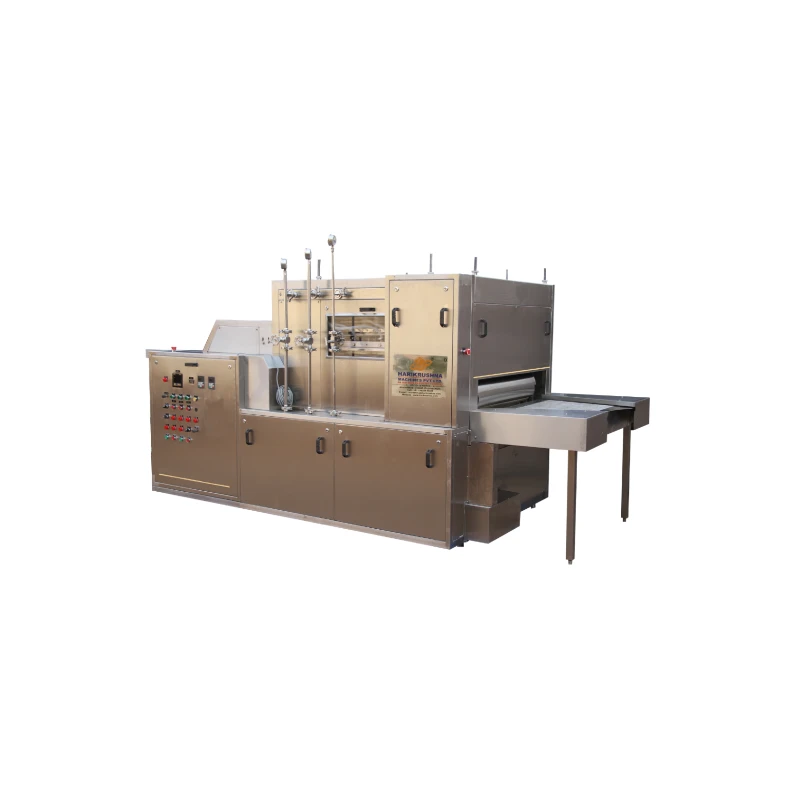

Automatic Linear Vial Washing Machine HMPLLTBW240
Specifications
| Applications | Industrial |
|---|---|
| Net Weight | 2400 kg Approx. |
| Dimensions | 2900 mm (L) x 2500 mm (W) x 1130 mm (H) Approx. |
| Tank Capacity | SS 316 60 Liter |
| Air consumption | 2.5 Kg/cm / 20 CFM |
| Output Speed | Up to 120 Bottles/Minute |
| Working Height | 875 50 mm Adjustable |
| Wash Cycle | 3 Inner + 1 Outer + 1 Air |
| Water Consumption | 400 Liters / Hour / Cycle |
| MOC & Type of Bottle | PET/GLASS Round/Flat Bottles (with the help of change parts) |
| Volume of Bottles | 30 ml to 250 ml |
| No. of Pockets | 20 |
| Electrical Power Supply | Main Motor 1HP / 415 V AC / 50 Hz Heater 3 KW Conveyor 0.5HP / 415 V AC / 50 Hz |
| Cycle Time | 3.5 Second for each wash + 1.5 Second for travelling |
Key Features
- The Linear vial washing Machine is made compact & versatile as per GMP norms. The structure is made of MS and cladded with SS304 The contact parts are made of Stainless steel 316L.
Product Description
Automatic Linear Vial Washing Machine Model HMPLLTBW240 The Automatic Linear Tunnel Type Bottle Washing Machine consists of the main structure, bottle holding pocket, in-feed tray, out-feed wire mesh conveyor (OPTIONAL), washing nozzle, PLC & HMI, electrical panel, motor, pumps with tank & AC drives.The linear tunnel type washing machine is manufactured or developed accordance with GMP standards.Linear tunnel type washing machine structure made by MS cladding with SS 304 with argon welded.SS Tanks & trays made from SS 316 by argon welded with round corner.SS pump made from SS 316 with mechanical seal Mono-block pump.SS filter housing made from SS 316.All nozzles made from SS 316.Imported gear motor for main drive and conveyor.AC Variable drives for Main drive and conveyor.Pumps with tank (60 Liter each) 2 Nos.
