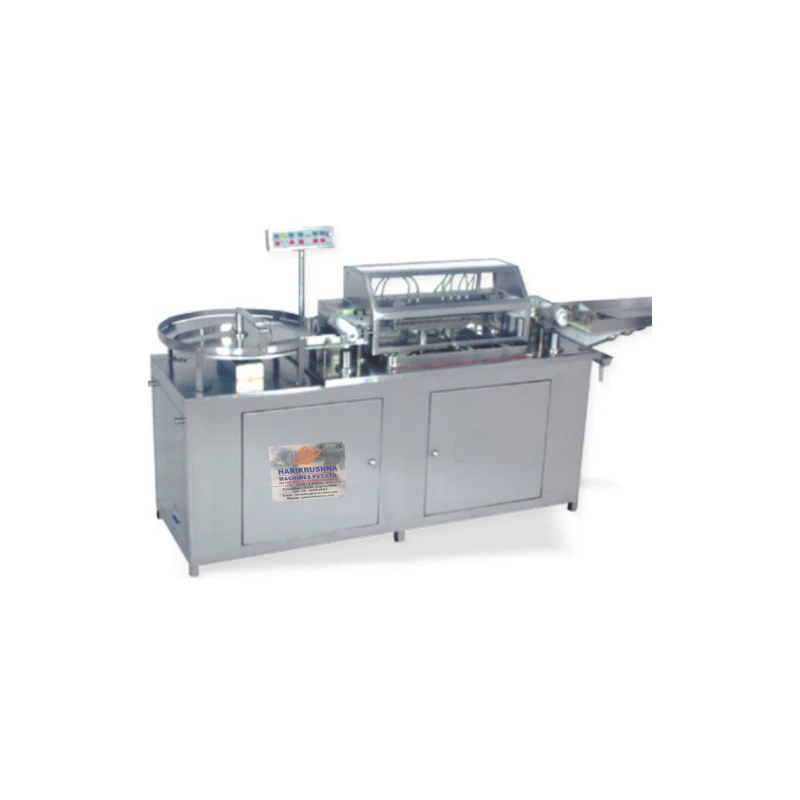

Automatic Linear Vial Washing Machine
Specifications
| Power Supply | 3 Phase + Neutral Power Supply3 Phase + Neutral + Earthing / 415 V AC / 50Hz+ Earthing / 415 V AC / 50Hz |
|---|---|
| Applications | Industrial |
| Net Weight | 600 Kg Approx. |
| Dimensions | (L x H x W)3265mm (L) x 1835 mm (W) x 850mm (H) Approx. |
| Vial Size | 2 ml to 30 ml Round Glass Vials |
| Air consumption | 5 CFM |
| Output Speed | 60 to 200 Vials/Minute (Speed depend on product size) |
| Air Supply | 4 to 6 Kg/Cm2 |
| Working Height | 875 50MM Adjustable |

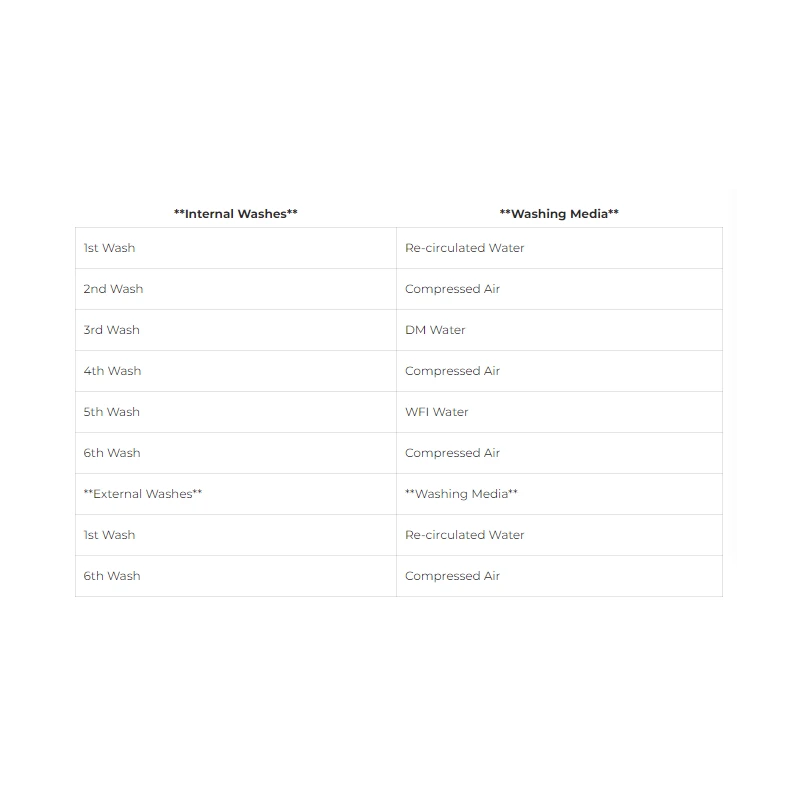

| Wash Cycle | 7 Wash |
| Change Parts | In-feed Screw In-feed Inverter In-feed Start Wheel Out-feed Screw Out-feed Inverter Out-feed Star Wheel |
| Power Consuption | 1.5HP Main Machine/ 2.25HP Pumping Station/ 0.25HP Loading Platform) |
Key Features
- The Linear vial washing Machine is made compact & versatile as per GMP norms. The structure is made of MS and cladded with SS304 The contact parts are made of Stainless steel 316L.
Product Description
Automatic Linear Vial washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL)The structure is made of MS and cladded with SS304The contact parts are made of Stainless steel 316L.Rigid vibration free construction for trouble free performance.The washing section if totally covered with acrylic cabinet which is easy to clean.Absolutely simple machine to operate.All exposed parts are of SS 304 or hard chrome plated or brass for a corrosion free long life.The six sets of nozzles enter into the vials mouth during the washing operation ensuring penetration of washing Medias to the core a perfect washing principle.Fixed top nozzles each washing station ensures external washing of vials at the same time of internal washing.The flow of washing Medias stop during the indexing of chain, saving straight 25% on utilities.The system of solenoid valves and optional tanks, pumps and filters are engineered for long trouble free life & fool proof operation.Four inner wash (Included one air wash , two inner wash with recycled tray) & one outer wash
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output speed ranges from 60 to 200 vials per minute, depending on the product size.
It is designed to wash round glass vials ranging from 2 ml to 30 ml in size.
The approximate dimensions are 3265 mm in length, 1835 mm in width, and 850 mm in height.
It requires a 3-phase power supply with neutral and earthing, operating at 415 V AC and 50 Hz.
The washing machine is capable of performing 7 wash cycles during its operation.
The net weight is approximately 600 kg.
The air consumption is 5 CFM.
The working height is adjustable at 875 mm, with a tolerance of 50 mm.
It includes a main structure, washing nozzles, pumps, a tank, filter housing, pneumatic components, and an electrical panel.
The air supply should be between 4 to 6 Kg/Cm2.
The contact parts are made of stainless steel 316L, while the structure is cladded with SS304.
