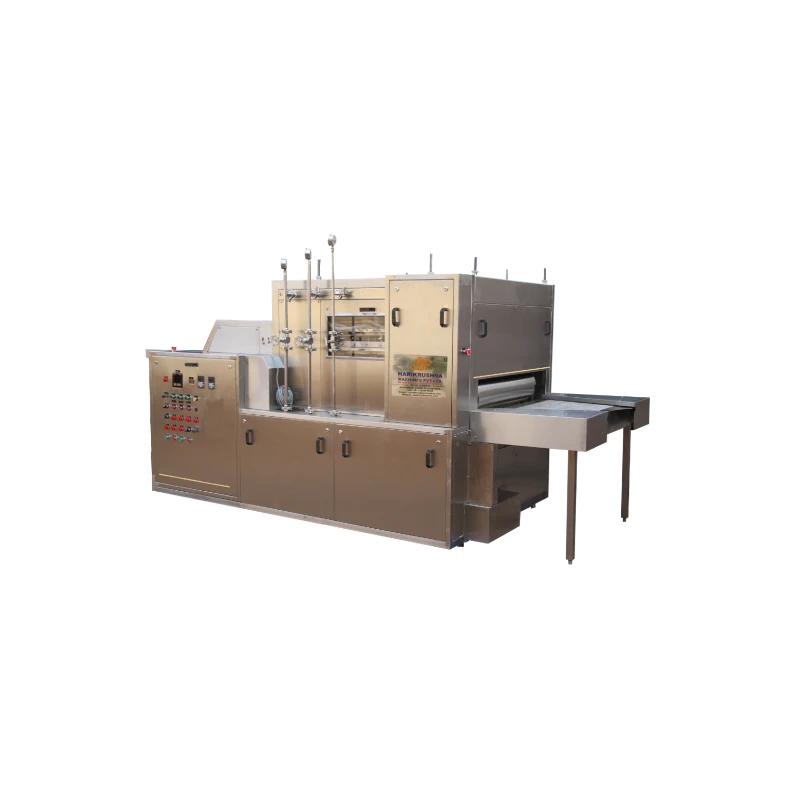

Automatic Linear Vial Washing Machine HMPLLTBW120
Specifications
| Applications | Industrial |
|---|---|
| Net Weight | 1400 kg Approx. |
| Dimensions | 1150 mm (L) x 3000 mm (W) x 2000 mm (H) Approx. |
| Tank Capacity | SS 316 60 Liter |
| Air consumption | 2.5 Kg/cm / 20 CFM |
| Output Speed | Up to 120 Bottles/Minute |
| Working Height | 875 50 mm Adjustable |

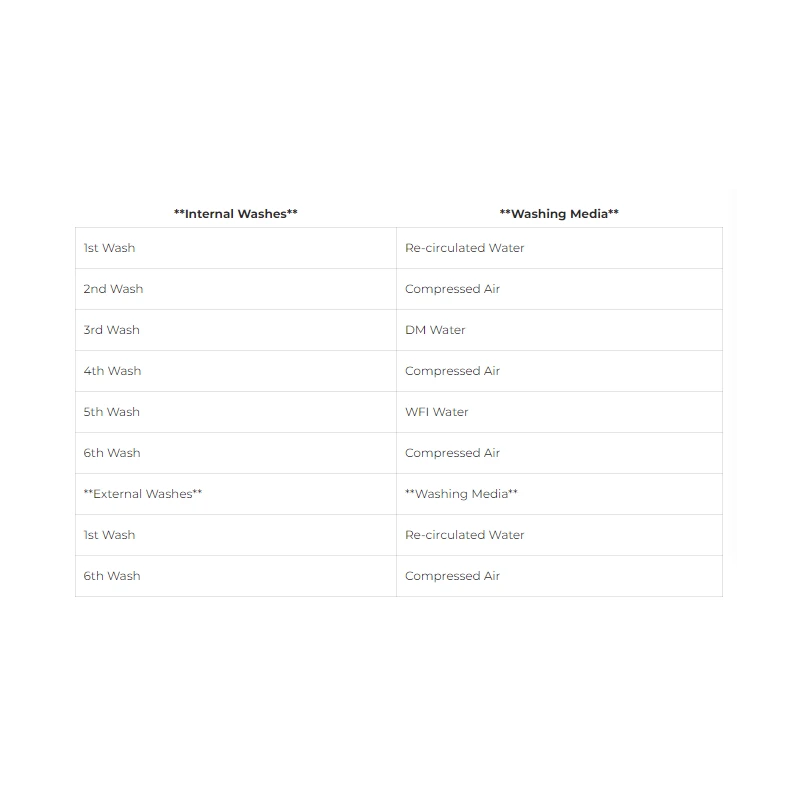

| Wash Cycle | 3 Inner + 1 Outer + 1 Air |
| Water Consumption | 400 Liters / Hour / Cycle |
| MOC & Type of Bottle | PET/GLASS Round/Flat Bottles (with the help of change parts) |
| Volume of Bottles | 30 ml to 250 ml |
| No. of Pockets | 10 |
| Electrical Power Supply | Main Motor 1HP / 415 V AC / 50 Hz Heater 3 KW Conveyor 0.5HP / 415 V AC / 50 Hz |
| Cycle Time | 3.5 Second for each wash + 1.5 Second for travelling |
Key Features
- The Linear vial washing Machine is made compact & versatile as per GMP norms. The structure is made of MS and cladded with SS304 The contact parts are made of Stainless steel 316L.
Product Description
Automatic Linear Vial Washing Machine Model HMPLLTBW120 The Automatic Linear Tunnel Type Bottle Washing Machine consists of the main structure, bottle holding pocket, in-feed tray, out-feed wire mesh conveyor (OPTIONAL), washing nozzle, PLC & HMI, electrical panel, motor, pumps with tank & AC drives.The linear tunnel type washing machine is manufactured or developed accordance with GMP standards.Linear tunnel type washing machine structure made by MS cladding with SS 304 with argon welded.SS Tanks & trays made from SS 316 by argon welded with round corner.SS pump made from SS 316 with mechanical seal Mono-block pump.SS filter housing made from SS 316.All nozzles made from SS 316.Imported gear motor for main drive and conveyor.AC Variable drives for Main drive and conveyor.Pumps with tank (60 Liter each) 2 Nos.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output speed of the Automatic Linear Vial Washing Machine HMPLLTBW120 is up to 120 bottles per minute.
The dimensions of the machine are approximately 1150 mm in length, 3000 mm in width, and 2000 mm in height.
It can wash PET and glass round or flat bottles with the help of change parts.
The main motor requires 1HP at 415 V AC and 50 Hz, while the heater requires 3 KW and the conveyor needs 0.5HP at the same voltage and frequency.
Each wash cycle takes 3.5 seconds, plus an additional 1.5 seconds for travelling.
The approximate net weight of this model is 1400 kg.
This machine features 10 pockets for holding bottles during the washing process.
The air consumption is 2.5 Kg/cm or 20 CFM.
The working height is adjustable to 875 ± 50 mm.
The wash cycle consists of 3 inner washes, 1 outer wash, and 1 air wash.
