Crouzet Pneumatic Solenoid Valve 1/8 in Port Size Manifold Mount Pilot Actuation 8 Bar Maximum Operating Pressure 81516200

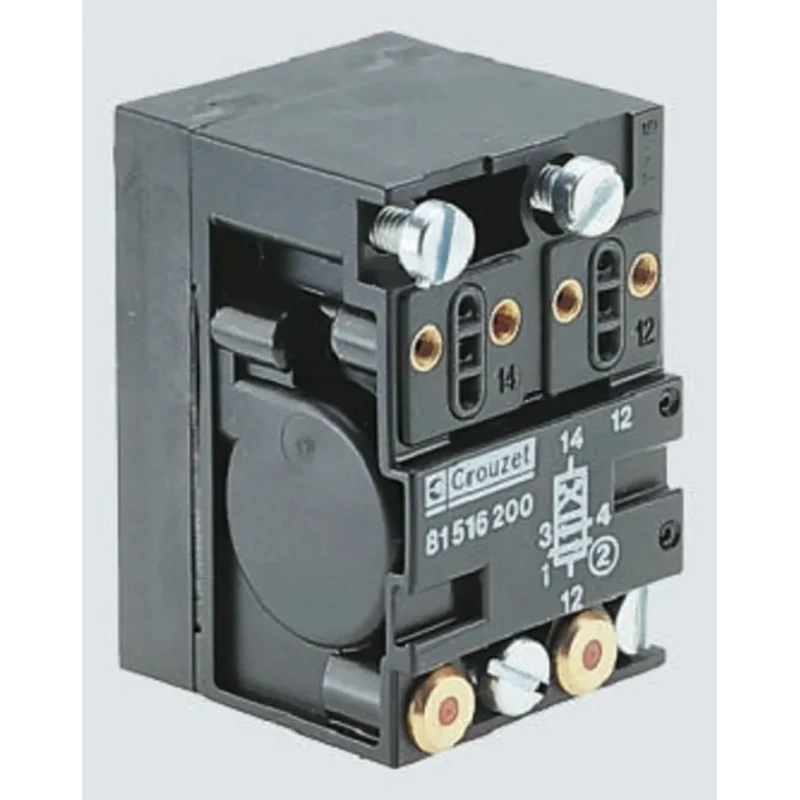

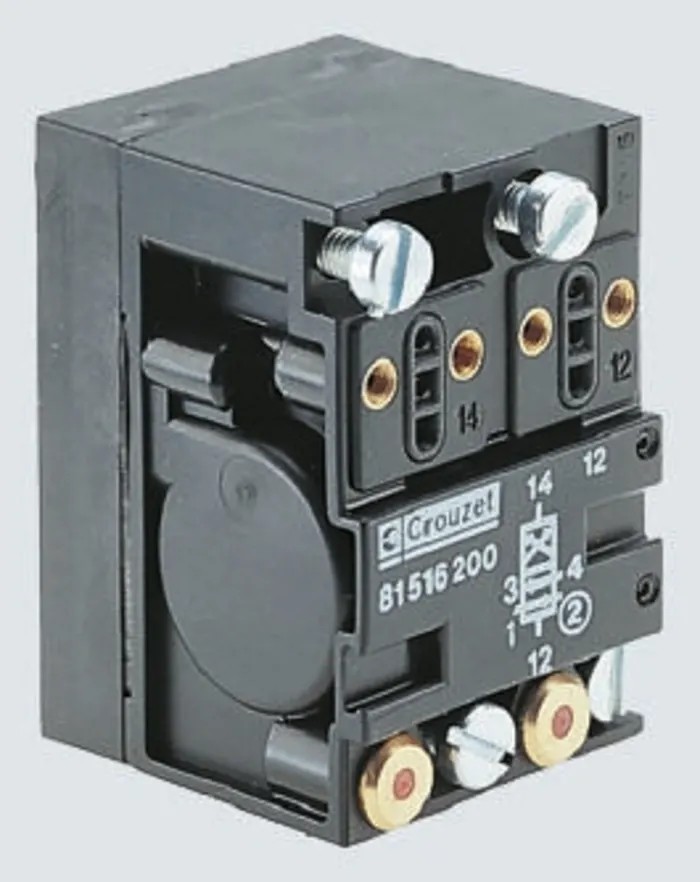

Crouzet 81516200 Pneumatic Solenoid Valve from the 81 Series is a precision-engineered valve designed for manifold mounting in pneumatic control systems. This pilot-actuated valve is compact with a width of 17.5mm and supports a 1/8 inch port size enabling integration in space-constrained environments.

The valve allows multiple functions including 3/2 Normally Closed and Normally Open configurations, as well as 4/2 double and single pilot spring return positions, providing flexibility for complex pneumatic applications. It features low power consumption at 1 watt, enhancing energy efficiency in industrial automation.

It has a maximum operating pressure rating of 8 bar with a maximum flow capacity of 400NL/min, suitable for controlling medium pressure pneumatic systems. Operating temperature ranges from -10°C to 50°C, making it reliable in various industrial atmospheres.

The minimum pilot pressure is 3.5 bar, providing quick and consistent valve actuation. RoHS compliance ensures the valve meets hazardous substances regulations, making it environmentally friendly. Manufactured in France, this product is crafted with high-quality materials and engineering standards.

This valve is ideal for applications in industrial automation, laboratory instrumentation, fluid control systems, and manufacturing plants that require precise pneumatic valve control. It supports easy installation and maintenance due to its modular design and suitability for DIN rail mounting.

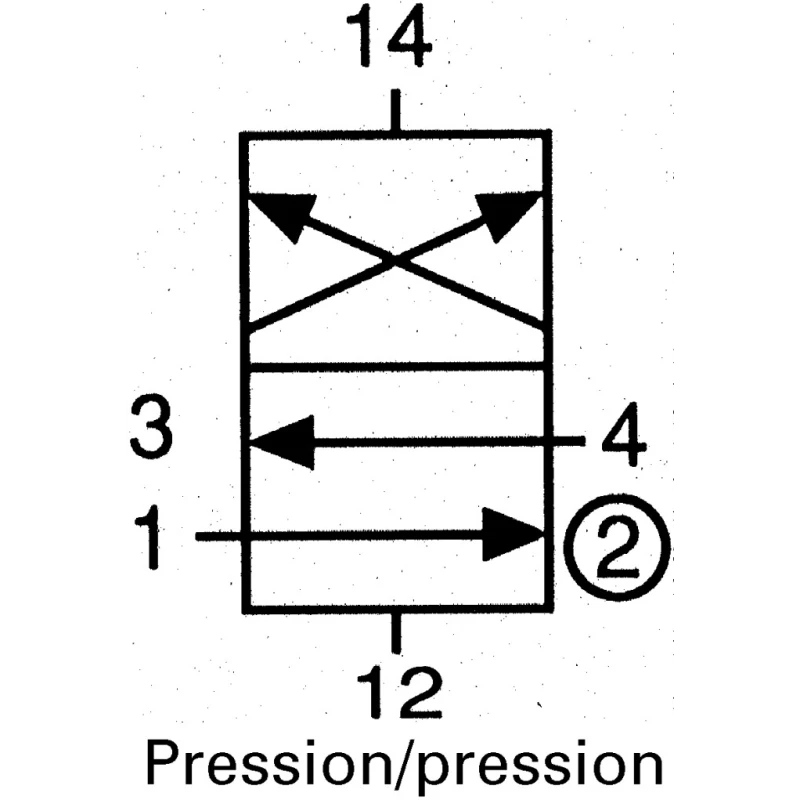

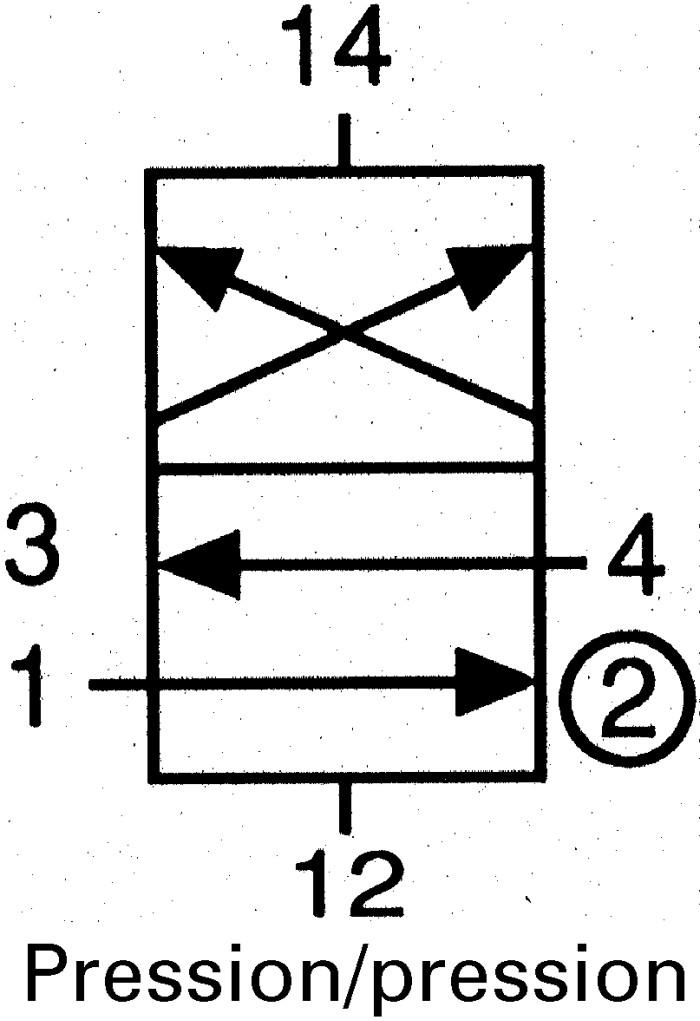

Suitable for manifold assembly and DIN rail mounting with compact 17.5mm width. Operates with a maximum operating pressure of 8 bar and maximum flow rate of 400NL/min. Valve functions include 3/2 NC, 3/2 NO, 4/2 Double Pilot, and 4/2 Single Pilot Spring Return.

Designed for reliable operation from -10°C to 50°C operating temperature range. Low power consumption of 1 watt ensures energy efficiency in automated systems. Minimum pilot pressure required is 3.5 bar for optimal actuation performance.

Features 4 ports and 2 positions supporting a variety of pneumatic circuits. Complies with RoHS standards assuring environmental safety. Manufactured in France with modular design for easy maintenance and rapid installation.
