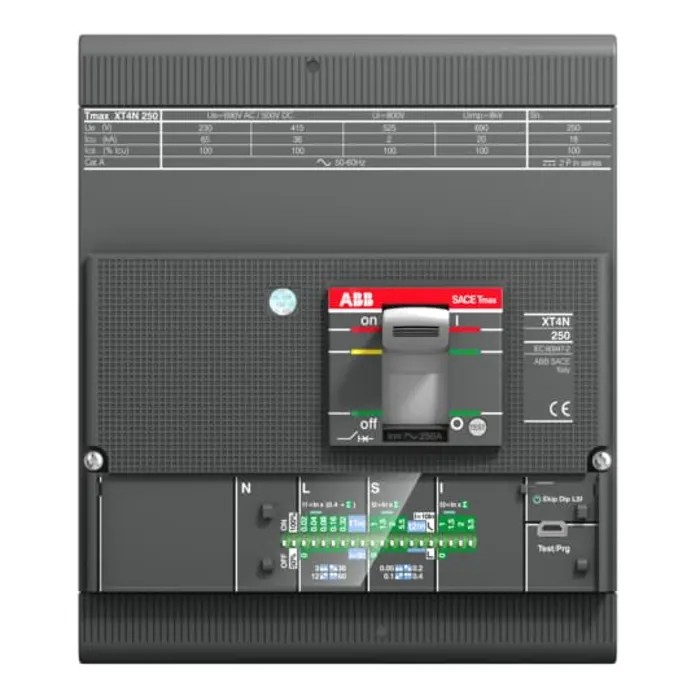

ABB Molded Case Circuit Breaker 4-Pole 100A 690V AC Breaking Capacity 150kA Fixed XT4L

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker 4-Pole 100A 690V AC Breaking Capacity 150kA Fixed XT4L



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	XT4L
Brand	ABB
Height	160mm
Model	XT4L
Depth	82.5mm
Width	140mm
Mount Type	Fixed
Current Rating	100A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	150kA
Number of Poles	4
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Short circuit performance level	L

Key Features

This circuit breaker is rated for 100A current and operates at 690V AC.
It features a robust breaking capacity of 150 kiloamperes to ensure safety during faults.
The device includes a lever-type reset actuator for ease of operation.
Constructed with solid-state tripping mechanism for reliable performance.
Meets international standards including CE, IEC, and RoHS certifications.
Designed as a Better World product for sustainability with disassembly-friendly design.
Manufactured in Italy to exacting quality standards.
Four-pole configuration with fixed terminals optimizes installation stability.

Product Description

ABB XT4L Molded Case Circuit Breaker 4-Pole 100A is engineered for high performance and safety in electrical distribution systems operating at 690V AC. It is designed with a fixed mount type and fixed terminals to provide reliable, secure installation in industrial and commercial switchgear.

This model, part of the XT4L range and 1SDA06 series, delivers a breaking capacity of 150kA, capable of interrupting high fault currents instantaneously. Its solid-state tripping mechanism ensures precise and dependable operation, while the lever reset actuator facilitates user-friendly resetting after tripping events.

The circuit breaker is compactly sized with dimensions of 160mm height, 140mm width, and 82.5mm depth, easily integrating into existing electrical panels. It adheres to stringent standards including CE, IEC, and RoHS, endorsing its compliance with international safety and environmental regulations.

Manufactured in Italy, this Better World marked product is designed for disassembly, emphasizing ABB's commitment to sustainability and environmental responsibility. The unit's four poles offer thorough protection for multi-phase electrical circuits.

Rated operational voltage: 690V AC with insulation voltage of 1000V. Lever-reset actuator enhances maintenance convenience. Solid state release type EL for tripping functionality. Short circuit performance level L guarantees reliable fault protection.

Mounting is fixed to ensure steady installation. Better World design minimizes environmental impact. 4-pole configuration ensures balanced circuit protection. Complies with CE, IEC, and RoHS standards. Compact and efficient design for industrial use.

This ABB Molded Case Circuit Breaker is ideally suited for electrical distribution and protection in industrial, manufacturing, and commercial building electrical systems. Explore more circuit breakers and electrical protection solutions in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 100A, suitable for various electrical distribution applications.

It features a robust breaking capacity of 150kA, allowing it to interrupt high fault currents effectively.

The rated operational voltage for this unit is 690V AC, making it suitable for high voltage applications.

This model is a 4-pole circuit breaker, providing protection for multi-phase electrical circuits.

It is equipped with a solid-state tripping mechanism, ensuring precise and reliable operation during faults.

The dimensions are 160mm in height, 140mm in width, and 82.5mm in depth, allowing for easy integration into electrical panels.

It includes a lever-type reset actuator, which facilitates easy resetting after a tripping event.

Yes, it complies with CE, IEC, and RoHS standards, ensuring adherence to safety and environmental regulations.

It is manufactured in Italy, adhering to high-quality standards.

This unit features a fixed mount type, providing stable installation in industrial and commercial settings.

The short circuit performance level is rated as L, which guarantees reliable fault protection.

The Better World design emphasizes sustainability with a disassembly-friendly approach, reflecting the manufacturer's commitment to environmental responsibility.
