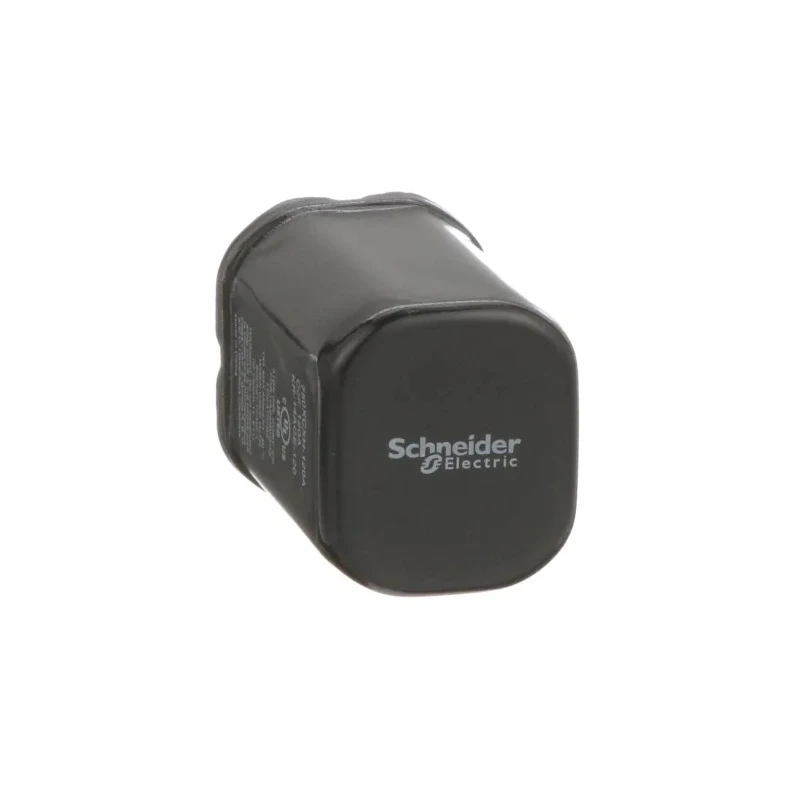

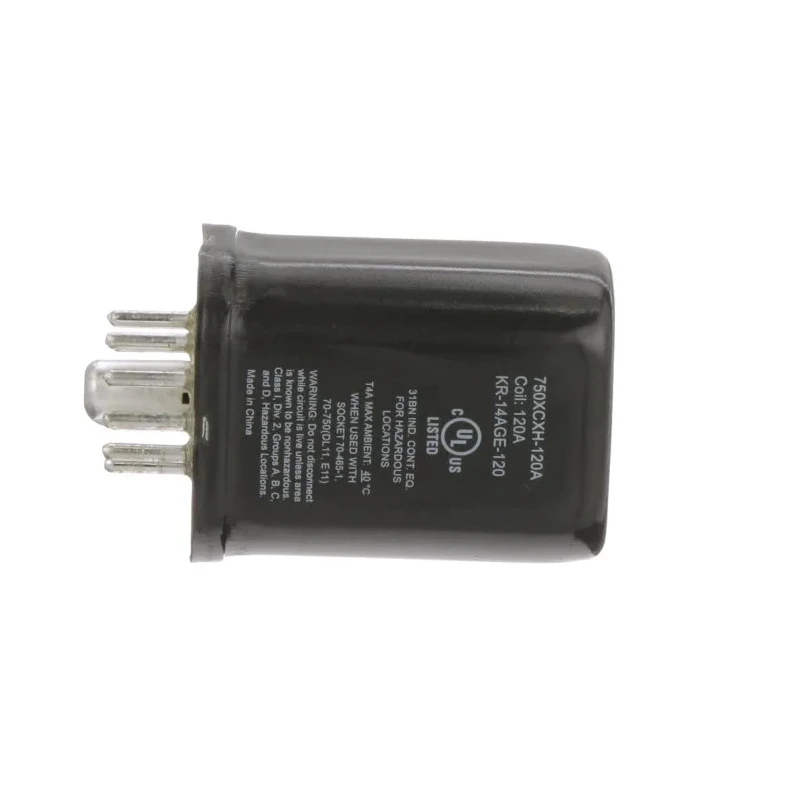

Schneider Electric Surface Power Relay 120V AC Coil 12A Switching Current 3PDT 750XCXH-120A
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | Schneider Electric |
| Height | 36.6mm |
| Length | 40.9mm |
| Model | 750XCXH-120A |
| Width | 40.9mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | 750X |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 1.7kΩ |
| Coil Voltage | 120V ac |
| Switching AC Voltage | 300V ac |
| Coil Power | 2W |
Key Features
- This relay provides reliable surface mounting installation.
- It belongs to the 750X series designed for industrial use.
- The plug-in terminal type ensures easy and secure connection.
- The device operates within a temperature range of -40°C to 55°C.
- It supports switching AC voltages up to 300V AC for versatile applications.
- The silver alloy contact material enhances conductivity and durability.
- Coil resistance is rated at 1.7 kΩ with power consumption of 2W.
- Complies with CSA and UL standards ensuring safety and quality.
Product Description
Schneider Electric 750XCXH-120A Surface Power Relay is an industrial-grade power relay designed for applications requiring a robust 3PDT contact configuration with a coil voltage of 120V AC and a switching current capacity of 12A.
This relay is part of the 750X series, specialized for reliable performance in automation and control systems. Its surface mount design and plug-in terminal type facilitate straightforward installation and maintenance.
Operating safely from -40°C to 55°C, this relay supports switching AC voltages up to 300V AC, making it suitable for diverse electrical and industrial control applications. The coil resistance of 1.7 kΩ and 2W coil power enhance efficiency and reduce power consumption.
Constructed with silver alloy contact material, the relay ensures low contact resistance and excellent conductivity, ideal for high-demand switching operations. It is certified under CSA and UL standards, confirming industrial safety and compliance.
The compact form factor with length and width at 40.9mm and height of 36.6mm allows integration into constrained spaces without sacrificing performance. Originating from Morocco, the relay is a reliable choice for controlling electrical circuits in manufacturing, automation, HVAC systems, and other industrial sectors.
This relay provides reliable surface mounting installation. It belongs to the 750X series designed for industrial use. The plug-in terminal type ensures easy and secure connection. The device operates within a temperature range of -40°C to 55°C.
It supports switching AC voltages up to 300V AC for versatile applications. The silver alloy contact material enhances conductivity and durability. Coil resistance is rated at 1.7 kΩ with power consumption of 2W. Complies with CSA and UL standards ensuring safety and quality.
The compact size with dimensions 40.9mm length, 40.9mm width, and 36.6mm height is suitable for various electrical systems.
For buyers seeking certified and efficient surface Power Relays for industrial and automation needs, the Schneider Electric 750XCXH-120A offers quality and robust performance. Explore more relay options and Schneider Electric products at EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 12A.
This model operates with a coil voltage of 120V AC.
The dimensions of the relay are 40.9mm in length, 40.9mm in width, and 36.6mm in height.
It operates within a temperature range of -40°C to 55°C.
The relay features a 3PDT (Three Pole Double Throw) contact configuration.
This relay supports switching AC voltages up to 300V AC.
It utilizes a plug-in terminal type for easy and secure connections.
The coil resistance is rated at 1.7 kΩ.
The contacts are made of silver alloy, which enhances conductivity.
It complies with CSA and UL standards, ensuring safety and quality.
The coil power consumption is rated at 2W.
This relay is manufactured in Morocco.
