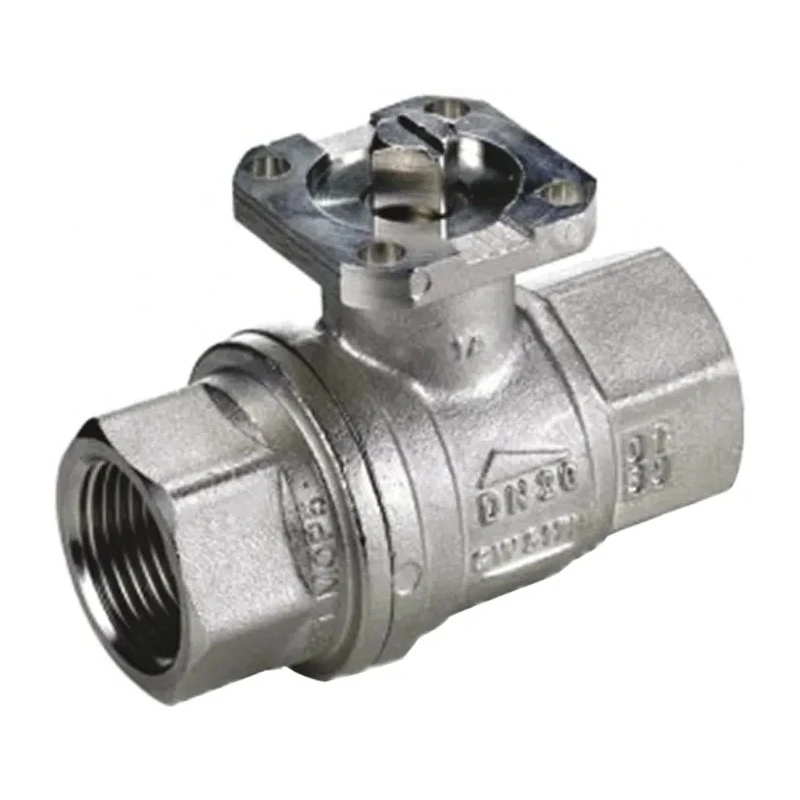

RS PRO Nickel Plated Brass Threaded Threaded Full Port Ball Valve, BSP 40 bar Pressure Rating 1 to 2 in Port Size 812-5255

RS PRO 812-5255 Nickel Plated Brass Threaded Threaded Full Port Ball Valve is designed for reliable industrial and commercial fluid control systems requiring excellent flow capacity and robust valve construction.

Equipped with a full port opening to DIN 3357 standards, this ball valve optimizes flow performance while minimizing friction losses, ideal for water, air, and various industrial fluids.

The valve body is crafted from hot forged, nickel plated brass, which provides superior corrosion resistance and mechanical strength in demanding environments. Its blowout-proof stem and reinforced PTFE ball seats with flexible-lip design automatically compensate for wear, ensuring long-term leak-tight operation with no metal-to-metal moving parts.

With an operating temperature range from -20°C to +70°C and a shell rating supporting 40 bar pressure, the valve is suitable for many HVAC, manufacturing, agricultural, and water treatment applications. The BSP threaded inlet and outlet connections facilitate straightforward integration into piping systems.

The valve also features an ISO 5211 actuator mounting pad for easy attachment of electric or pneumatic actuators without the need for additional brackets or couplings. Chrome plated brass ball includes a rinse hole for enhanced durability and maintenance-free operation. The product is manufactured entirely in Italy following EN 12165 and EN 12164 brass standards ensuring consistent quality.

Constructed with a nickel plated brass body for durability and corrosion resistance. Full port design ensures maximum flow with minimal pressure drop. Operates safely under a maximum pressure of 40 bar (600 PSI). Threaded BSP inlet and outlet connections facilitate easy installation.

Suitable for operating temperatures ranging from -20°C to 70°C. Features blowout-proof nickel plated brass stem with dual FPM O-rings for enhanced safety. Reinforced PTFE self-lubricating ball seats with wear compensation design improve longevity.

Compliant with EN 10226-1 and ISO 228 parallel female by female thread standards. Includes ISO 5211 actuator mounting pad allowing direct mounting of electric and pneumatic actuators. Manufactured in Italy with premium brass materials per EN 12165 and EN 12164 specifications.

This valve is an excellent choice for industrial valves and valve fittings category users demanding reliable and maintenance-free Ball Valves with high flow and pressure capabilities. Explore more RS PRO industrial valve products and accessories on EnvMart.
